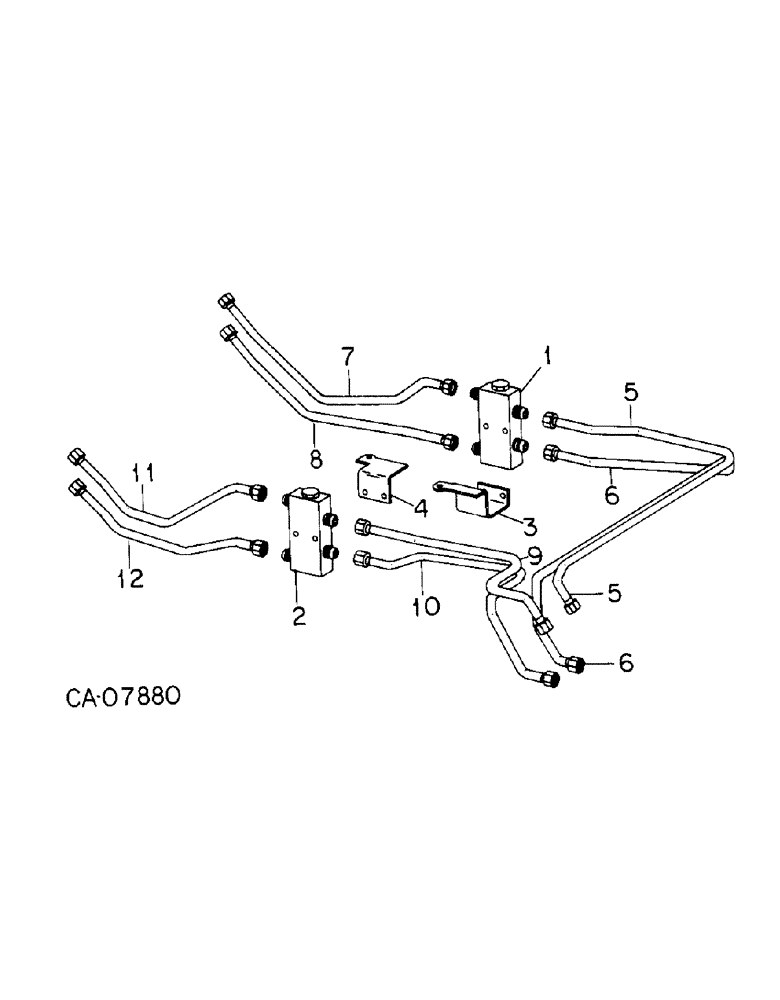

Запчасти Case IH 7288 (10-33) - HYDRAULICS, ALTERNATING CHECK VALVE, FOR TRACTORS WITH SECOND AND/OR THIRD AUXILIARY VALVE (07) - HYDRAULICS

1

142864C95

VALVE

ASSY, alternating check, For second aux valve

1шт.

2

142864C95

VALVE

ASSY, alternating check, For third aux valve

1шт.

3

148884C2

BRACKET

alternating check LH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

148883C1

BRACKET

alternating check RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

148875C2

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

6

148877C2

HYD TUBE,0.625" OD, 609.9, 476 mm Length

TUBE ASSY, 2nd valve drop

1шт.

7

148876C1

HYD TUBE

TUBE ASSY, alt check valve raise LH

1шт.

8

148878C1

HYD TUBE

TUBE ASSY, alt check valve drop LH

1шт.

9

148879C1

HYD TUBE

TUBE ASSY, third valve raise

1шт.

10

148881C1

HYD TUBE

TUBE ASSY, third valve drop

1шт.

11

148880C1

TUBE,0.625" OD, 442.871 mm Length

ASSY, alt check valve raise RH

1шт.

12

148882C1

HYD TUBE,0.625" OD, 392.55, 55.88 mm Length

TUBE ASSY, alt check valve drop RH

1шт.
