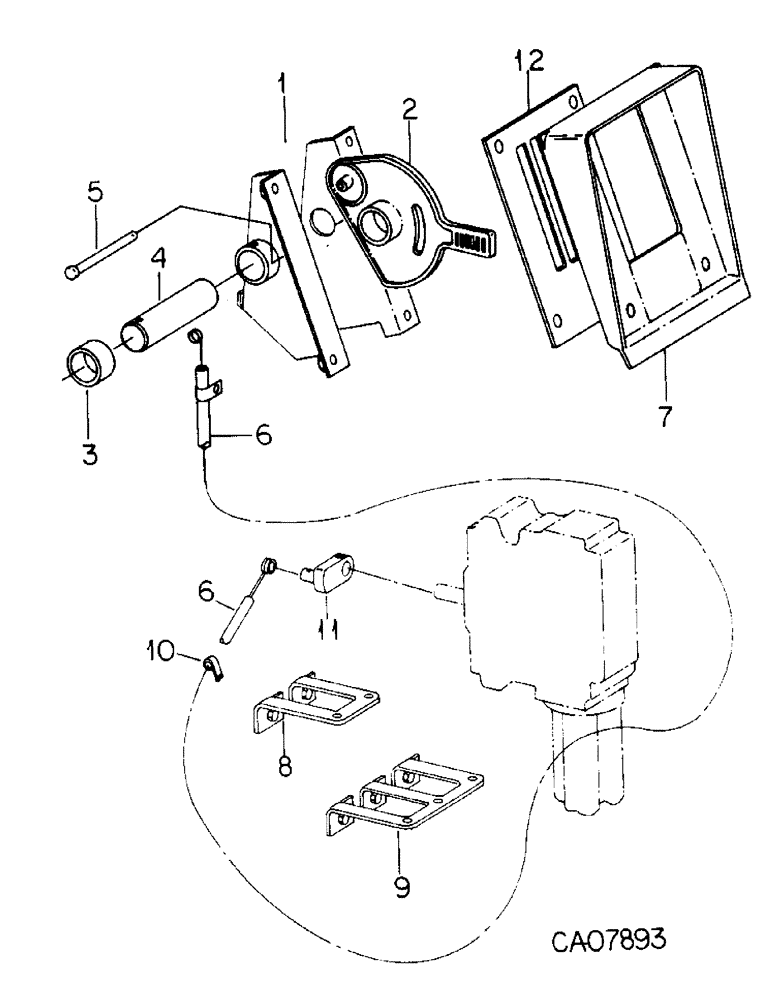

Запчасти Case IH 7288 (10-31) - HYDRAULICS, AUXILIARY VALVE FLOW CONTROLS (07) - HYDRAULICS

1

1251749C1

BRACKET

ASSY, sector mounting

1шт.

2

137901C1

SECTOR

flow control, black, first aux valve

1шт.

2

1281557C1

SECTOR

flow control, green, second aux valve

1шт.

2

139214C1

SECTOR

flow control, blue, third aux valve

1шт.

2

139215C1

SECTOR

flow control, tan, fourth aux valve

1шт.

3

139023C1

SPACER

flow control spacer, (2) required w/two aux valves, (1) required w/three aux valves

1шт.

4

137904C1

SHAFT

sector operating

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

5

Q3552

PIN

1/4 x 3.250 pln hd type 1

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

143989C1

CABLE

ASSY, flow control operating, (1) required per aux valve

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

544678R1

NUT

U-type speed

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

no. 10 x 3/4 znp p/hdcr mach

1шт.

7

1251787C2

COVER

flow control

1шт.

30301R1

SCREW,Cross Pan Hd, M8 x 20

M8 x 20MM znp p/hdcr mach

4шт.

8

139149C1

BRACKET

ASSY, control cable mtg lower, (1) required w/two aux valves, (2) required w/four aux valves

1шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 pln class 8.8, 2 required per bracket

1шт.

9

139150C1

BRACKET

ASSY, control valve mtg lower, For three aux valves

1шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 pln class 8.8

3шт.

10

139029C2

CLIP

flow control cable, one required per cable

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

11

139030C1

LEVER

ASSY, flow control valve, 1 required per valve

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

1259597C1

PLATE

flow control cover

1шт.
