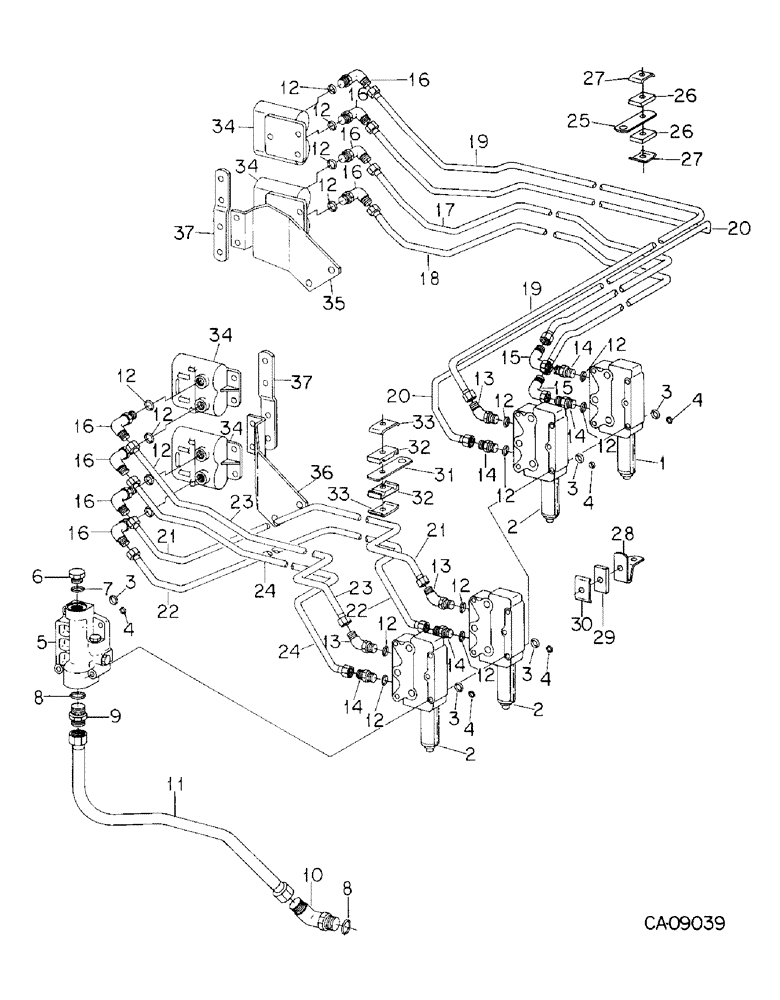

Запчасти Case IH 7288 (10-20) - HYDRAULICS, TWO, THREE AND FOUR AUXILIARY VALVES (07) - HYDRAULICS

1

1285879C92

VALVE

ASSY, motor control, For serviceable components see motor control valve this group

1шт.

2

1285880C91

VALVE

ASSY, auxiliary control, (1) required w/two aux valves, (2) required w/three aux valves, (3) required w/four aux valves, For serviceable components see aux control valve this group

1шт.

3

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32, (4) required between each valve, (3) required w/end cover

19шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 class 6, (2) required between each valve & end cover

10шт.

5

224507C92

COVER

ASSY, auxiliary valve end, For serviceable components see aux valve end cover this group

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

2шт.

30477R1

BOLT,M10 x 1.5 x 130mm, Cl 8.8

M10 x 130 pln class 8.8

2шт.

1271011C1

STUD

M10 x 195 pln 10.9, For 2 aux valve

2шт.

1271012C1

STUD

M10 x 240 pln 10.9, For 2 or 3 aux valve

2шт.

1271013C1

STUD

M10 x 285 pln 10.9, For 3 or 4 aux valve

2шт.

1271014C1

STUD

M10 x 320 pln 10.9, For 4 aux valve

2шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5MM phc

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.

6

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

7

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

8

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube class 6

2шт.

9

570180

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR, 1-1/4 C-Z hyd fld short swvl

1шт.

10

9411110

ELBOW,45 Degree, 1 5/8"-12 x 1 5/8"-12, O-Ring

1-1/4 C-Z hyd fld adj 45 deg

1шт.

11

1259646C1

HYD TUBE

TUBE ASSY, aux valve return, tractor w/two aux valves

1шт.

11

1251874C1

HYD TUBE,1.25" OD, 664.848 mm Length

TUBE ASSY, aux valve return, tractors w/three aux valves

1шт.

11

1259647C1

HYD TUBE

TUBE ASSY, aux valve return, tractors w/four aux valves

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

16шт.

13

9411106

ELBOW

7/8-14 37 deg hyd flared tube adj str thd 45 deg

3шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

5шт.

15

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

2шт.

16

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

8шт.

17

144325C3

HYD TUBE,0.625" OD, 1490.82 mm Length

TUBE ASSY, 1st valve raise

1шт.

18

144326C1

HYD TUBE,0.625" OD, 1515.589 mm Length

TUBE ASSY, 1st valve drop

1шт.

19

144327C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

20

144328C2

HYD TUBE,0.625" OD, 1669.129 mm Length

TUBE ASSY, 2nd valve drop

1шт.

21

144329C1

HYD TUBE,0.625" OD, 1134.611 mm Length

TUBE ASSY, 3rd valve raise

1шт.

22

144330C1

HYD TUBE,0.625" OD, 1188.092 mm Length

TUBE ASSY, 3rd valve drop

1шт.

23

1259602C1

HYD TUBE

TUBE ASSY, 4th valve raise

1шт.

24

1259603C1

HYD TUBE

TUBE ASSY, 4th valve drop

1шт.

25

1251919C1

SUPPORT TUBE

SUPPORT, 1st & 2nd aux valve tubes

1шт.

26

224968C2

STRIP

tube insulator

2шт.

27

486004R1

CLAMP

tube

2шт.

30011R1

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65 phc class 10.9

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

28

1251923C1

SUPPORT TUBE

SUPPORT, aux valve tube support, 1st aux valve w/alternating check valves, 3rd aux valve w/o alternating check valves

1шт.

29

224968C2

STRIP

tube insulator

1шт.

30

486004R1

CLAMP

tube

1шт.

30006R1

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40 phc class 10.9

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

31

1259617C1

SUPPORT TUBE

SUPPORT, 3rd & 4th aux valve tubes

1шт.

32

224905C1

STRIP

tube insulator

2шт.

33

1270568C1

STRIP

CLAMP, tube

2шт.

30014R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

M8 x 80 phc class 10.9

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

34

1272192C91

COUPLING

COUPLER ASSY, female, ISO coupler, (2) required for two aux valves, (3) required for three aux valves, (4) required for four aux valves, For serviceable components see female coupler this group

1шт.

35

144085C1

BRACKET

LH coupler

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

931218R1

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

36

144086C1

BRACKET

RH coupler

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

931218R1

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

37

120012C1

SUPPORT

2nd & 4th coupler

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

4шт.
