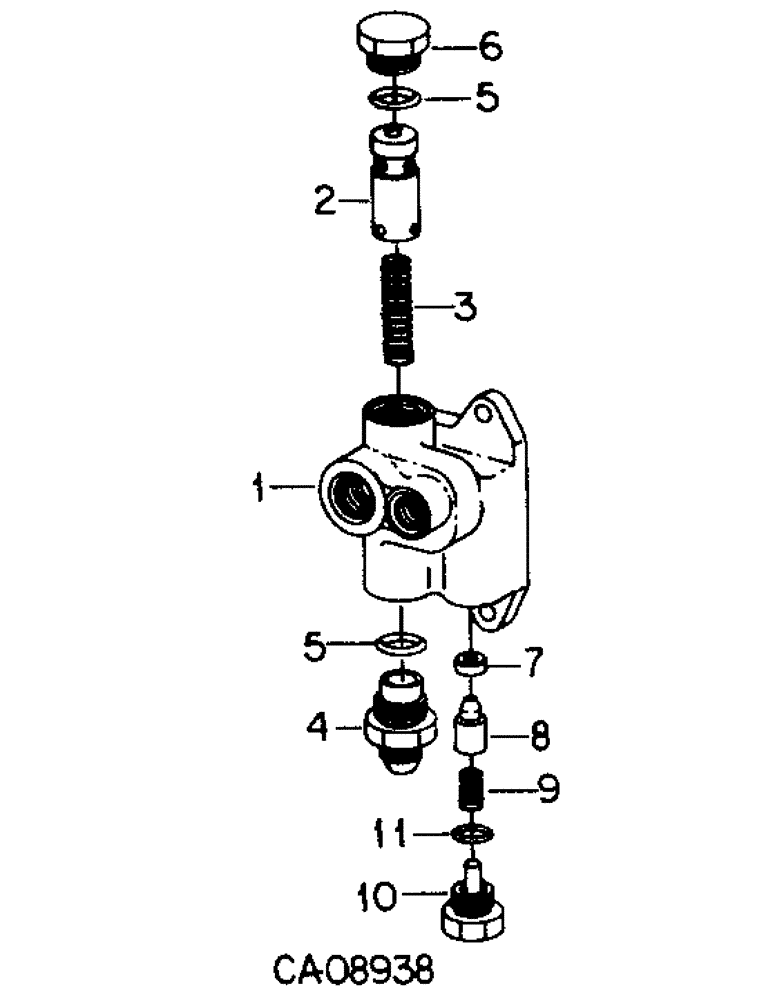

Запчасти Case IH 7288 (10-16) - HYDRAULICS, FLOW DIVIDER VALVE ASSY (07) - HYDRAULICS

224349C91

VALVE

ASSY, flow divider

1шт.

1

BODY, flow divider valve, Order valve assy (NSS)

1шт.

2

SPOOL ASSY, flow divider valve, Order valve assy (NSS)

1шт.

3

149722C1

SPRING

spool

1шт.

4

149724C1

UNION

flow divider

1шт.

5

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

6

9410363

PLUG

1 C-Z str thd o-ring boss

1шт.

7

SEAT, valve poppet, Order valve assy (NSS)

1шт.

8

1282288C1

VALVE

POPPET, valve

1шт.

9

1282290C1

SPRING

valve poppet

1шт.

10

224500C1

PLUG

ASSY, valve retaining

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.
