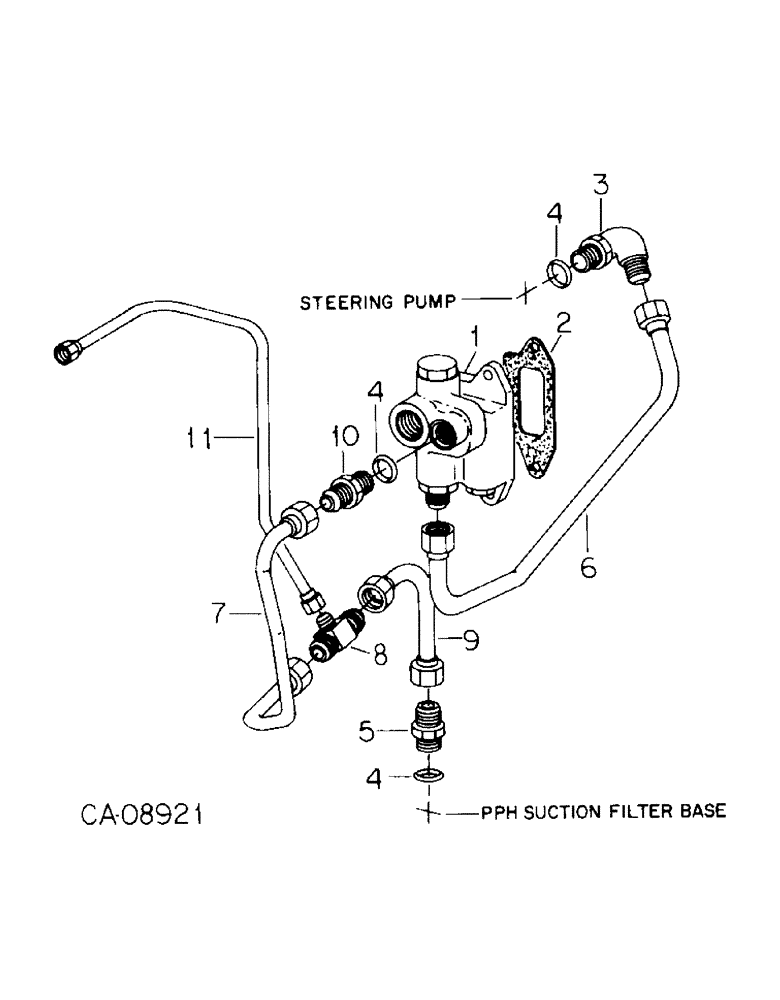

Запчасти Case IH 7288 (10-15) - HYDRAULICS, FLOW DIVIDER VALVE AND CONNECTIONS (07) - HYDRAULICS

1

224349C91

VALVE

ASSY, flow divider, For components, Refer to flow divider valve listing, this group

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3MM phc

1шт.

2

149730C1

GASKET

flow divider valve

1шт.

3

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D

1шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

3шт.

5

1264502C1

CONNECTOR, ELEC

CONNECTOR, orifice 3/4 fld tube

1шт.

6

1250070C1

TUBE

ASSY, flow divider to strg supply pump

1шт.

7

1269355C3

HYD TUBE

TUBE ASSY, flow, Serial Range: divider-tee

1шт.

8

1269133C1

TEE

special 3/4-3/4-5/8 fld tube

1шт.

9

1269125C2

HYD TUBE,0.75" OD, 127, 76 mm Length

TUBE ASSY, tee to suction filter

1шт.

10

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

11

1269124C3

HYD TUBE

TUBE ASSY, Serial Range: supplement-cross

1шт.
