Запчасти Case IH 7288 (10-14) - HYDRAULICS, REGULATOR VALVE ASSY (07) - HYDRAULICS

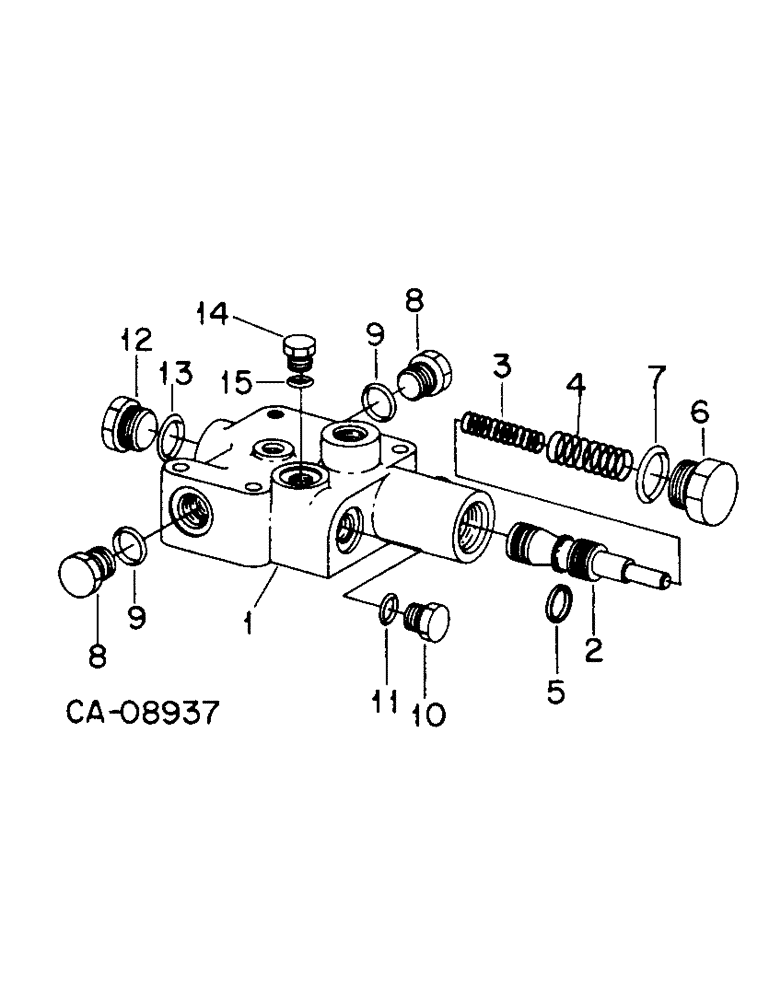

Схема запчастей Case IH 7288 - (10-14) - HYDRAULICS, REGULATOR VALVE ASSY (07) - HYDRAULICS
10
14
2
12
6
8
15
13
3
9
1
8
9
5
4
7
11

Артикул

Название

Примечание

Количество

1282401C91

VALVE

ASSY, regulator

1шт.

1

BODY, regulator valve, Order valve assy (NSS)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, regulator valve (Replaces 1272820C2)

1шт.

3

666018C2

SPRING

valve spool, inner

1шт.

4

666019C2

SPRING

valve spool, outer

1шт.

5

662294C1

SHIM

valve spool

2шт.

6

1272522C1

PLUG

regulator valve

1шт.

7

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

8

9410360

PLUG

5/8 C-Z str thd o-ring boss

2шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

10

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

12

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

14

27599R1

PLUG

3/8 phc str thd o-ring boss

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

Выбрано товаров: 16
