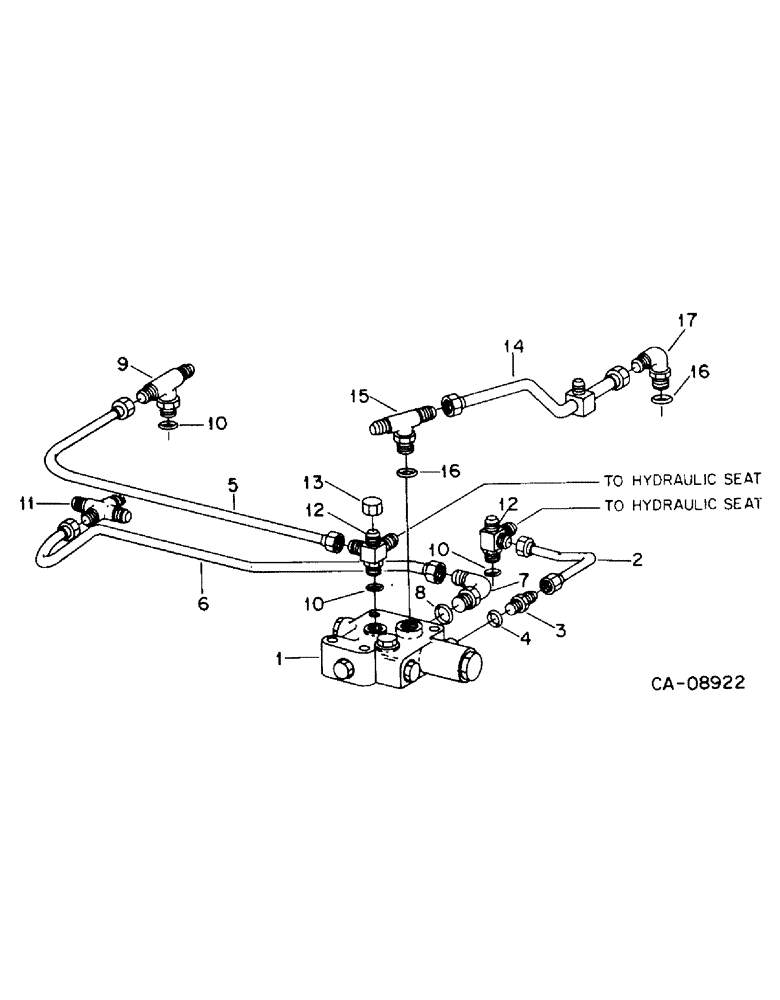

Запчасти Case IH 7288 (10-13) - HYDRAULICS, REGULATOR VALVE AND CONNECTIONS (07) - HYDRAULICS

1

1282401C91

VALVE

ASSY, regulator, For components, Refer to regulator valve assy listing, this group

1шт.

930280R1

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

M10 x 60 pln class 8.8

2шт.

2

149021C1

HYD TUBE,0.375" OD, 81, 68 mm Length

TUBE ASSY, regulator valve dump

1шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

5

149020C1

HYD TUBE,0.375" OD, 419, 137.5 mm Length

TUBE ASSY, regulator valve to trans lube valve

1шт.

6

1269356C1

TUBE ASSY.

TUBE ASSY, reg, Serial Range: valve-cross

1шт.

7

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

9

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

3/8 C-Z hyd fld tube adj

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

3шт.

11

9403178

CROSS, 5/8 C-Z hyd flared tube

1шт.

12

224616C1

CROSS

9/16-18 o-ring boss 37 deg flared tube

2шт.

13

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

14

149038C1

HYD TUBE,0.625" OD, 272.8, 67.4, mm Length

TUBE ASSY, regulator valve to clutch housing

1шт.

15

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

17

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.
