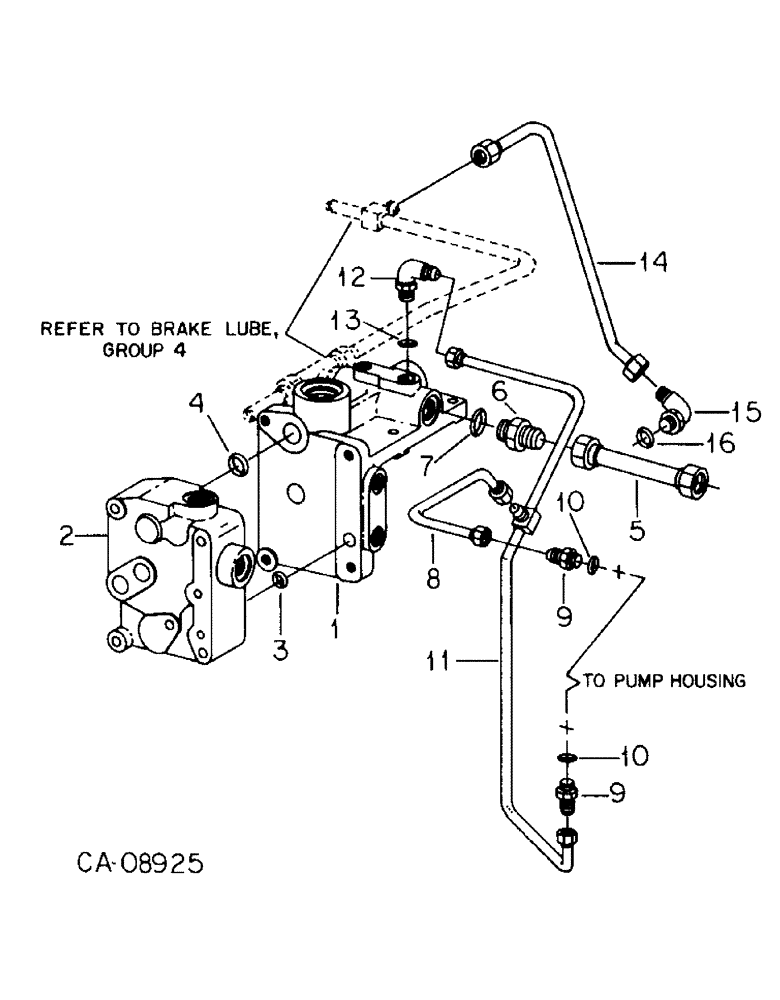

Запчасти Case IH 7288 (10-11) - HYDRAULICS, PRIORITY VALVE, AUXILIARY VALVE MOUNTING, BRACKET AND CONNECTIONS (07) - HYDRAULICS

1

224406C1

BRACKET

auxiliary valve mounting

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

2

142657C92

VALVE

ASSY, priority motor, For list of component parts see priority valve this group

1шт.

3

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16 x 5/8 class 6

1шт.

4

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

5

1258442C1

TUBE,0.625" OD, 110 mm Length

ASSY, aux valve bracket to cross

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

8

146872C1

TUBE ASSY.,0.375" OD, 229.031 mm Length

TUBE ASSY, pump housing lube upper

1шт.

9

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

11

146871C1

TUBE ASSY.,0.375" OD, 614.677 mm Length

TUBE ASSY, pump housing lube supply

1шт.

12

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd flared adj 90D

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/8 OD tube class 6

1шт.

14

1270517C1

HYD TUBE

TUBE ASSY, range & speed shift lub

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.
