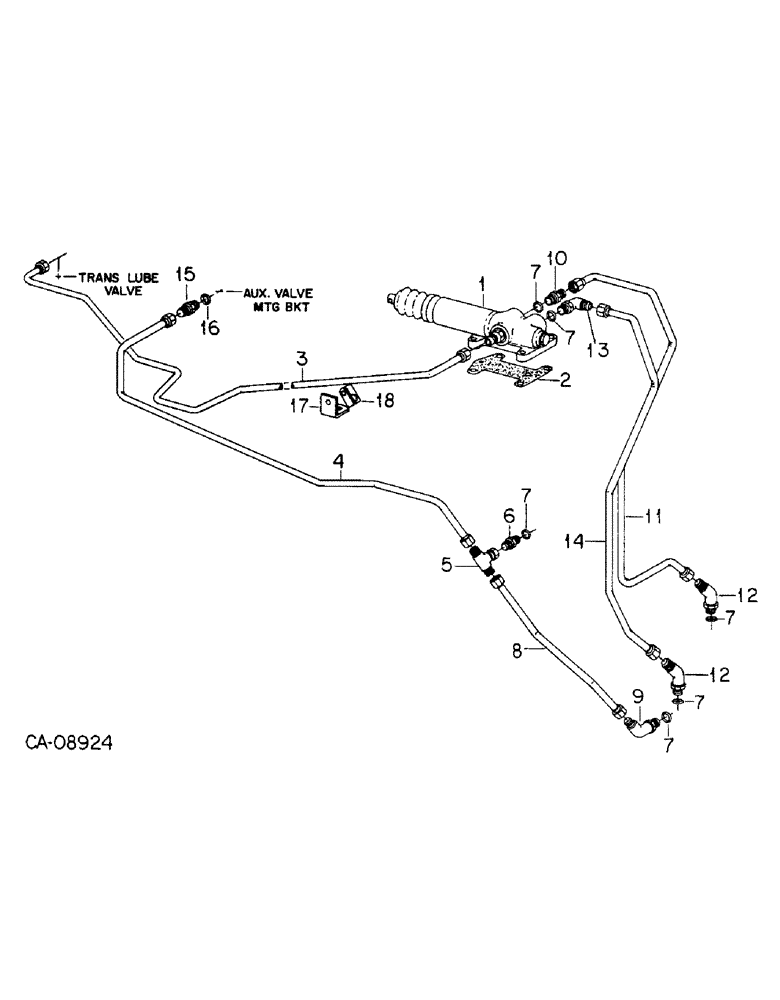

Запчасти Case IH 7288 (10-10) - HYDRAULICS, IPTO VALVE AND CONNECTIONS (07) - HYDRAULICS

1

142572C95

VALVE

ASSY, IPTO, Refer to IPTO valve, this group for list of components

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

145287C1

GASKET

IPTO valve

1шт.

3

149042C4

HYD TUBE,0.375" OD, 1098.5, 228 mm Length

TUBE ASSY, trans lube valve to IPTO valve supply

1шт.

4

1258189C1

HYD TUBE

TUBE ASSY, IPTO brg lube to aux valve bracket

1шт.

5

1258215C1

TEE

3/8 C-Z hyd fld tube swivel

1шт.

6

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

6шт.

8

1264598C1

HYD TUBE

TUBE ASSY, IPTO lube rear

1шт.

9

1264599C1

ELBOW

3/8 C-Z hyd fld adj 45D

1шт.

10

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

11

148800C2

TUBE,0.375" OD, 478.71, 166.51 mm Length

ASSY, IPTO clutch pressure

1шт.

12

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 45D

2шт.

13

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

14

148801C2

HYD TUBE,0.375" OD, 682.987 mm Length

TUBE ASSY, IPTO brake pressure

1шт.

15

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht, aux valve bracket side port

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

17

1269266C1

SUPPORT

IPTO supply tube

1шт.

18

183821C1

CLAMP

tube

1шт.

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

30209R1

WASHER,M6 x 13 x 2, HT

6.4 x 12.5 x 2MM phc

1шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

1шт.
