Запчасти Case IH 7288 (10-09) - HYDRAULICS, INDEPENDENT POWER TAKE-OFF VALVE (07) - HYDRAULICS

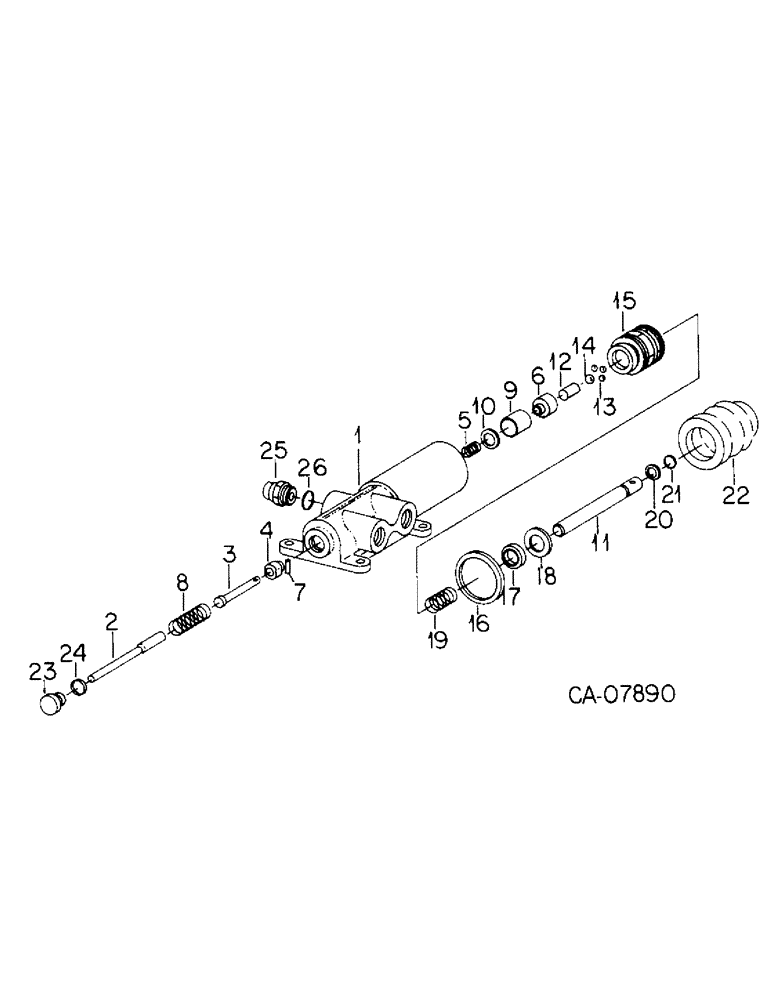

Схема запчастей Case IH 7288 - (10-09) - HYDRAULICS, INDEPENDENT POWER TAKE-OFF VALVE (07) - HYDRAULICS
12
24
17
11
2
12
3
1
23
9
5
26
5
22
4
6
16
8
20
21
13
19
7
25
15
18

Артикул

Название

Примечание

Количество

142572C95

VALVE

ASSY, IPTO

1шт.

1

BODY & SPOOL, IPTO valve, Order IPTO valve assy (NSS)

1шт.

2

26622R1

DOWEL,5/16" x 3/8"

PIN, 5/16 x .375 pln hd, dowel

1шт.

3

224302C1

ROD

ball actuating

1шт.

4

70807C1

RETAINER

ball actuating pad

1шт.

5

68089C1

SPRING

regulator

1шт.

6

68090C1

RETAINER

ball actuating rod stem end

1шт.

7

149983C1

PIN

ball actuating rod retaining

1шт.

8

68092C1

SPRING

engagement

1шт.

9

68094C1

SPACER

engagement spring

1шт.

10

68093C1

SPRING WASHER

engagement spring

1шт.

11

138413C1

STEM

control

1шт.

12

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x .625 pln hdn dowel

1шт.

13

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

3шт.

14

17012R1

BALL,3/8" Dia

1шт.

15

68096C1

BODY

ASSY, valve detent

1шт.

16

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

17

68097C1

SEAL

control stem

1шт.

18

608701R1

WASHER

.656 x 1.250 x .054

1шт.

19

1252025C1

SPRING

actuator return

1шт.

20

350515R1

WASHER

.656 x 1.000 x .054

1шт.

21

267805R1

RING

.579 ext ret

1шт.

22

68110C2

BOOT

IPTO valve dust, Not included in valve assy

1шт.

23

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

25

1272563C1

VALVE

ASSY, IPTO check

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

Выбрано товаров: 27
