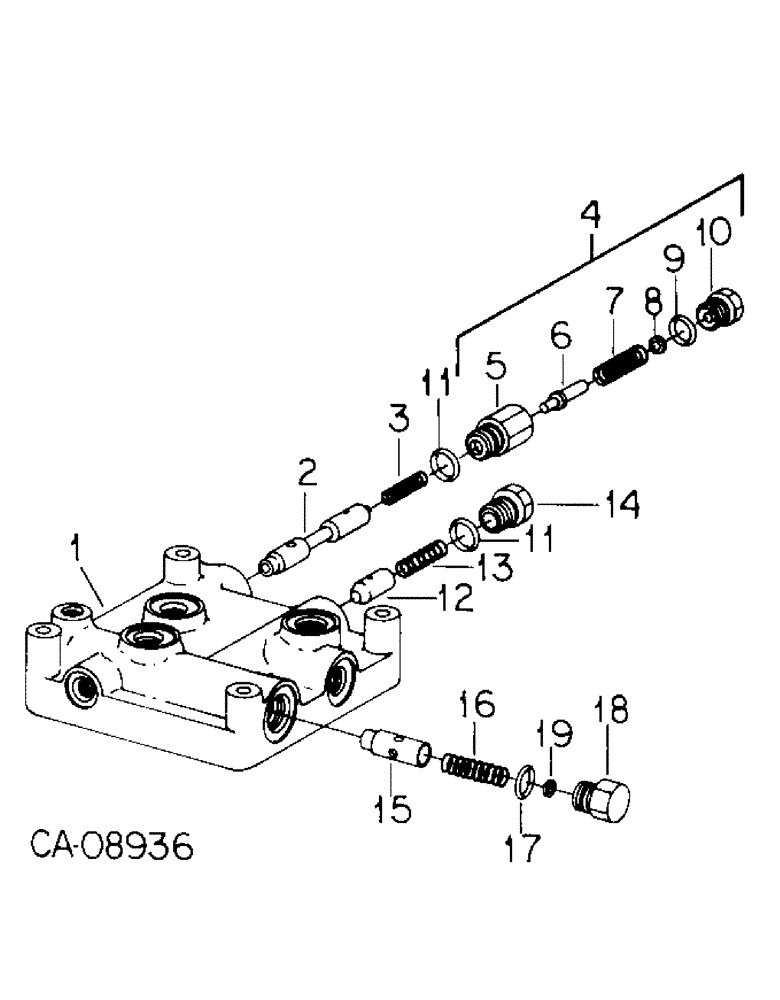

Запчасти Case IH 7288 (10-08) - HYDRAULICS, TRANSMISSION LUBRICATION VALVE (07) - HYDRAULICS

145394C95

HYDRAULIC VALVE

VALVE ASSY, transmission lubrication

1шт.

1

145395C1

BODY ASSY, transmission lube valve

1шт.

2

1272961C1

SPOOL

ASSY, flow regulator

1шт.

3

145482C1

SPRING

flow regulator light

1шт.

4

1263471C91

PLUG

ASSY, flow regulator, Includes Ref: 5-10

1шт.

5

PLUG, flow regulator body, Order plug assy, 1263471C91 (NSS)

1шт.

6

PIN, flow regulator poppet, Order plug assy, 1263471C91 (NSS)

1шт.

7

1255255C1

SPRING

flow regulator heavy

1шт.

8

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

1шт.

9

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

12

123005C1

VALVE

poppet

1шт.

13

142775C1

SPRING

lub relief

1шт.

14

108833C1

PLUG

poppet valve retaining

1шт.

15

1252095C1

VALVE

by-pass & relief

1шт.

16

1255255C1

SPRING

flow regulator heavy

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

18

1255099C1

PLUG

by-pass valve

1шт.

19

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

1шт.
