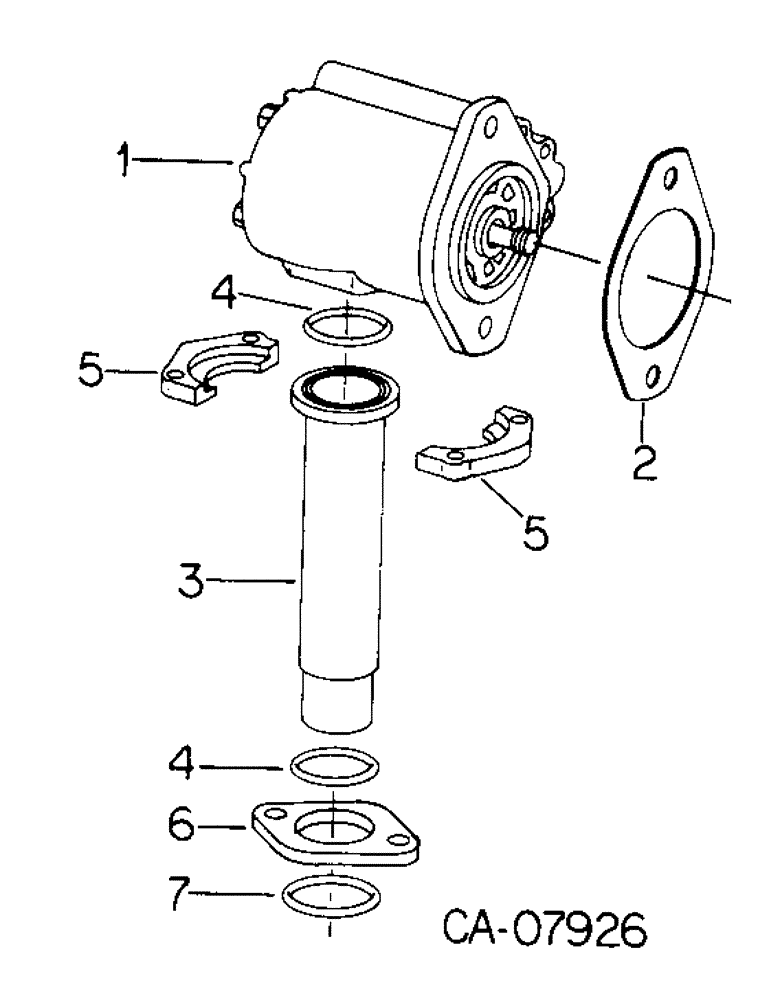

Запчасти Case IH 7288 (10-02) - HYDRAULICS, DUAL GEAR PUMP AND CONNECTIONS (07) - HYDRAULICS

1

1263276C91

PUMP

ASSY, hyd dual gear, Cessna, Optional w/pump, 1263286C91, Only serviceable components are

1шт.

1

1949306C1

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

1949307C1

CORE-HYDRAULIC PUMP

Return Number, Hydraulic Pump

1шт.

1260955C3

SEAL KIT

KIT, seal repair, Consists of

1шт.

.

CAP (NSS)

2шт.

397826R91

GASKET

shaft lip

1шт.

.

SEAL, brg (NSS)

1шт.

.

O-RING, molded (NSS)

1шт.

.

O-RING, 5 x 5-3/16 class 6 (NSS)

2шт.

.

BACK-UP GASKET (NSS)

1шт.

.

WEAR PLATE (NSS)

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

30328R1

WASHER,M13.5 x 24.5 x 3, HT

13.3 x 24 x 3MM

2шт.

28423R1

WASHER

.531 x 1.250 x .188 hdn

2шт.

1

1263286C91

PUMP

ASSY, hyd dual gear, Rexroth, Optional w/pump, 1263276C91, Only serviceable components are

1шт.

1260971C2

PACKAGE

KIT, seal repair, Consists of

1шт.

1263428C1

SEAL

pump shaft

1шт.

.

RING, sq (NSS)

2шт.

.

SEAL, spacer (NSS)

1шт.

.

SEAL, loading (NSS)

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

30328R1

WASHER,M13.5 x 24.5 x 3, HT

12MM hdn

2шт.

2

144169C1

GASKET

hyd pump

1шт.

3

148700C3

TUBE,57.08 mm OD, 239 mm Length

ASSY, gear pump section

1шт.

4

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 class 5

2шт.

5

300525R1

CLAMP

FLANGE, clamp halves split

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

6

139238C2

RETAINER

suction tube

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3MM phc

2шт.

7

285723R1

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

3-1/8 x 3-3/8 class 5

1шт.
