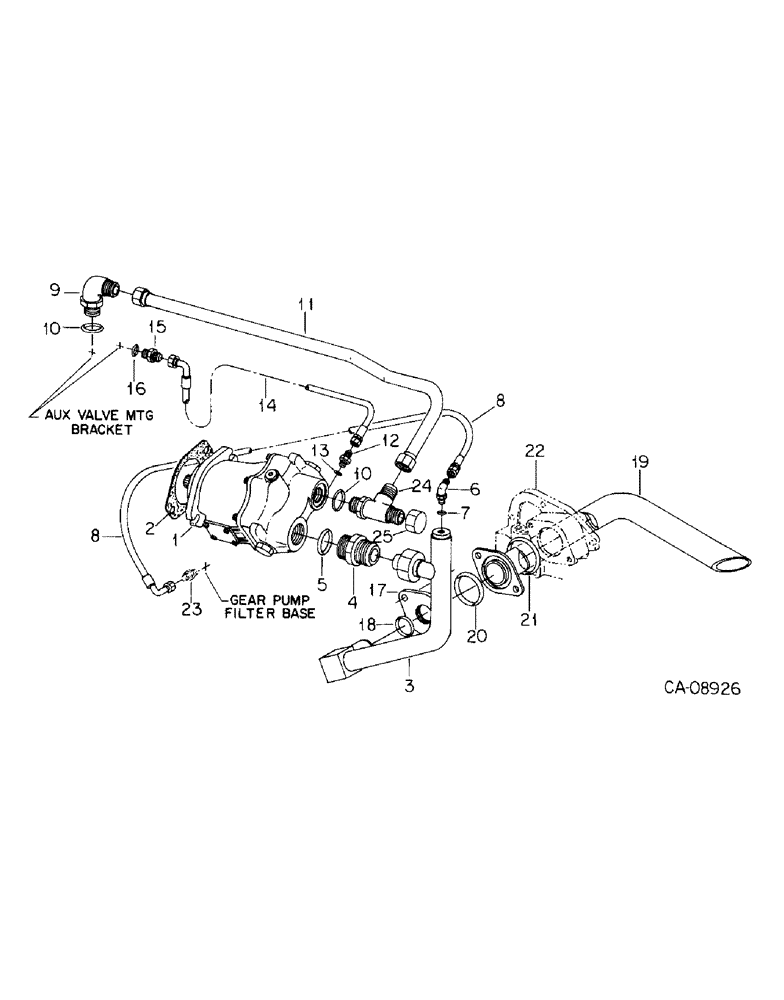

Запчасти Case IH 7288 (10-01) - HYDRAULICS, PPH PISTON PUMP AND CONNECTIONS (07) - HYDRAULICS

1

149619C91

PUMP

ASSY, PPH piston, Sperry-Vickers, Only serviceable item is

1шт.

1263244C2

PACKAGE

KIT, seal, Consists of

1шт.

GASKETS (NSS)

2шт.

SEALS (NSS)

8шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

28423R1

WASHER

.531 x 1.250 x .188 hdn

2шт.

2

144169R1

GASKET, PPH pump

1шт.

3

1280889C1

TUBE

ASSY, manifold

1шт.

4

9410209

HYD CONNECTOR,1 7/8"-12, 37 Degree x 1 7/8"-12, Pipe

CONNECTOR, 1-1/2 C-Z hyd fld short swvl

1шт.

5

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 OD tube class 6

1шт.

6

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D

1шт.

7

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

8

1285821C1

HOSE

ASSY, drain

1шт.

9

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1 C-Z hyd fld adj 90D

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

11

1269354C1

HYD TUBE,1" OD, 749, 190 mm Length

TUBE ASSY, PPH pump to aux valve mtg bracket

1шт.

12

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 45D, pump signal port

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

14

1269156C2

HOSE ASSY.

HOSE ASSY, PPH pump signal to aux valve mtg bracket

1шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

17

1250270C1

RETAINER

suction tube

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2MM pln

2шт.

18

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 class 5

1шт.

19

139230C1

TUBE,50.8 mm OD

ASSY, PPH suction

1шт.

20

22408R1

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2-3/8 x 2-5/8 class 5

1шт.

21

22410R1

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

2-7/8 x 3-1/8 class 5

1шт.

22

BASE, PPH suction filter, Refer to hydraulic oil suction filters listing, this group

1шт.

23

VALVE ASSY, drain hose check, Refer to hydraulic oil suction filters listing, this group

1шт.

24

9411135

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

1 C-Z hyd fld tube adj

1шт.

25

9403376

CAP,37 Degree, 1 5/16"-12

1 C-Z hyd flared tube

1шт.
