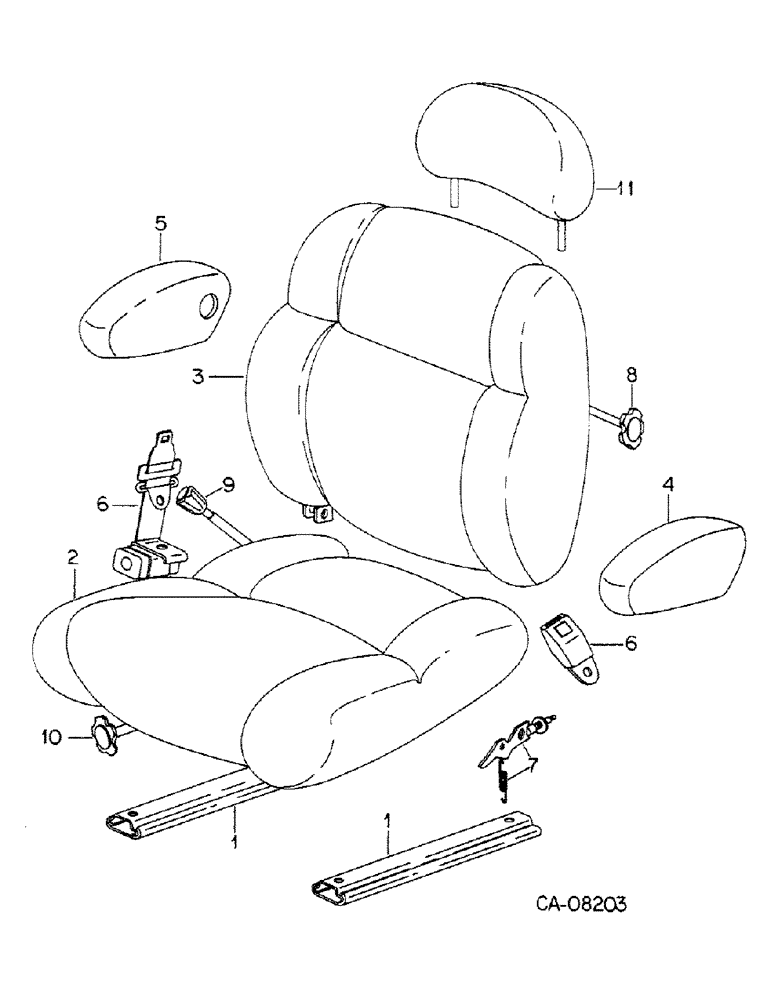

Запчасти Case IH 5488 (13-15) - SUPERSTRUCTURE, DELUXE HYDRALIC SEAT GRAMMER WESTERN INTERIOR CAB (05) - SUPERSTRUCTURE

1267386C91

SEAT

ASSY, hydraulic, brown, Consists of Ref. 1 - 10

1шт.

1

143443C1

SLIDE

ASSY, w/o handle

2шт.

2

143450C1

CUSHION

seat

1шт.

3

143451C1

CUSHION

back

1шт.

4

1262284C1

ARMREST

ASSY, LH

1шт.

5

143453C1

ARM

REST ASSY, RH

1шт.

6

1262285C1

SAFETY BELT

SAFETY BELT

1шт.

7

1267560C1

ADJUSTER

LH armrest

1шт.

8

1267561C1

KNOB

ASSY, lumbar adj

1шт.

9

1267562C1

HANDLE

ASSY, backrest tilt

1шт.

(P/N 1267562C1) - Grammar seats have this. Sears do not.

1шт.

10

1267563C1

KNOB

ASSY, seat cushion tilt

1шт.

11

1262062C1

CUSHION

upper backrest, Not furnished as part of seat

1шт.

Oakdale, MN

1шт.

800/367-7328

1шт.

Service parts not offered by Case can be purchased direct from: Grammar, Inc.
