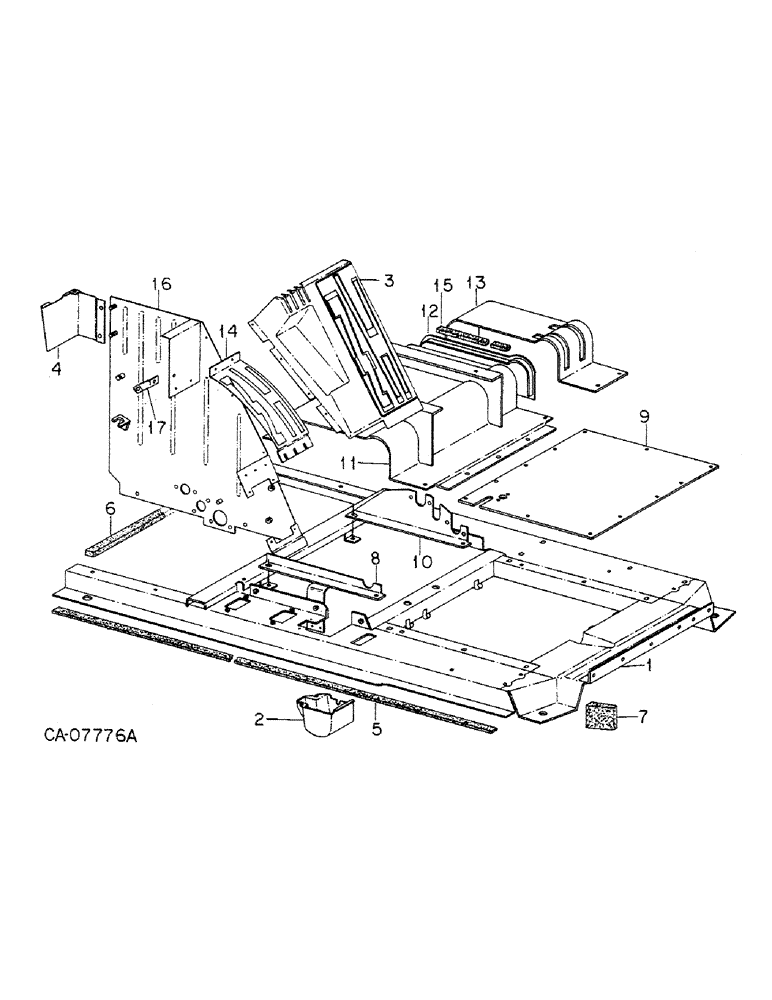

Запчасти Case IH 5488 (13-06) - SUPERSTRUCTURE, OPERATORS PLATFORM AND CONNECTIONS (05) - SUPERSTRUCTURE

1

1251659C4

FRAME

ASSY, platform sub, Includes: Ref. 2, 3 and 4

1шт.

1

1280797C1

FRAME

ASSY, platform sub, Tractors w/dynamic brake

1шт.

130287C1

NUT

M8 x 1.25 cage

9шт.

143902C1

NUT

M10-1.5 cage

5шт.

2

1251957C4

COVER

subframe range shift

1шт.

934871R1

NUT,M5, Cl 5

M5 class 5

2шт.

30481R1

WASHER,M5 x 10 x 1

5.5 x 10 x 1mm

2шт.

3

1251661C5

COVER

RH console

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, 10-16 x 3/4 console mounting, Replaces 1264518C1

6шт.

4

1251647C3

BRACKET

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

5

STRIP, sub frame side, seal, Use 1067 mm/42 in. from 4 foot bulk length marked 1264567C1

2шт.

6

109257C1

SEALING STRIP

sub frame rear, seal

1шт.

7

104753C1

SEAL

sub frame front

2шт.

8

1251745C1

BRACKET

ASSY, parklock cable

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

4шт.

9

104165C2

PLATFORM

PLATE, sub-frame platform

1шт.

30301R1

SCREW,Cross Pan Hd, M8 x 20

M8 x 20 mm znp p/hdcr mach

12шт.

10

144008C1

PLATE

shift linkage support, Tractors w/o dynamic brake

1шт.

10

1280789C1

PLATE

shift linkage support, Tractors w/dynamic brake

1шт.

11

143999C3

COVER

ASSY, seat support, Also see hyd. seat suspension this group

1шт.

130287C1

NUT

M8 x 1.25 cage

3шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

5шт.

12

1251740C1

PLATE

ASSY, LH console

1шт.

13

1251738C3

COVER

park lock control, Tractors w/o dynamic brake

1шт.

13

1280611C1

COVER

park lock control, tractors w/dynamic brake

1шт.

31055R1

BOLT, M8 x 25 phc cl 8.8 flg/hd

2шт.

30601R1

SCREW,Cross Pan Hd, M10 x 20

M10 x 20 phc class 4.8 p/hdcr

2шт.

143902C1

NUT

M10-15 cage

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

14

1251612C1

SECTOR

shift

1шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 pln class 8.8

5шт.

15

STRIP, seat support dust, seal, Use 660 mm/26 in. from 4 foot bulk length marked 73220C1

2шт.

16

1251606C5

HOUSING

ASSY, RH controls, console

1шт.

931406R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 x 25 phc class 8.8

2шт.

17

1252983C1

BRACE

console

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.
