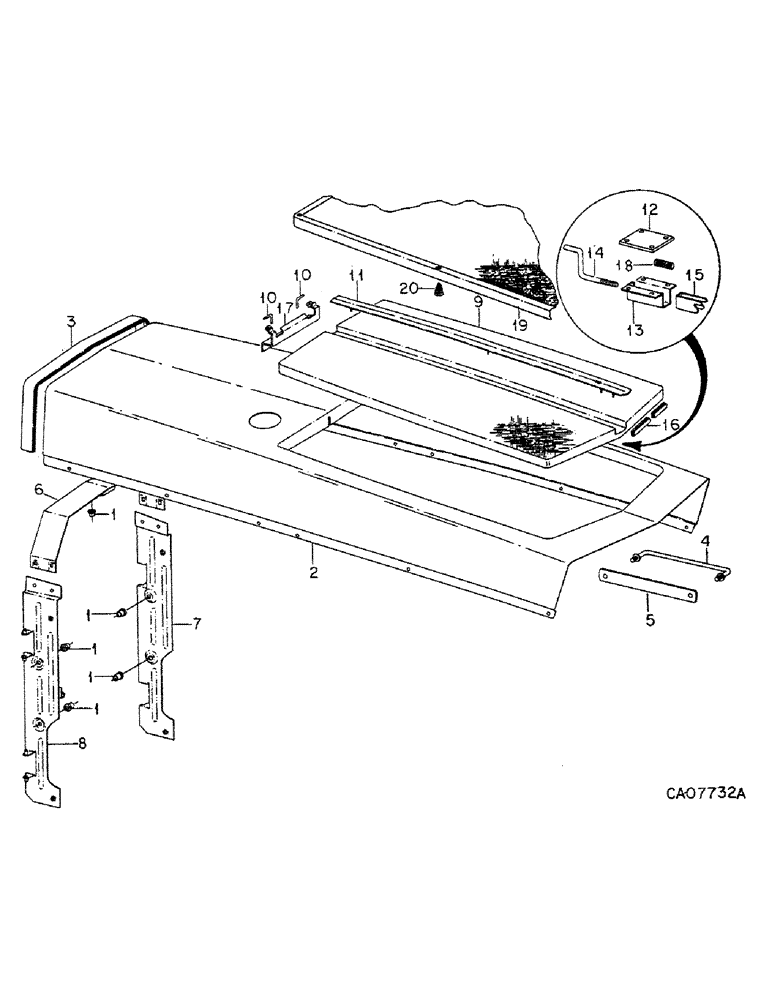

Запчасти Case IH 5488 (13-01) - SUPERSTRUCTURE, HOOD, SCREEN AND SUPPORTS (05) - SUPERSTRUCTURE

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

rear support hood mounting

5шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

5шт.

536642R1

WASHER

.406 x 1 x .060

10шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

2

139152C1

HOOD

1шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

4шт.

1270584C1

PREV TORQUE BOLT,Hex, M8 x 16mm

SCREW, M8 x 16 hex hd w/washer polyseal

9шт.

3

1251829C1

SEAL

hood, rear, 2 required for tractors w/ROPS

1шт.

4

1251832C1

BOLT

BAR, assist handle

1шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

2шт.

905263R1

NUT,M12 x 1.75, Cl 10

NUT, M12 phc p/t class 10

2шт.

5

1251834C1

BAR

assist handle (If required)

1шт.

905263R1

NUT,M12 x 1.75, Cl 10

NUT, M12 phc p/t class 10

2шт.

6

144104C2

SUPPORT

ASSY, hood rear upper

1шт.

130286C1

NUT

M8 x 1.25 cage

4шт.

GASKET, foam, Requires 415 mm/16.34 in. from 4 ft length 1264567C1

1шт.

7

144237C1

SUPPORT

ASSY, hood rear lower side LH

1шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

2шт.

130286C1

NUT

M8, 1.25 cage

2шт.

8

144238C1

SUPPORT

ASSY, hood rear lower side RH

1шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

2шт.

130286C1

NUT

M8, 1.25

2шт.

9

1270751C1

SCREEN

ASSY, hood top, Replaces 1251620C4

1шт.

10

1251843C3

ROD

top screen hinge

2шт.

11

1251628C2

STRIP

ASSY, top screen center, For use with screen, 1251620C4

1шт.

12

1259596C1

PLATE

top screen latch

1шт.

13

1251631C1

LATCH

top hood screen

1шт.

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

SCREW, (Polyseal) Cross Pan Hd, M6 x 12

4шт.

30281R1

NUT,M6, Cl 10

M6 class 10

4шт.

14

1251634C2

ROD

top screen latch, lever

1шт.

15

1251632C2

CATCH

ASSY, top screen latch

1шт.

16

1251827C3

SEAL

air intake screen

1шт.

17

1259585C2

HINGE

ASSY, top screen

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

18

149076C2

SPRING

latch

1шт.

19

SCREEN, top cover, Order 1270731C91 parts accessory

1шт.

20

392525R1

FASTENER

coil spring

10шт.

1270731C91

PACKAGE

PARTS ACCESSORY, top screen cover, Includes: Ref. 19 and 20 plus installing instructions

1шт.
