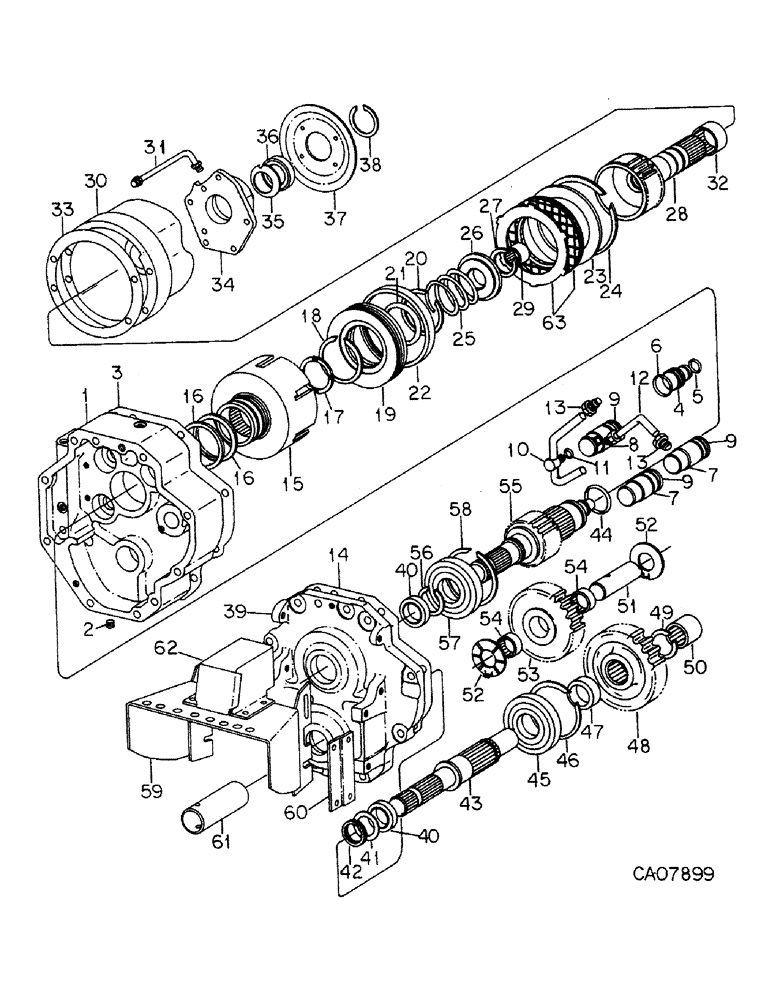

Запчасти Case IH 5488 (07-46) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, DUAL SPEED (04) - Drive Train

1

1259531C92

HOUSING

ASSY, w/product graphic

1шт.

64553C2

PRODUCT GRAPHIC

WARNING - IPTO

1шт.

2

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 pln sq/skt auto pipe

1шт.

3

139286C1

GASKET

IPTO, Serial Range: hsg-frame

1шт.

4

67340C1

PISTON

ASSY, anti-creep brake

3шт.

5

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 class 5, Brake piston rod

3шт.

6

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 class 5, Brake piston

3шт.

7

68074C1

CYLINDER

anti-creep brake

2шт.

8

68073C1

CYLINDER

anti-creep brake

1шт.

9

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

1-1/2 x 1-5/8 class 5, Brake cylinder

3шт.

10

68075C1

TUBE

ASSY, brake supply

1шт.

11

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 class 5, Brake supply connector

1шт.

12

68077C1

TUBE

brake supply

1шт.

13

222-502

TUBE NUT,7/16"-24

NUT, 1/4 tube, Brake supply tube

4шт.

14

139287C1

GASKET

IPTO cover and housing

1шт.

15

148665C1

CUP

clutch

1шт.

16

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

17

149095C3

THRUST WASHER,48mm ID x 60mm OD x 2.5mm Thk

clutch carrier thrust, 5088 w/serial no. 8263 and below, 5288 w/serial no. 6029 and below, 5488 w/serial no. 4070 and below

1шт.

17

1285725C1

THRUST WASHER,48mm ID x 65mm OD x 3.5mm Thk

clutch carrier thrust, 5088 w/serial no. 8264 and above, 5288 w/serial no. 6030 and above, 5488 w/serial no. 4071 and above

1шт.

18

68625C1

RING

clutch cup ret snap

1шт.

19

68080C2

PISTON

clutch

1шт.

20

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch piston stop #187, Ext

1шт.

21

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 class 5, Clutch piston

1шт.

22

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

23

139202C1

RETAINER

clutch driven disc

1шт.

24

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc ret snap

1шт.

25

381493R1

SPRING

clutch release

1шт.

26

381494R1

RETAINER

clutch release spring

1шт.

27

370504R1

RING

clutch release spring ret snap

1шт.

28

139284C3

SHAFT

drive

1шт.

29

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, 1000 RPM drive shaft frt

1шт.

30

148474C92

CARRIER

ASSY, IPTO clutch, Composed of

1шт.

NSS

NOT SOLD SEPARAT

CARRIER, IPTO clutch (NSS)

1шт.

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x .750 pln hdn dowel

2шт.

222-503

TUBE NUT,1/2"-20

NUT, 5/16 TUBE

2шт.

148451C2

TUBE,0.035" OD, 115, 48 mm Length

IPTO clutch lube

1шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.5000 pln ast 12pt flg

4шт.

31

148451C2

TUBE,0.035" OD, 115, 48 mm Length

IPTO clutch lube

1шт.

222-503

TUBE NUT,1/2"-20

NUT, 5/16 tube

2шт.

32

359950R91

NEEDLE BEARING

BEARING, drive shaft rear

1шт.

33

529565R1

GASKET

IPTO clutch carrier

1шт.

34

148443C1

HOUSING

front brg support

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

35

68084C1

BAFFLE

drive shaft frt

1шт.

36

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING, drive shaft frt

1шт.

37

139285C1

RETAINER

drive shaft frg brg

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

555570R1

SNAP RING

RING, drive shaft frt brg snap

1шт.

39

148661C91

COVER

ASSY, IPTO housing

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

2шт.

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

BOLT, 1/2 x 1-7/8 pln type 5

2шт.

931238R1

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

M12 x 140 pln class 8.8

6шт.

930906R1

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

M12 x 120 pln class 8.8

2шт.

108522C1

WASHER

.5 x .7 x .062 in. copper seal

2шт.

40

381480R91

OIL SEAL

output shaft oil

2шт.

41

393211R1

SHIELD

IPTO shaft seal

1шт.

42

398739R1

RING

ext. seal

1шт.

43

148663C1

SHAFT

IPTO 540 RPM output

1шт.

44

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-5/16 class 5

1шт.

45

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, IPTO 540 output shaft

1шт.

46

357201R1

RING

IPTO 540 rear brg ret

1шт.

47

381505R1

SPACER,44.7mm ID x 57.15mm OD x 16.76mm L

IPTO 540 output shaft

1шт.

48

381506R1

GEAR

IPTO driven

1шт.

49

359894R1

RING, SNAP

RING, IPTO driven gear ret

1шт.

50

576539R91

NEEDLE BEARING

ASSY, 540 RPM output shaft, front needle

1шт.

51

381507R1

SHAFT,31.74mm OD x 98.81mm L

IPTO idler

1шт.

52

381508R1

THRUST WASHER,32.26mm ID x 57.15mm OD x 2.39mm Thk

IPTO idler gear thrust

2шт.

53

381509R1

GEAR

IPTO idler

1шт.

54

287057R91

BEARING, NEEDLE

BEARING, IPTO idler gear

2шт.

55

148664C1

SHAFT

IPTO 1000 RPM output, 5088 w/serial no. 8263 and below, 5288 w/serial no. 6029 and below, 5488 w/serial no. 4070 and below

1шт.

55

1285757C1

SHAFT

IPTO 1000 RPM output, 5088 w/serial no. 8264 and above, 5288 w/serial no. 6030 and above, 5488 w/serial no. 4071 and above

1шт.

56

359894R1

RING, SNAP

RING, 1000 RPM output shaft ret

1шт.

57

381483R92

BEARING

1000 RPM output shaft

1шт.

58

357201R1

RING

1000 RPM shaft rear brg

1шт.

59

1264503C1

SHIELD

ASSY, IPTO

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

60

NOT USED THIS APPLICATION

1шт.

61

393116R1

TUBE

540 IPTO shaft safety

1шт.

62

1264520C1

COVER

ASSY, IPTO shield

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

63

80164C1

PACKAGE

plate and disc IPTO clutch, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DISC, clutch driven (NSS)

7шт.

NSS

NOT SOLD SEPARAT

PLATE ASSY, clutch (NSS)

6шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS (NSS)

1шт.
