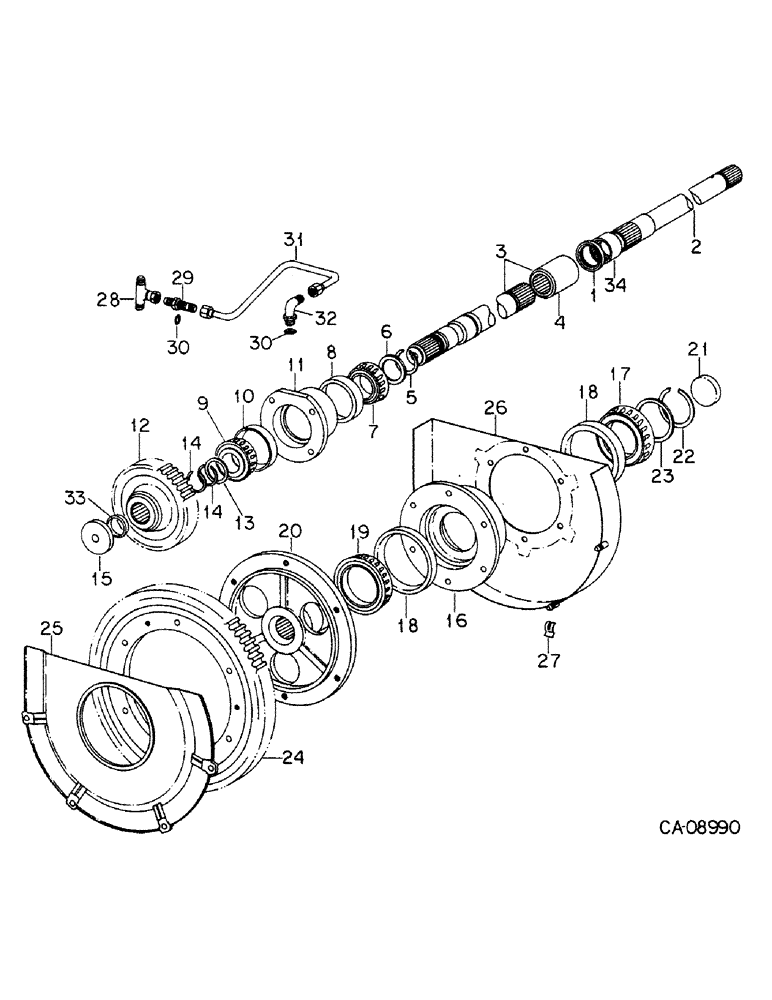

Запчасти Case IH 5488 (07-42) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF DRIVE (04) - Drive Train

1

120660C1

SEAL

range counter and IPTO shaft oil, 5088 w/serial no. 7760 and below, 5288 w/serial no. 5596 and below, 5488 w/serial no. 3651 and below

1шт.

1

1277193C1

SEAL

range counter and IPTO shaft oil, 5088 w/serial no. 7761 and above, 5288 w/serial no. 5597 and above, 5488 w/serial no. 3652 and above

1шт.

2

1277192C1

SHAFT

intermediate drive, Replaces 137588C1 by also ordering shaft, 1285833C1, plug, 379278C1, bearing assy, 1277191C1 and seal, 1277193C1 for 5088 w/serial no. 7760 and below, 5288 w/serial no. 5596 and below, 5488 w/serial no. 3651 and below

1шт.

3

1286280C91

SHAFT

ASSY, IPTO rear drive, Replaces 139296C92 by also ordering gear, 1285866C1 and wedge ring, 395082R1 for 5088 w/serial no. 8071 and below, 5288 w/serial no. 5876 and below, 5488 w/serial no. 3930 and below

1шт.

4

109651C1

COUPLING,21T

rear drive shaft

1шт.

5

139298C1

RING

external snap

1шт.

6

139299C1

RING

bearing cone backing

1шт.

7

139295C91

BEARING

ASSY, drive shaft front cone

1шт.

8

165964R1

BEARING CUP

BEARING, drive shaft front cup

1шт.

9

871244R91

ROLLER BEARING

BEARING ASSY, drive shaft rear cone

1шт.

10

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING, drive shaft rear cup

1шт.

11

139300C2

CAGE

drive shaft brg

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

12

1285866C1

GEAR

IPTO drive 54T, Replaces 139301C2 by also ordering shaft assy, 1286280C91 and wedge ring, 395082R1 for 5088 w/serial no. 8071 and below, 5288 w/serial no. 5876 and below, 5488 w/serial no. 3930 and below

1шт.

13

1264753C92

KIT

PACKAGE, drive gear brg shim, Replaces 1264593C92, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 3.814 mm/.150 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 3.894 mm/.153 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 3.974 mm/.156 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.054 mm/.160 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.134 mm/.163 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.214 mm/.166 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.294 mm/.169 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.374 mm/.172 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.454 mm/.175 in.

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 4.534 mm/.179 in.

1шт.

14

1259828C1

RING

driven gear bearing

2шт.

15

139306C2

WASHER

driving gear ret

1шт.

931703R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 pln class 8.8

1шт.

16

139307C2

CAGE

driven gear bearing

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

17

496535C91

BEARING ASSY,2.438" ID x 4.3317" OD x 0.8661"

ASSY, IPTO driven gear front

1шт.

18

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

IPTO driven gear cup

2шт.

19

190585R91

TAPERED BEARING,66.68 mm ID x 22.2 mm

BEARING ASSY, IPTO driven gear cone rear

1шт.

20

148871C92

HUB

ASSY, IPTO driven gear

1шт.

21

30734R1

PLUG,M45, Tapered

45 mm tapered cup

1шт.

22

1259698C1

CIRCLIP

RING, IPTO driven gear bearing snap

1шт.

23

1259699C1

WASHER

WASHER, bearing shim 3.482 mm/.137 in.

1шт.

23

1259700C1

WASHER

WASHER, bearing shim 3.522 mm/.139 in.

1шт.

23

1259701C1

WASHER

WASHER, bearing shim 3.562 mm/.140 in.

1шт.

23

1259702C1

WASHER

WASHER, bearing shim 3.602 mm/.142 in.m

1шт.

23

1259703C1

WASHER

WASHER, bearing shim 3.642 mm/.143 in.

1шт.

23

1259704C1

WASHER

WASHER, bearing shim 3.682 mm/.145 in.

1шт.

23

1264638C1

WASHER

WASHER, bearing shim 3.442 mm/.136 in.

1шт.

23

1264639C1

WASHER

WASHER, bearing shim 3.722 mm/.147 in.

1шт.

24

139314C1

GEAR

IPTO driven 129T

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

6шт.

25

139335C3

COVER

IPTO oil shield

1шт.

26

139329C1

SHIELD

ASSY, IPTO driven gear oil

1шт.

27

139327C1

CLIP

cover retaining

4шт.

28

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

3/8 C-Z hyd fld tube swivel

1шт.

29

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

31

139315C1

HYD TUBE,9.525 mm OD, 348.488 mm Length

TUBE ASSY, driving gear brg lube

1шт.

32

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

33

395082R1

RING

IPTO drive gear wedge, Used with gear, 1285866C1

1шт.

34

1277191C1

NEEDLE BEARING

ASSY, needle, Used with shaft, 1277192C1

1шт.
