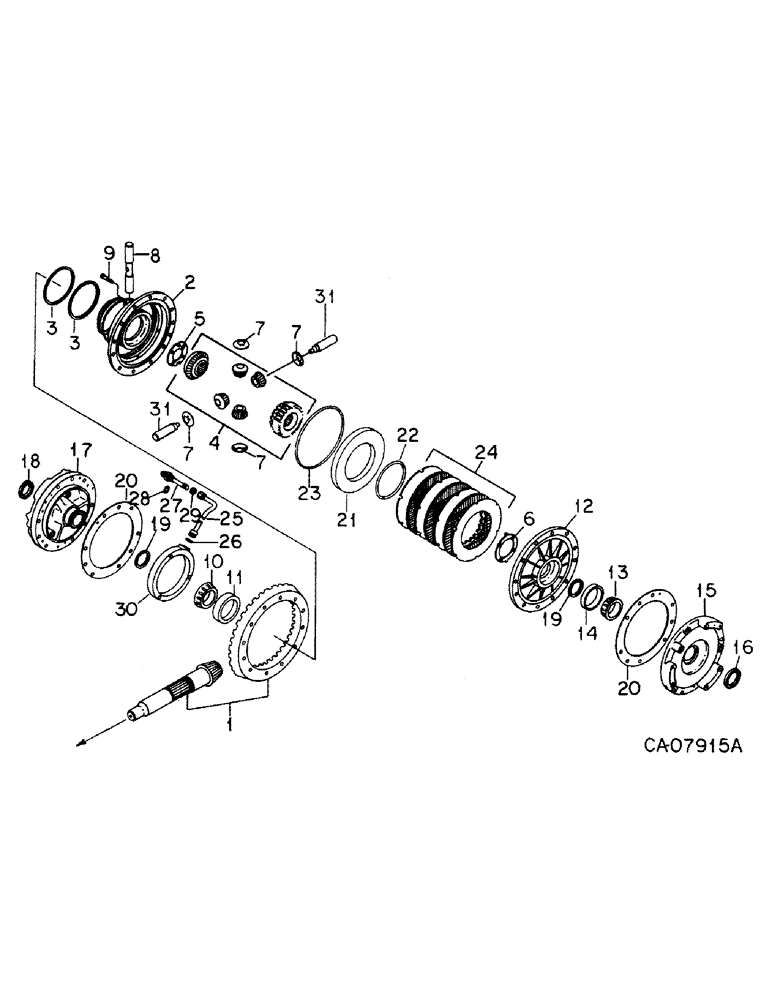

Запчасти Case IH 5488 (07-36) - DRIVE TRAIN, DIFFERENTIAL AND BEVEL GEARS, 5488 TRACTORS (04) - Drive Train

1

1270675C1

GEAR-SET

BEVEL GEARS, matched set

1шт.

2

120677C3

CASE

diff RH, Replaces 1264788C1

1шт.

30386R1

DOWEL,M10 x 55

PIN, 10HD x 55 mm pln dowel

6шт.

3

148939C1

SEALING RING,OD 200.60 mm

RING, diff lock seal or

2шт.

3

139068C1

RING

diff lock seal

2шт.

4

1259772C95

GEAR-SET

GEAR SET, differential, Consists of

1шт.

NSS

NOT SOLD SEPARAT

GEAR, diff bevel, 20T

1шт.

NSS

NOT SOLD SEPARAT

GEAR, diff pinion, 10T

4шт.

NSS

NOT SOLD SEPARAT

GEAR, diff bevel, 20T diff lock

1шт.

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

lock thrust

1шт.

1259766C1

THRUST WASHER

thrust

1шт.

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

pinion thrust, steel

4шт.

5

1259766C1

THRUST WASHER

differential thrust

1шт.

6

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

differential lock thrust

1шт.

7

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

pinion thrust, Replaces 1264522C1

4шт.

If too large in this application, use 1264924C2.

1шт.

8

1270641C1

SHAFT

diff pinion, long, Replaces 1264912C1

1шт.

9

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT, diff pinion pin, Replaces 139190C1

2шт.

10

622336C91

ROLLER BEARING

ASSY, cone RH

1шт.

11

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, diff cup RH

1шт.

12

120683C2

CASE

diff LH

1шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

16 mm hdn

12шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

13

67250C91

BEARING ASSY,3.5433" ID x 5.7087" OD x 1.378"

ASSY, cone LH

1шт.

14

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

BEARING, diff cup LH

1шт.

15

120503C2

RETAINER

LH diff brg

1шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65 mm pln hdn dowel

5шт.

16

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip LH

1шт.

17

139054C93

RETAINER

ASSY, RH diff

1шт.

30348R1

DOWEL,M10 x 60

PIN, 10 x 60 mm pln hdn dowel

3шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65 mm pln hdn dowel

5шт.

934252R1

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

18

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip RH

1шт.

19

139060C1

SEALING RING

RING, diff retainer seal or

2шт.

19

148941C1

RING

diff retainer seal

2шт.

20

1264586C91

PACKAGE

diff. retainer shim, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .178 mm/.007 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .305 mm/.012 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .737 mm/.029 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .102 mm/.004 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .089 mm/.0035 in.

2шт.

21

120490C1

PISTON

diff lock

1шт.

22

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

1шт.

23

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

1шт.

24

1264587C91

PACKAGE

diff. lock friction plate, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PLATE, diff lock friction

3шт.

NSS

NOT SOLD SEPARAT

PLATE, diff lock separator

4шт.

25

120653C2

TUBE,9.52 mm OD, 212, 64 mm Length

ASSY, diff lock

1шт.

26

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

27

120674C1

UNION

diff lock

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

29

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

1шт.

30

120675C1

RING

diff lock slip

1шт.

31

1285776C1

SHAFT

diff pinion, short, Replaces 1264911C1 and 1270642C1 by also ordering bolt, 1285778C1

2шт.

1270687C92

PACKAGE

differential service, 5488 tractors, Consists of Ref. 2, 3, 4, 8, 9, 10, 11, 12, 13, 14, 19, 21, 22, 23, 24, 31 and attaching hardware

1шт.
