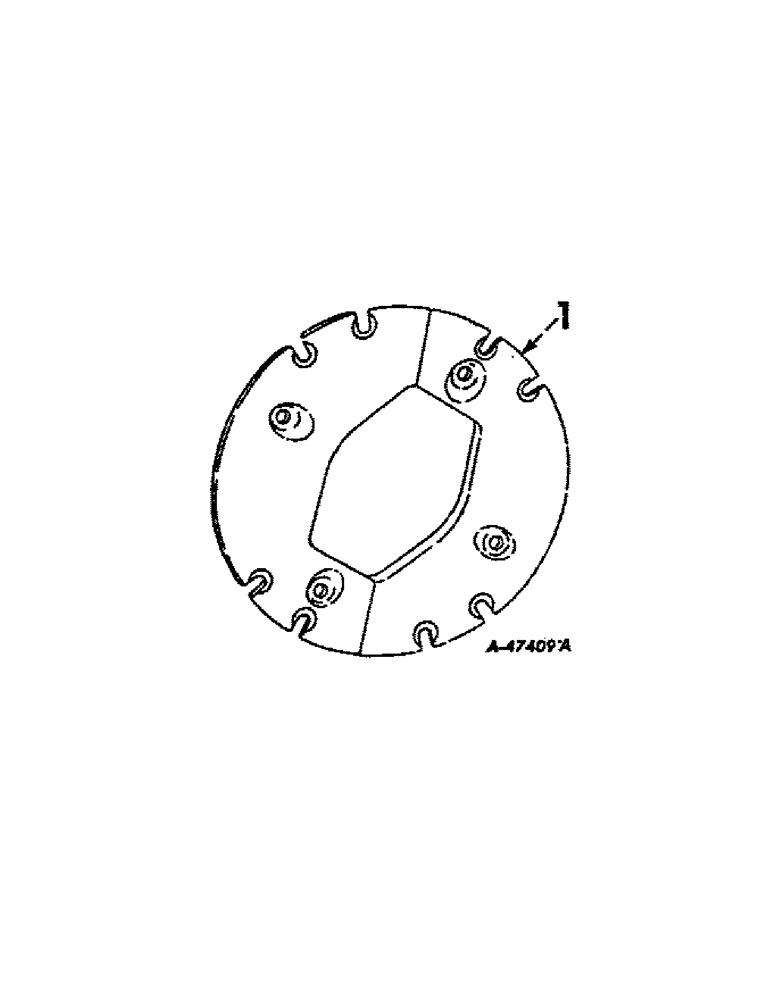

Запчасти Case IH 5488 (15-05[A]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS, SPLIT TYPE Wheels & Traction

1

400078R2

WEIGHT

rear wheel, half, approx 75 lb, 4 for first position

1шт.

67858C1

BOLT,3/4" - 10 x 3.6", Grade 5

weight mtg, 8 used w/34 and 38 in. heavy duty, wedge lock wheels

1шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex jam

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R2

WEIGHT

rear wheel, half, approx 75 lbs, 4 for second or third position

1шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

3/4-10 x 3-1/4 C-Z sq-hd mach, rear wheel weight mounting

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex jam

8шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga znd

16шт.
