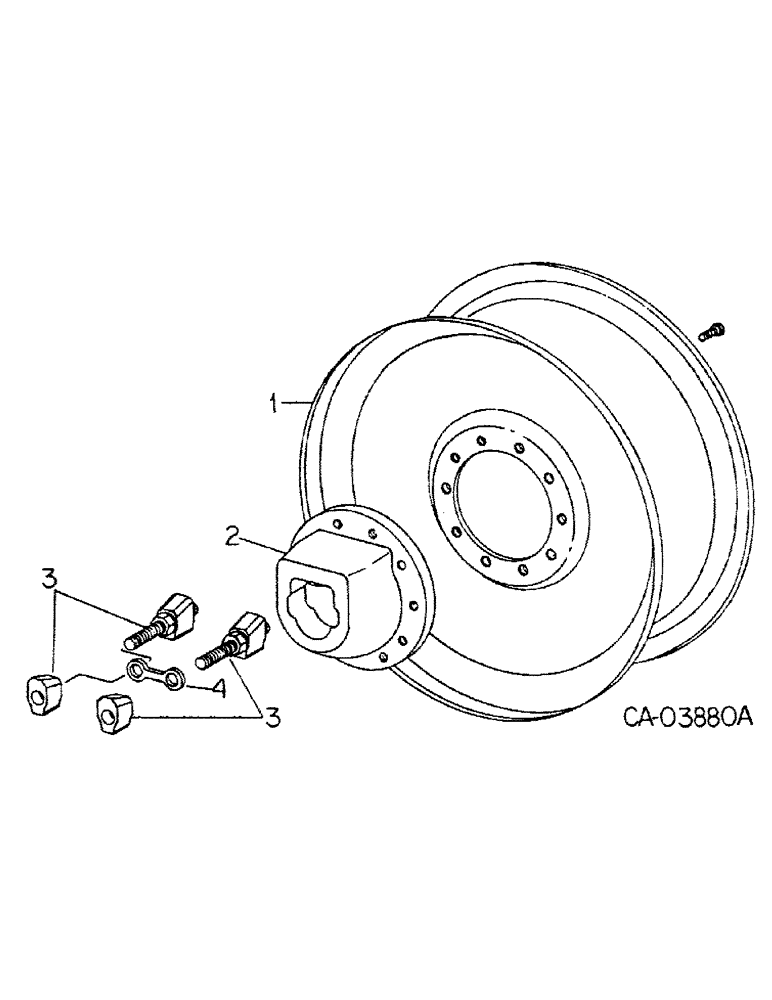

Запчасти Case IH 5488 (15-04) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction

1

139266C1

WHEEL

W16L-38 integral w/disc rear, For 18.4-38 tire, 8.0 in. offset

2шт.

1

139267C1

WHEEL

W18L-38 integral w/disc rear, For 20.8-38 tire, 8.0 in. offset

2шт.

1

1270843C1

WHEEL

W16L-38 integral w/disc rear, For 16.9-38 or 18.4-38 tire, 11 in. offset

2шт.

1

1270844C1

WHEEL

W18L-38 integral w/disc rear, For 20.8-38 tire, 11 in. offset

2шт.

1

1270783C1

RIM

WHEEL, 16-42 integral w/disc rear, For 18.4-42 tire

2шт.

114-801

BOLT,Hex, 7/8" - 14 x 2-1/4", Gr 5

7/8-NF x 2-1/4 type 5

20шт.

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

.938 x 1.750 x .134 hdn

20шт.

2

67337C1

HUB

dual wheel wedge lock, 4 in. axle, 5288 & 5488 tractors

2шт.

2

105007C1

HUB

dual wheel wedge lock, 3.5 in. axle, 5088 tractors

2шт.

3

1287800C91

PACKAGE

wheel wedge, dual

4шт.

4

67478C1

LINK

wedge

2шт.
