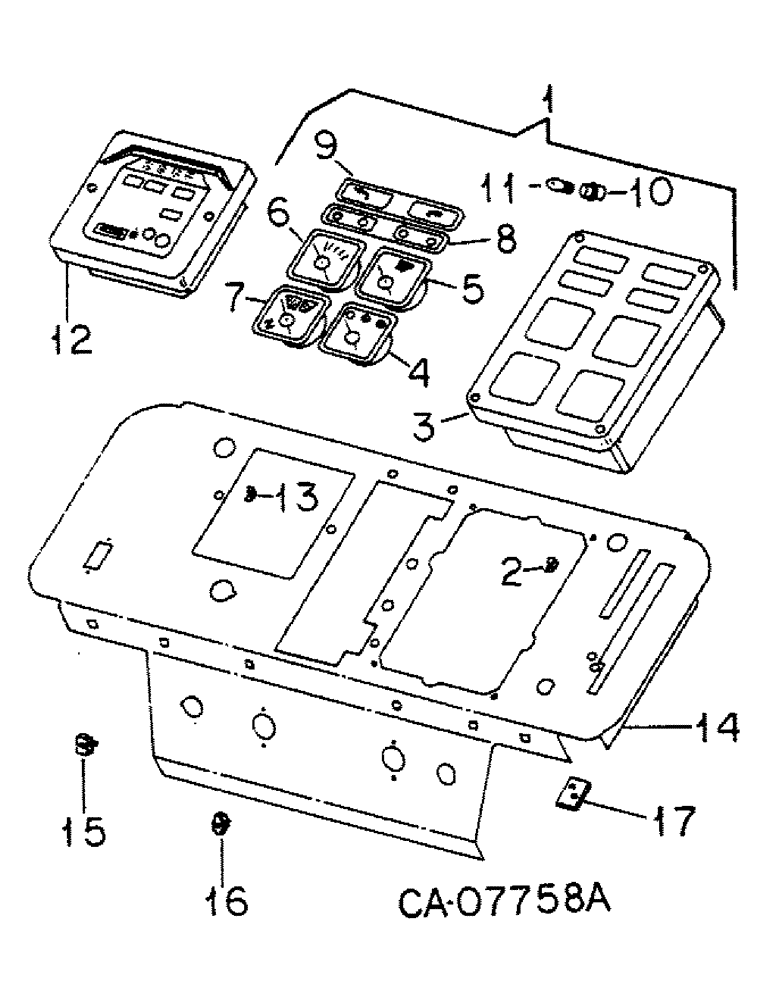

Запчасти Case IH 5488 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

1252533C91

CLUSTER

CLUSTER ASSY, instrument, Includes: Ref. 3 - 11

1шт.

2

103957C1

NUT

NUT, J-shape spring

4шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, 10-16 x 1 o/hdcr tap, polyseal

4шт.

3

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

4

121604C1

ELECTRICAL GAUGE

GAGE, fuel, receiver

1шт.

5

121605C2

ELECTRICAL GAUGE

GAGE, temperature, receiver

1шт.

6

121606C1

ELECTRICAL GAUGE

GAGE, oil pressure, receiver

1шт.

7

121607C1

METER

VOLTMETER

1шт.

8

1252610C1

LENS

LENS, warning lights

1шт.

9

121610C1

LENS

LENS, turn signal

1шт.

10

121611C1

SOCKET

SOCKET ASSY, instrument cluster

8шт.

11

20627R1

BULB,C2F, #194, 14V

BULB, lamp no. 194

8шт.

1252486C2

ELECTRICAL GAUGE

ELECTRICAL GAUGE, new

1шт.

12

1252488C1

REMAN-ELECT GAUGE

GAGE, digital data center, Renewed, Also order product graphic

1шт.

1935041C1

CORE-MONITOR

Return Number, ELECTRICAL GAUGE - for N.A. Only

1шт.

1252419C1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, digital data gage, English, or

1шт.

1252541C1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, digital data gage, Metric

1шт.

13

103957C1

NUT

NUT, J-shape spring

2шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, 10-16 x 1 tap w/polyseal finish

2шт.

14

139354C2

PANEL

PANEL ASSY, instrument, Tractors w/o tilt steering

1шт.

14

148433C3

PANEL

PANEL ASSY, instrument, Tractors w/tilt steering

1шт.

14

1280796C1

PANEL

PANEL ASSY, instrument, Tractors w/dynamic brake

1шт.

15

104035C1

FASTENER

FASTENER, upper inst hsg spacer, nut

1шт.

16

104036C1

NUT

NUT, instrument housing mtg

10шт.

17

1270685C2

BRACKET

BAR, throttle stop, 5488 w/serial no. 2426 and above

1шт.

1270705C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M4 x 10mm

SCREW, throttle stop bar

2шт.

178020

SPARE PART PLUG, 29/32 hole dia pln button, For cigar lighter hole

1шт.
