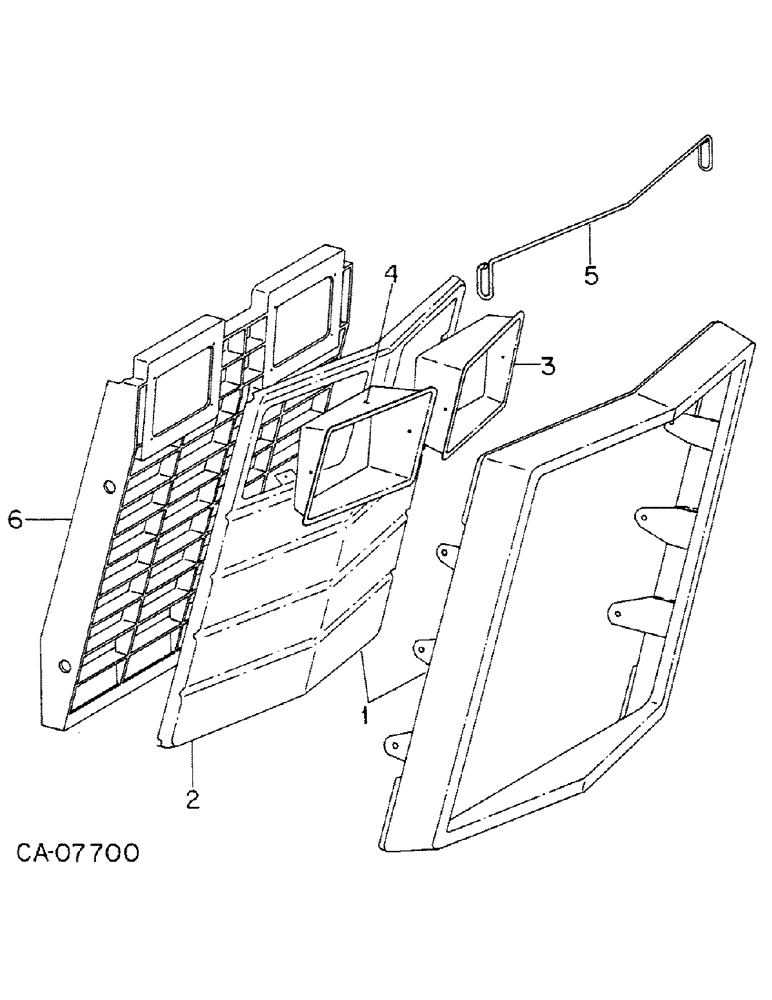

Запчасти Case IH 5488 (06-08) - COOLING, GRILLE, SUPPORTS AND SCREEN Cooling

1

149024C92

HOUSING

ASSY, grille, Includes: Ref.. 2

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

668569R1

WASHER

.344 x 1.500 x .105

6шт.

2

149026C1

SCREEN

front

1шт.

445446

NUT,U, #10-16

10-12 phc u-spr style I

8шт.

3

1251667C1

COLLAR

headlight LH

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, headlight collar mtg, No. 10 x 3/4

4шт.

4

1251668C1

COLLAR

headlight RH

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, headlight collar mtg, No. 10 x 3/4

4шт.

5

149029C2

SUPPORT

grille housing top

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 class 8.8

4шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3 mm phc

4шт.

6

148857C1

GRILLE

LOUVER & HEADLIGHT MTG, front

1шт.

149030C2

BOLT,Hex, M8 x 1.25 - 12mm x 33.50mm

BOLT, louver mtg shoulder

4шт.

149031C1

GROMMET

louver mounting

4шт.

30177R1

WASHER,M12 x 24.5 x 3, HT

13.8 x 24 x 3 mm phc

4шт.
