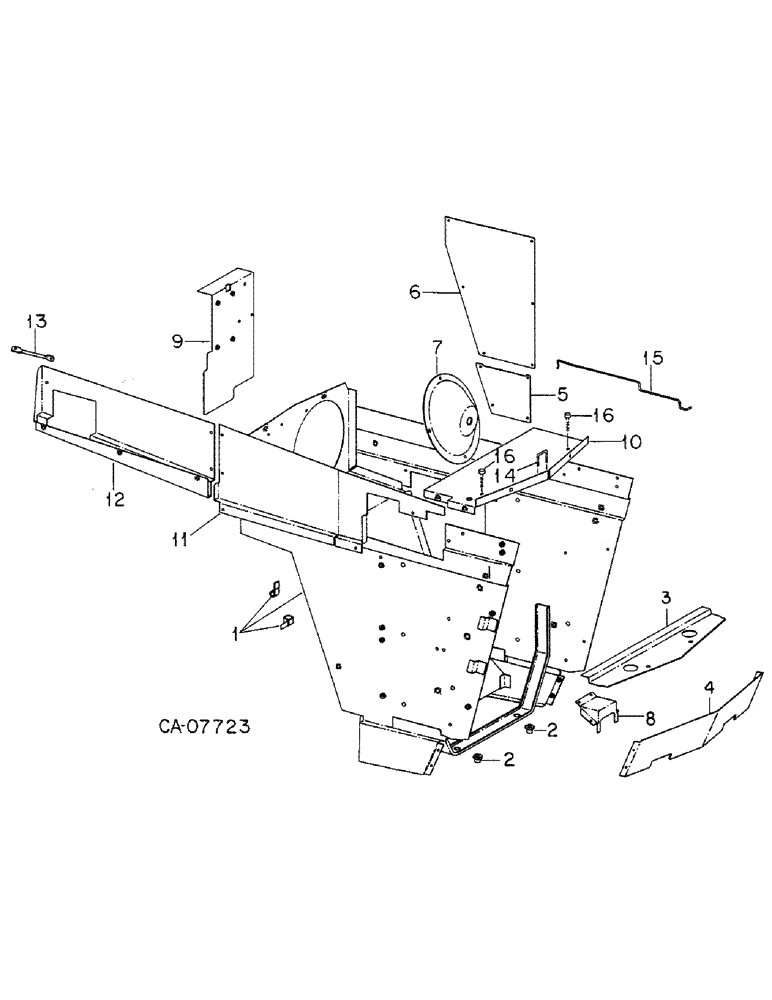

Запчасти Case IH 5488 (06-06) - COOLING, RADIATOR SUPPORT Cooling

1

144045C3

SUPPORT ASSY, radiator

1шт.

130285C1

NUT

M8-1.25 cage

16шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

6шт.

2

139262C1

BUSHING

radiator support mtg, Isomount

4шт.

120389

WASHER,7/16"

.500 x 1.250 x .064, (Or as required)

1шт.

144054C2

WASHER

M10 x 32 x 4 hdn

4шт.

30024R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

M10 x 45 phc class 10.9

4шт.

3

148689C1

SHIELD

lower radiator front

1шт.

3

1280685C1

SHIELD

lower radiator front, Used w/auxiliary lighting att.

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

4

144089C1

PANEL

grille housing lower front

1шт.

30497R1

SCREW,Cross Pan Hd, M6 x 12

M6 x 12 class 4.8 p/hdcr

4шт.

30209R1

WASHER,M6 x 13 x 2, HT

6.4 x 12.5 x 2 mm phc

4шт.

5

149067C2

SUPPORT

rad access, lower, cover

1шт.

931479R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 phc class 8.8

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

2шт.

6

149068C2

SUPPORT

rad access, upper, cover

1шт.

931479R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 phc class 8.8

6шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

6шт.

7

148732C5

HOUSING

fan shaft coupling

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

4шт.

8

149084C1

COVER

lower radiator hose

1шт.

931439R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

M6 x 10 phc class 8.8

4шт.

9

1251929C1

SHIELD

ASSY, radiator support rear

1шт.

931479R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 phc class 8.8

4шт.

10

144168C2

PLATE

ASSY, radiator support top

1шт.

130285C1

NUT

M8-1.25 cage

6шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

6шт.

11

1251607C2

DUCT

ASSY, hood air by pass, Front

1шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

2шт.

12

1251609C2

DUCT

hood air by pass, Rear

1шт.

130285C1

NUT

M8-1.25 cage

3шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

2шт.

13

1251604C1

SUPPORT

hood duct, Rear

1шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.

14

1251635C1

U-BOLT,M6 x 1 x 52mm W x 45mm L

BOLT, top screen latch, Pin

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

4шт.

15

1251831C2

ROD

top screen support

1шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

1шт.

16

1251870C1

CAP

top screen bumper

2шт.

30201R1

BOLT,Hex, M6 x 1 x 60mm, Cl 10.9

M6 x 60 phc class 10.9

2шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.
