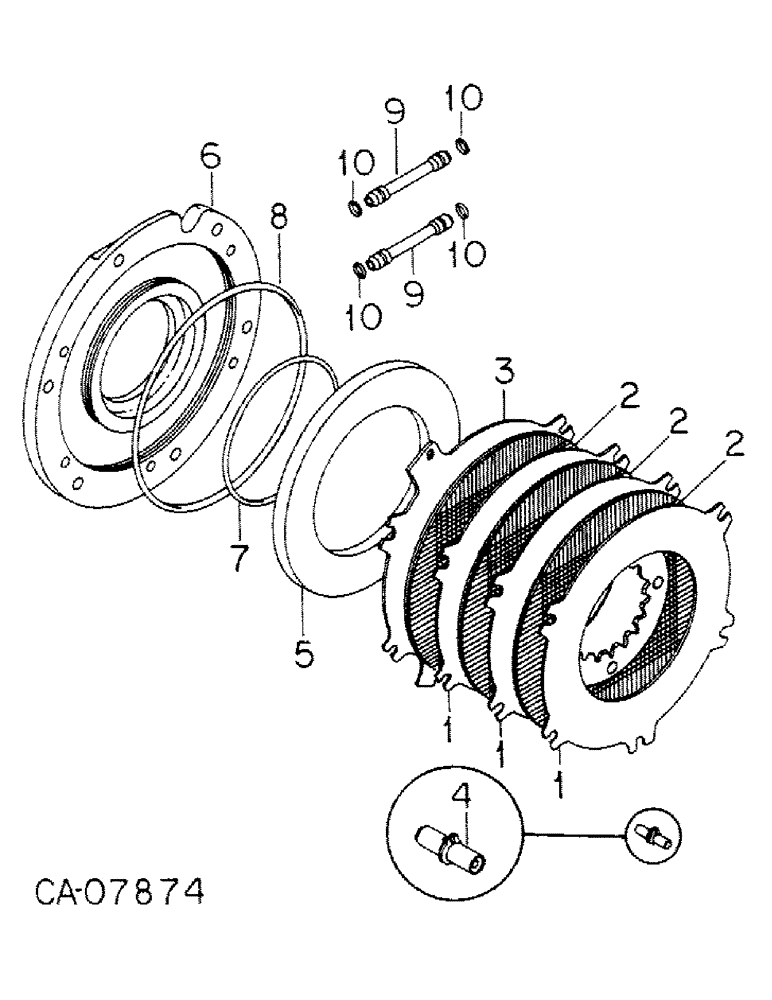

Запчасти Case IH 5488 (04-01) - BRAKES, MASTER BRAKES (5.1) - BRAKES

1

PLATE, separator

1шт.

2

PLATE, brake friction

1шт.

3

PLATE, brake return

2шт.

4

139185C2

TUBE

ASSY, brake adjust

6шт.

5

120490C1

PISTON

brake

2шт.

6

137760C1

COVER

brake

2шт.

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

M16 x 100 pln class 8.8, LH brake cover

6шт.

30391R1

BOLT,Hex, M16 x 110, 8.8

M16 x 110 mm pln type 8.8, RH brake cover

6шт.

7

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

2шт.

8

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

2шт.

9

120514C1

TUBE

oil inlet brake

4шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

8шт.

1264581C91

KIT

PACKAGE, brake plate, Consists of

1шт.

PLATE, separator (NSS)

8шт.

PLATE, brake friction (NSS)

8шт.

PLATE, brake return (NSS)

2шт.

1264584C91

PACKAGE

brake wear switch service, Consists of

1шт.

UNION, brake switch (NSS)

1шт.

O-RING (NSS)

1шт.

STUD, brake wear indicator (NSS)

1шт.

NUT (NSS)

2шт.

WASHER (NSS)

2шт.

INSULATOR, brake wear (NSS)

1шт.

WASHER, brake wear indicator (NSS)

1шт.

CONTACT, brake wear (NSS)

1шт.

WASHER, brake wear contact (NSS)

1шт.

NUT (NSS)

2шт.

CABLE ASSY, brake wear (NSS)

1шт.

BOOT, brake warning switch ret (NSS)

1шт.

WASHER (NSS)

1шт.

NUT (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.

121814C1

RETAINER

brake warning switch boot

2шт.

30264R1

LOCK WASHER,M5

WASHER, 5 mm lock

2шт.

934871R1

NUT,M5, Cl 5

M5 class 5

2шт.
