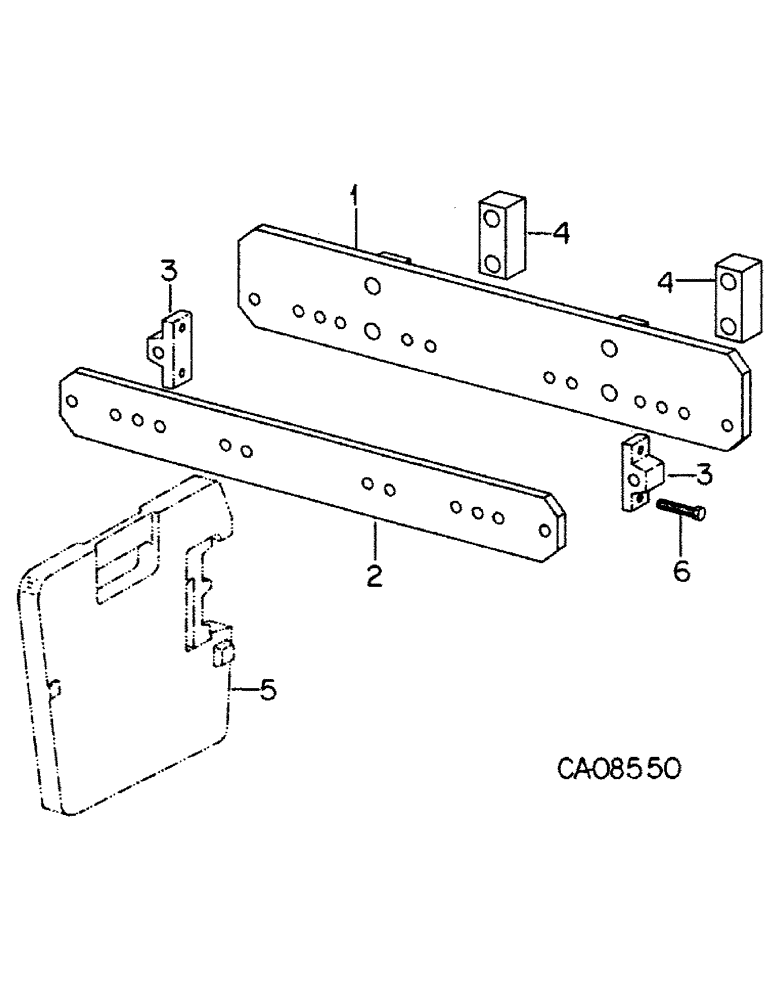

Запчасти Case IH 5488 (09-17) - FRAME, FRONT END WEIGHT MOUNTING BRACKET AND WEIGHTS, FOR USE WITH MAXIMUM OF 20 WEIGHTS (12) - FRAME

1

1280655C1

BRACKET

ASSY, front weight

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

4шт.

31181R1

BOLT,Hex, M24 x 120mm, Cl 8.8

hex hd M24 x 120 znd class 8.8

4шт.

2

1280653C1

PLATE

front weight locking

1шт.

3

1280684C1

BAR

clamping

2шт.

30557R1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 8.8

M20 x 110 mm class 8.8

2шт.

933815R1

LOCK WASHER,M20

WASHER, 20 mm lock

2шт.

30584R1

NUT,M20, Cl 10

M20 class 10

2шт.

4

1271024C1

BAR

front weight spacer

2шт.

31185R1

BOLT,Hex, M24 x 3 x 180mm, Cl 8.8

hex head M24 x 160 class 8.8

4шт.

5

1280656C1

WEIGHT

front end, 100 lbs

20шт.

6

931546R1

BOLT,M12 x 60mm, Cl 8.8

hex hd M12 x 60 A2F 8.8 din 933, weight tightener

4шт.
