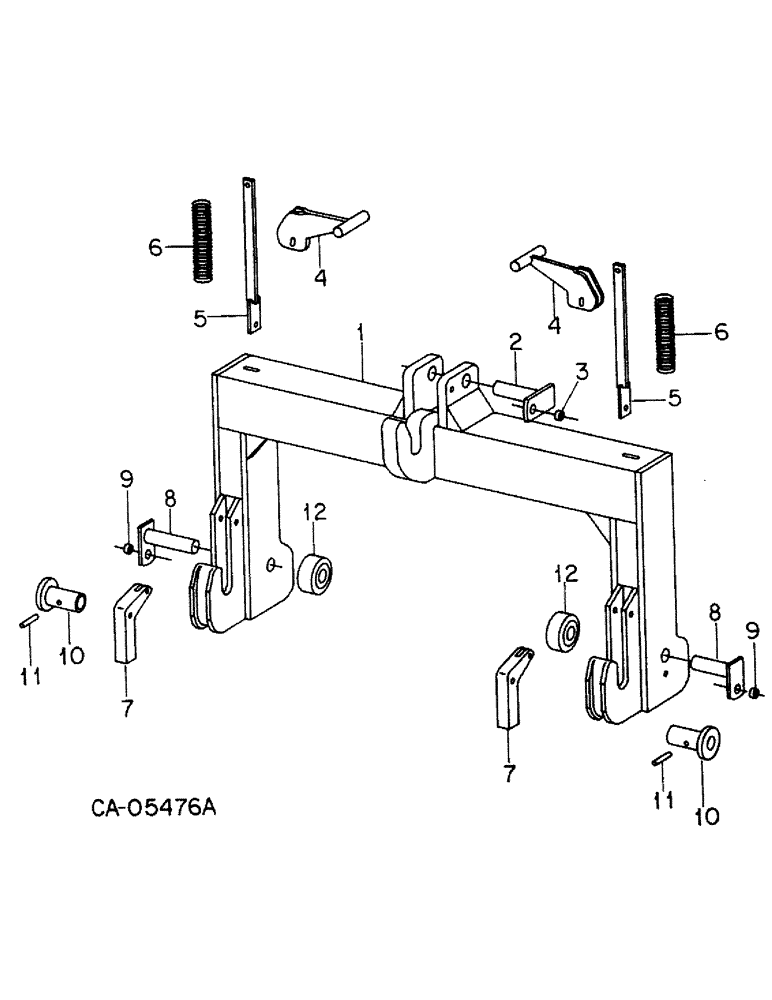

Запчасти Case IH 5488 (09-13) - FRAME, THREE POINT HITCH QUICK COUPLER (12) - FRAME

1255075C91

COUPLING

COUPLER ASSY, category II quick, Also furnish 2 lower link hitch ball bushings 535448R1

1шт.

1255077C91

COUPLING

COUPLER ASSY, category III quick, Replaced by coupler assy 1272228C91, See following illustration

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, coupler main, Category II, Not serviced separately Order coupler assy 1255075C91

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, coupler main, Category III, Not serviced separately Order coupler assy, 1255077C91

1шт.

2

64712C1

PIN

ASSY, upper link, Category II

1шт.

2

64721C1

LARGE PIN

PIN ASSY, upper link, Category III, Use w/1255077C91 coupler

1шт.

3

64714C1

BUSHING

pin retainer

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

1шт.

4

64715C1

HANDLE

ASSY, latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1.062 pln clevis

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

1266789C1

BAR

spring, Category II

2шт.

5

1266790C1

BAR

spring, Category III

2шт.

6

64717C1

SPRING

latch

2шт.

7

1266791C1

LUG

lock, latch, Category II

2шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

28385R1

PIN, 1/2 x 2-1/4 hvy pln cld spr

2шт.

7

1266792C1

LUG

lock, latch, Category III

2шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

8

1255079C1

PIN

ASSY, lower link, Category II

2шт.

8

64722C1

PIN

ASSY, lower link, Category III, Use w/1255077C91 coupler

2шт.

9

64714C1

BUSHING

pin retainer

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

2шт.

10

401232R1

ADAPTER

implement lower hitch pin

2шт.

11

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

12

401233R1

COLLAR

BUSHING, implement lower htich pin, Category III

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.
