(09-12[A]) - FRAME, HITCH DROP RATE ADJUSTING CABLE

Запчасти Case IH 5488 (09-12[A]) - FRAME, HITCH DROP RATE ADJUSTING CABLE (12) - FRAME

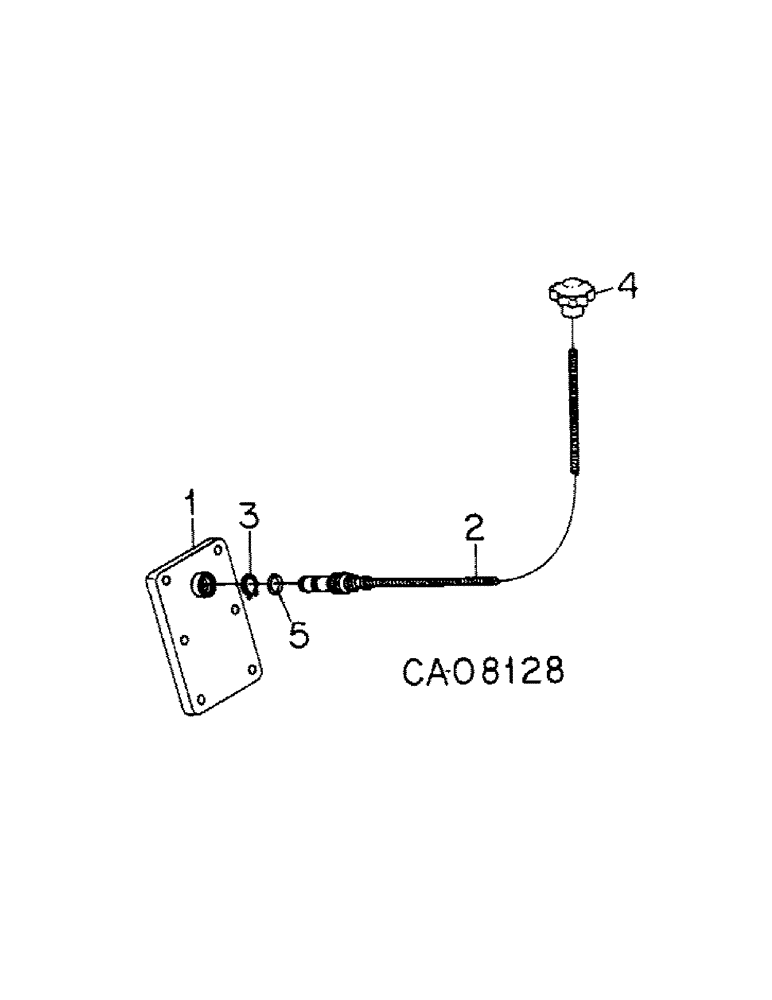

Схема запчастей Case IH 5488 - (09-12[A]) - FRAME, HITCH DROP RATE ADJUSTING CABLE (12) - FRAME
4
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1253259C91

KIT

PARTS ACCESSORY, hitch drop rate adjusting cable, Consists of Ref. 1 - 5 and instructions

1шт.

1

130679C2

COVER

ASSY, valve adjusting

1шт.

2

1253210C1

CABLE

CORE, valve adjusting cable, screw

1шт.

3

971043R1

SNAP RING,#50, Ext

1шт.

4

130678C2

KNOB

valve adjusting

1шт.

5

130682C1

O-RING

size no. 109

1шт.
