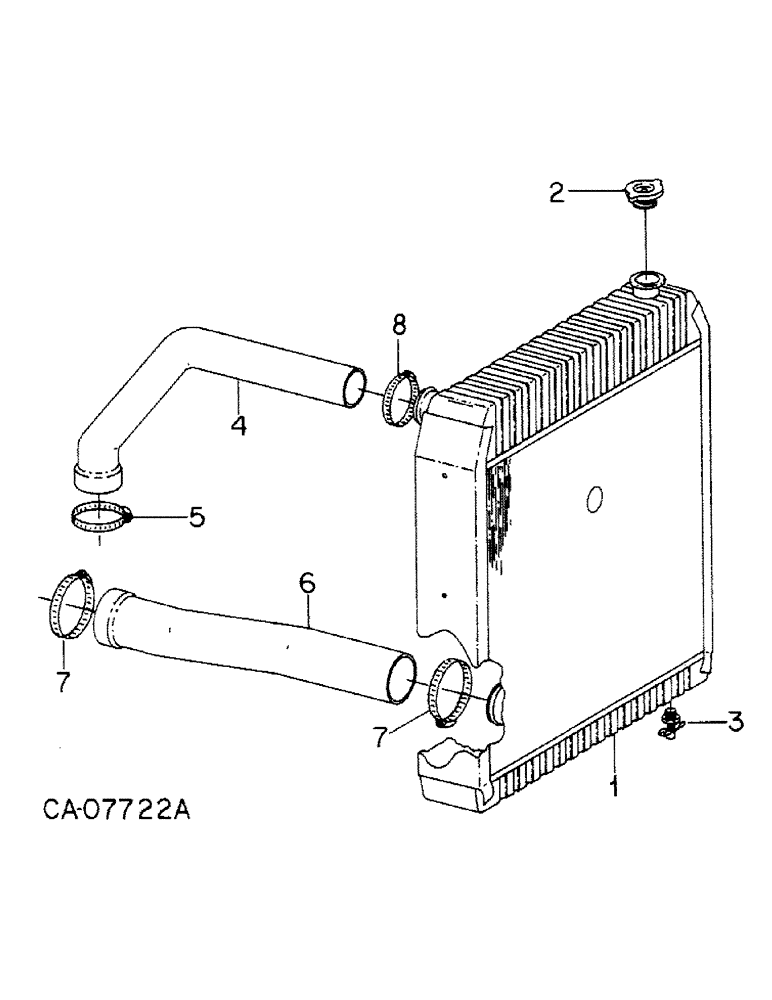

Запчасти Case IH 5488 (06-03) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

146572C2

RADIATOR

ASSY, less filler cap

1шт.

1

146508C1

RADIATOR

ASSY, less filler cap, 5488 tractors w/air conditioning and heater

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

6шт.

2

532673R1

CAP

ASSY, radiator

1шт.

3

614201R1

VALVE

radiator drain

1шт.

4

120780C1

RADIATOR HOSE,50.80 mm ID, 57.20 mm ID x 546.00 mm, SAE 20R4 CLASS D-1

Inlet 50.80 mm ID, 57.20 mm ID x 546.00 mm, SAE 20R4 CLASS D-1

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 shoe type F hose

1шт.

6

120779C1

RADIATOR HOSE,63.50 mm ID, 66.50 mm ID x 392.00 mm, SAE 20R4 CLASS D-1

Outlet 63.50 mm ID, 66.50 mm ID x 392.00 mm, SAE 20R4 CLASS D-1

1шт.

7

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP, no. 48 shoe type F hose

2шт.

8

995221R1

CLAMP

no. 32 type F hose

1шт.
