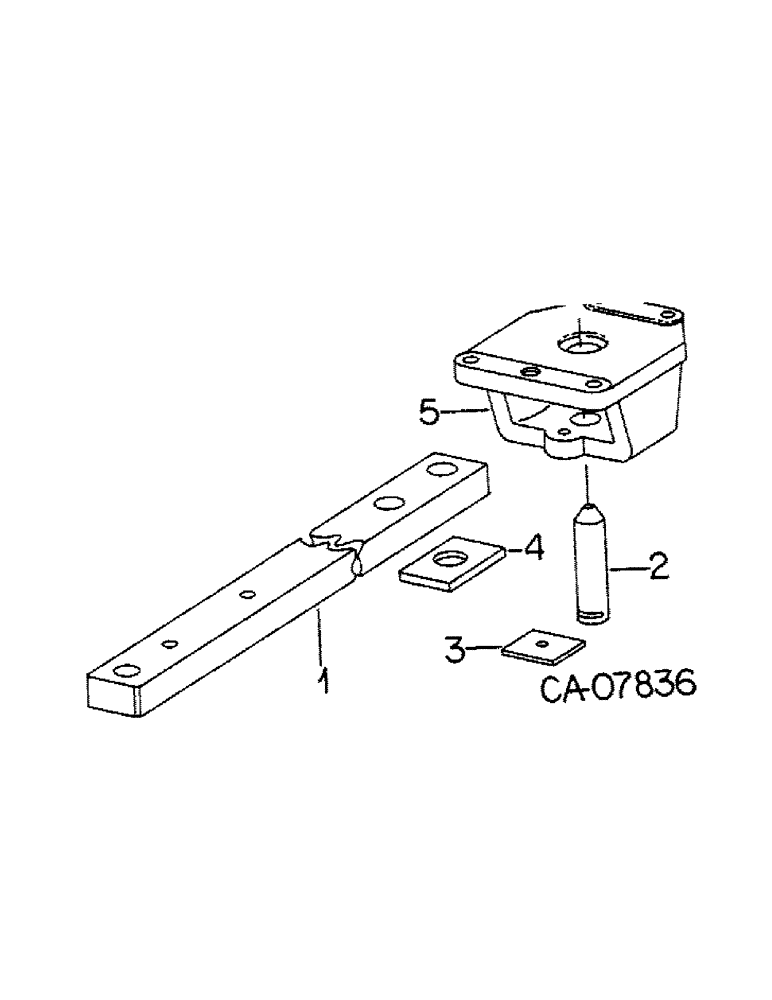

Запчасти Case IH 5488 (09-09[A]) - FRAME, SWINGING DRAWBAR, 5288 AND 5488 TRACTORS, PART OF THREE POINT HITCH (12) - FRAME

1

142616C2

BAR

DRAWBAR, swinging, 1535 mm, swinging frawbar 5288 and 5488 tractors part of three point hitch

1шт.

30077R1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

M16 x 120 phc class 10.9, swinging drawbar 5288 and 5488 tractors part of three point hitch

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10, swinging drawbar 5288 and 5488 tractors part of three point hitch

2шт.

2

224618C1

PIN,34.87mm OD x 150mm L

drawbar pivot, swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.

3

67828C1

RETAINER

drawbar pivot pin, swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 phc class 10.9, swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.

933834R1

LOCK WASHER,M12

WASHER, 12MM pln lock, swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.

4

224619C2

SPACER

drawbar pivot, swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.

5

SUPPORT ASSY, swinging drawbar pivot, Refer to rear frame and covers, group 7 , swinging drawbar 5288 and 5488 tractors part of three point hitch

1шт.
