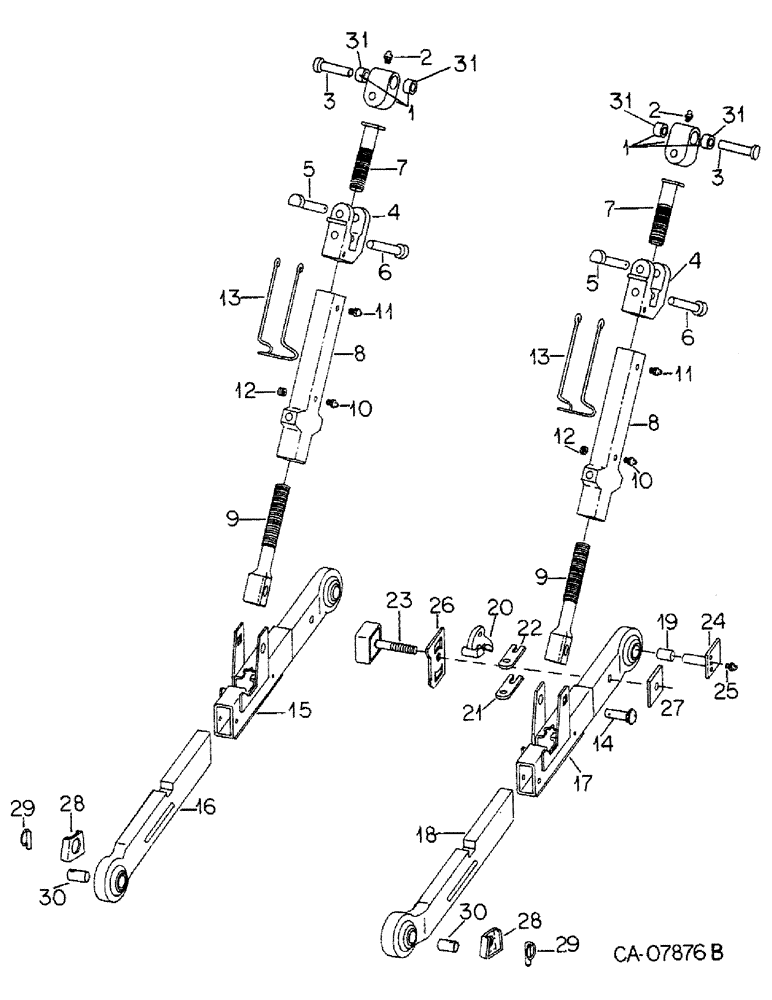

Запчасти Case IH 5488 (09-06) - FRAME, TELESCOPING LOWER LINKS, FOR TRACTORS WITH THREE POINT HITCH (12) - FRAME

1

1286725C91

BRACKET, PIVOT

SWIVEL ASSY, lift link, Replaces 1252115C91 by also ordering fitting, 109461

2шт.

2

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub, 5088 w/serial no. 7797 and below, 5288 w/serial no. 5629 and below, 5488 w/serial no. 3685 and below

2шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 5088 w/serial no. 7798 and above, 5288 w/serial no. 5630 and above, 5488 w/serial no. 3686 and above 1/8"-27 x .66 lg

2шт.

3

108590C1

PIN,19.05mm OD x 120.65mm L

headed

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

108585C1

YOKE

lift link

2шт.

5

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

6

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

2шт.

480523R1

HAIR PIN COTTER

quick attachable

2шт.

7

149838C1

ROD

upper leveling

2шт.

8

149836C2

TURNBUCKLE

2шт.

9

149837C1

ROD

lower leveling

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

10

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING, 1/4-18 ptf E/short lub

2шт.

11

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub, 5088 w/serial no. 7797 and below, 5288 w/serial no. 5629 and below, 5488 w/serial no. 3685 and below

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 5088 w/serial no. 7798 and above, 5288 w/serial no. 5630 and above, 5488 w/serial no. 3686 and above 1/8"-27 x .66 lg

2шт.

12

444691

PLUG

1/4-18 auto hex-soc-pipe

2шт.

13

123464C1

CLAMP

turnbuckle lock, bail

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

14

109088C3

CARRIAGE BOLT

PIN, leveling screw housing, sq neck

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

15

109060C91

LINK

W/BUSHING, front section LH, 5088 S/N 5639 and below, 5288 S/N 2291 and below, 5488 S/N 518 and below

1шт.

15

1266815C93

LINK

W/BUSHING, front section LH, 5088 S/N 5640 and above, 5288 S/N 2292 and above, 5488 S/N 519 and above

1шт.

16

398395R3

LINK

ASSY, rear section LH, 5088 S/N 5639 and below, 5288 S/N 2291 and below, 5488 S/N 518 and below

1шт.

16

1266820C1

LINK

ASSY, rear section LH, 5088 S/N 5640 and above, 5288 S/N 2292 and above, 5488 S/N 519 and above

1шт.

17

109061C91

LINK

W/BUSHING, front section RH, 5088 S/N 5639 and below, 5288 S/N 2291 and below, 5488 S/N 518 and below

1шт.

17

1266816C93

LINK

W/BUSHING, front section RH, 5088 S/N 5640 and above, 5288 S/N 2292 and above, 5488 S/N 519 and above

1шт.

18

398396R3

LINK

ASSY, rear section RH, 5088 S/N 5639 and below, 5288 S/N 2291 and below, 5488 S/N 518 and below

1шт.

18

1266821C1

LINK

ASSY, rear section RH, 5088 S/N 5640 and above, 5288 S/N 2292 and above, 5488 S/N 519 and above

1шт.

19

71808C1

BUSHING

front lower link ball, plastic or

2шт.

19

1272681C1

BUSHING,25.59mm ID x 31.8mm OD x 44.45mm L

front lower link ball, heavy duty steel

2шт.

20

398399R1

LATCH

lower link

2шт.

21

382192R1

SPRING

lower link latch

2шт.

22

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

2шт.

31029R1

PIN,M12 x 60, Coiled

12 x 60 mm pln cld spr

2шт.

23

224499C3

BUMPER

ASSY, cam

2шт.

22244R1

LOCK NUT

3/4 p/t lock type 5

2шт.

24

70461C2

PIN

lower link

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

26

70478C1

SPACER

Cat. III

2шт.

27

70479C1

SHIM

.067 thick

10шт.

27

70480C1

SHIM

.033 thick

2шт.

28

404788R1

SHIELD

lower link pin

2шт.

29

392181R91

PIN

ASSY, lower link

2шт.

30

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

BUSHING, ball spacer, For use w/category II tools

2шт.

31

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel

4шт.
