Запчасти Case IH 5488 (09-05[A]) - FRAME, HITCH LIFT ASSIST, SINGLE CYLINDER (12) - FRAME

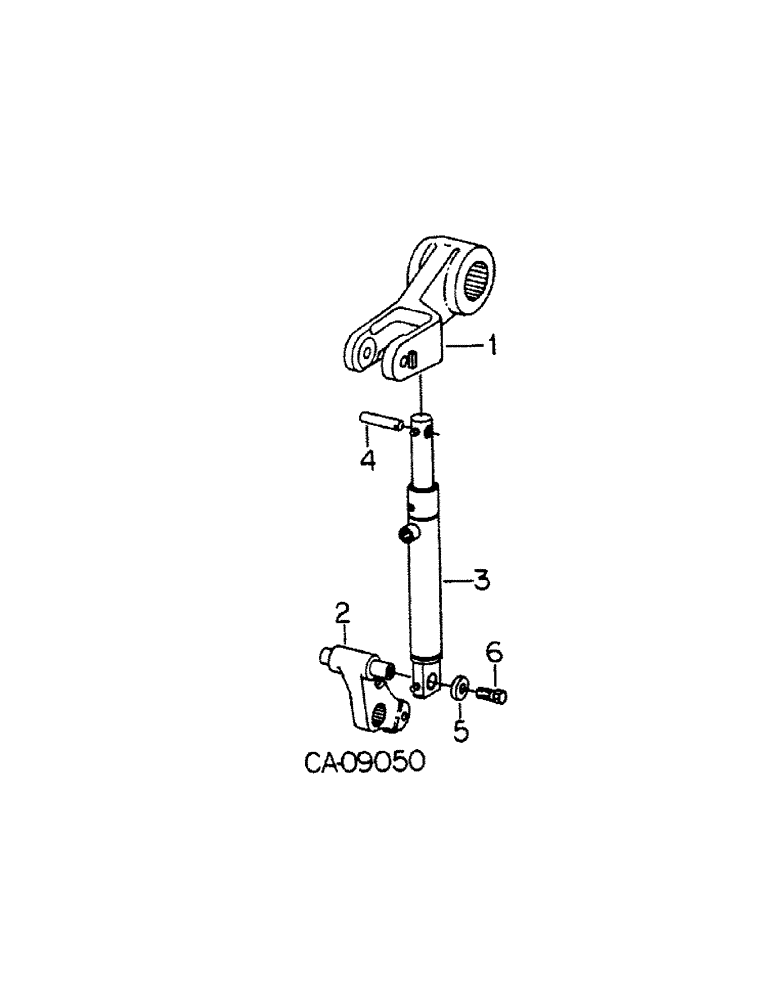

Схема запчастей Case IH 5488 - (09-05[A]) - FRAME, HITCH LIFT ASSIST, SINGLE CYLINDER (12) - FRAME
4
1
3
6
2
5

Артикул

Название

Примечание

Количество

1

145469C2

ARM

rockshaft RH, hitch lift assist single cylinder

1шт.

2

145470C2

SUPPORT

BRACKET, torsion bar anchor RH, hitch lift assist single cylinder

1шт.

934185R1

LOCK WASHER,M16

WASHER, 16 mm lock, hitch lift assist single cylinder

2шт.

931570R1

BOLT, M16 x 95 pln class 8.8, hitch lift assist single cylinder

1шт.

30078R1

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

M16 x 130 phc class 10.9, hitch lift assist single cylinder

1шт.

3

149699C94

CYLINDER

ASSY, 1.5 x 10.76 ram type hyd, See cyl-1 for components See group 10 this catalog for hoses and connections, hitch lift assist single cylinder

1шт.

79616C1

PACKAGE

KIT, cylinder o-ring and seal service, hitch lift assist single cylinder

1шт.

4

145474C1

PIN,19.05mm OD x 112mm L

cylinder mounting, hitch lift assist single cylinder

1шт.

30570R1

SPLIT PIN/SAFETY PIN

PIN, 6 x 55 mm pln cld spr, hitch lift assist single cylinder

1шт.

5

145678C2

WASHER

Flat M17, hitch lift assist single cylinder

1шт.

6

30607R1

BOLT,Hex, M16 x 2 x 210mm, Cl 10.9

M16 x 210 phc class 10.9, hitch lift assist single cylinder

1шт.

934185R1

LOCK WASHER,M16

WASHER, 16 mm lock, hitch lift assist single sylinder

1шт.

Выбрано товаров: 12
