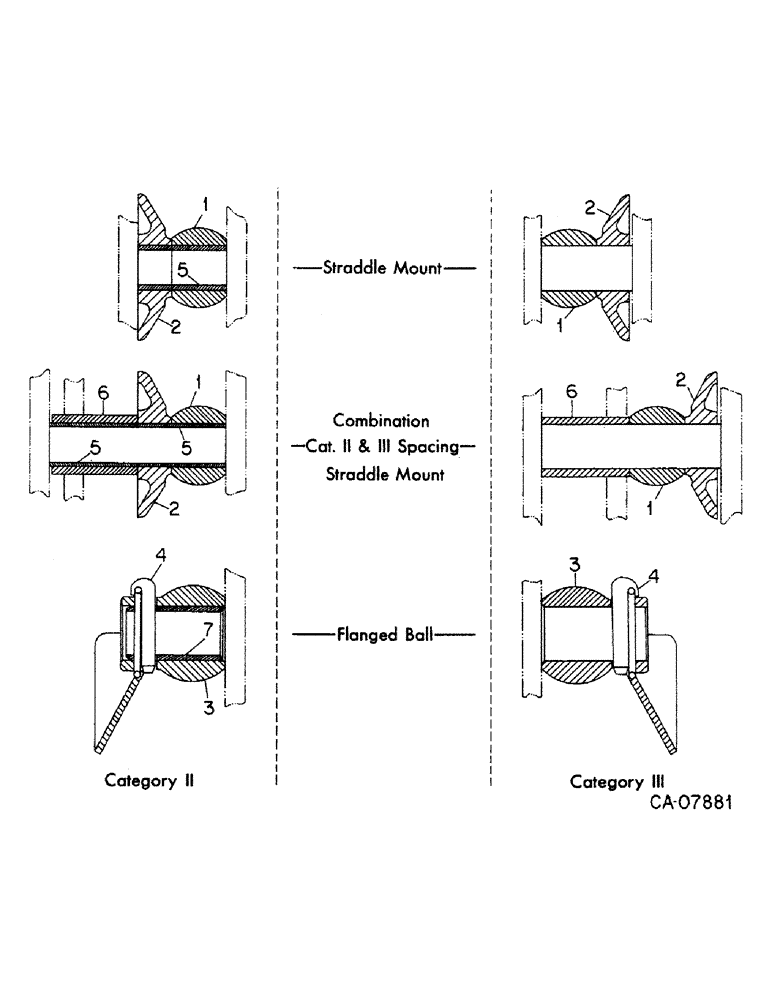

Запчасти Case IH 5488 (09-04) - FRAME, THREE POINT HITCH BALLS (12) - FRAME

1

224783C1

BALL

cat III plain

2шт.

2

1263454C1

FLANGE

CONE, guide

2шт.

3

224742C2

BALL

ASSY, cat III flange

2шт.

4

224781C1

PIN,11.13mm OD

ASSY, ball retainer

2шт.

5

1263456C1

SPACER

ball, Cat 2/3 bushing, For use w/Cat II tools

4шт.

6

1252271C1

BUSHING

Cat III spacer

2шт.

7

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

ball, Cat 2/3 bushing, For use w/Cat II tools

2шт.

1252021C92

BALL

PARTS ACCESSORY, Cat III plain ball, Consists of Refs 1, 2, 5 and 6

1шт.

1252023C91

BALL

PARTS ACCESSORY, Cat III flanged ball, Consists of Refs 3, 4 and 7

1шт.
