Запчасти Case IH 5488 (09-02) - FRAME, THREE POINT HITCH WITH CAM SWAY LIMITER AND CLAW LOWER LINKS (12) - FRAME

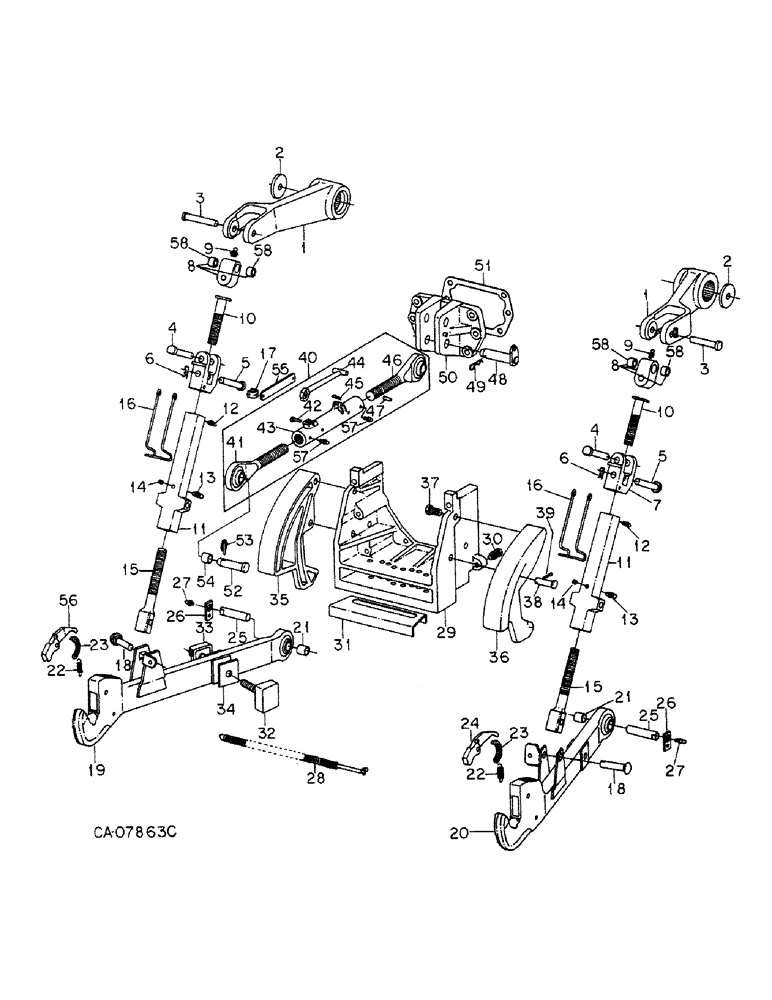

Схема запчастей Case IH 5488 - (09-02) - FRAME, THREE POINT HITCH WITH CAM SWAY LIMITER AND CLAW LOWER LINKS (12) - FRAME
39
17
5
30
21
11
27
8
47
26
18
2
9
48
6
34
58
7
3
58
50
10
54
25
36
11
24
57
41
29
1
42
15
37
20
4
3
9
40
10
25
12
18
8
16
22
2
52
15
33
23
13
56
43
12
58
1
28
26
51
32
38
49
14
55
58
57
6
46
4
5
53
31
13
21
44
45
22
19
14
16
23
35
27

Артикул

Название

Примечание

Количество

1

145655C1

ARM

ROCKSHAFT

2шт.

2

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

3

108590C1

PIN,19.05mm OD x 120.65mm L

headed

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

5

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

2шт.

6

480523R1

HAIR PIN COTTER

quick attachable

2шт.

7

108585C1

YOKE

lift link

2шт.

8

1286725C91

BRACKET, PIVOT

SWIVEL ASSY, lift link, Replaces 1252115C91 by also ordering fitting, 109461

2шт.

9

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub, 5088 w/serial no. 7797 and below, 5288 w/serial no. 5629 and below, 5488 w/serial no. 3685 and below

2шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 5088 w/serial no. 7798 and above, 5288 w/serial no. 5630 and above, 5488 w/serial no. 3686 and above 1/8"-27 x .66 lg

2шт.

10

149838C1

ROD

upper leveling

2шт.

11

149836C2

TURNBUCKLE

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub, 5088 w/serial no. 7797 and below, 5288 w/serial no. 5629 and below, 5488 w/serial no. 3685 and below

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 5088 w/serial no. 7798 and above, 5288 w/serial no. 5630 and above, 5488 w/serial no. 3686 and above 1/8"-27 x .66 lg

2шт.

13

273349

FITTING

1/4-18 special extra short lub

2шт.

14

444691

PLUG

1/4-18 auto hex-soc-pipe

2шт.

15

149837C1

ROD

lower leveling

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

16

123464C1

CLAMP

turnbuckle lock, bail

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

17

1252260C1

BRACKET

spring assy storage

1шт.

NLS

NO LONGER SERVICED

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

18

109088C3

CARRIAGE BOLT

PIN, leveling screw housing sq-neck

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

19

224642C92

ARM

BUSHING AND LINK ASSY, lower LH, Includes Ref. 21

1шт.

20

224643C93

BUSHING

AND LINK ASSY, lower RH, Includes Ref. 21

1шт.

21

71808C1

BUSHING

front lower link ball or

2шт.

21

1272681C1

BUSHING,25.59mm ID x 31.8mm OD x 44.45mm L

front lower link ball, Heavy duty steel

2шт.

22

1263338C1

SPRING

claw latch

2шт.

30372R1

PIN,M6 x 40, Coiled

6 x 40 mm pln cld-spr

2шт.

23

224653C1

LINK

claw latch

2шт.

24

1266999C1

LATCH

claw RH

1шт.

30758R1

PIN,M16 x 40, Coiled

16 x 40 mm znp cld spr

1шт.

25

406686R2

PIN,25.4mm OD x 122.43mm L

lower link

2шт.

26

406687R1

RETAINER

lower link pin

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

28

1252040C91

SPRING

ASSY, spacer, Only serviceable components are

1шт.

30953R1

LOCK PIN,M5 x 24, Slotted

PIN, #5 x 24 mm pln slt-spr

1шт.

591107R1

COTTER PIN

quick attachable cot.

1шт.

79936C1

PLUG

threaded

1шт.

29

142615C1

SUPPORT

cam limiter and drawbar

1шт.

67872C1

WASHER

.656 x 1.25 x .25 thick

8шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30363R1

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

M16 x 190 phc class 10.9

4шт.

30819R1

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

M16 x 190 phc p/t class 10.9

2шт.

30

142621C1

BOLT,Hex, M16 x 55mm, Cl 10.9

SCREW, draft adjusting

2шт.

142622C1

NUT

M16 hex. jam

2шт.

31

123121C1

CHANNEL

drawbar wear

1шт.

32

224499C3

BUMPER

cam

2шт.

22244R1

LOCK NUT

3/4 p/t lock type 5

2шт.

33

1266811C1

SPACER

category III

2шт.

34

70479C1

SHIM

.067 thick

12шт.

34

70480C1

SHIM

.033 thick

2шт.

35

142583C1

CAM

sway limiter LH

1шт.

36

142584C1

CAM

sway limiter RH

1шт.

37

27432R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Cl 8

3/4 x 1-3/4 phc p/t type 8

2шт.

38

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 1

2шт.

39

407208R1

PACKAGE

quick attachable cotter pin, Use two pins from package

1шт.

40

1252108C94

TURNBUCKLE

ASSY, upper link, Consists of Ref. 41 - 47

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

2шт.

41

1252109C2

LIFT LINK END ASSY

ASSY, LH thread

1шт.

30797R1

PIN,M6 x 36, Coiled

6 x 36MM pln cld spr

1шт.

42

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1.750 pln hd type 1

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

43

1252111C2

TURNBUCKLE

1шт.

44

108592C2

HANDLE

upper link turnbuckle

1шт.

45

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

46

1252112C2

LIFT LINK END ASSY

ASSY, RH thread

1шт.

47

30797R1

PIN,M6 x 36, Coiled

6 x 36 mm pln cld spr

1шт.

48

392208R11

PIN

ASSY, upper link bracket

1шт.

49

486830R1

COTTER PIN

PIN, quick attachable cotter

1шт.

50

142613C1

BRACKET

ASSY, upper link

1шт.

30095R1

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

M20 x 80 phc class 10.9

6шт.

51

142630C1

GASKET

upper link bracket

1шт.

52

392211R2

PIN

upper link implement, Category III

1шт.

52

374132R1

PIN

upper link implement, For use w/category II tools

1шт.

53

392181R91

PIN

ASSY, upper and lower link

1шт.

54

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear ball, For use w/category II tools

1шт.

55

1263344C1

BAR

spring storage bracket

1шт.

56

1266903C1

LATCH

claw LH

1шт.

30758R1

PIN,M16 x 40, Coiled

16 x 40 mm znp cld spr

1шт.

57

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

2шт.

58

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel

4шт.
