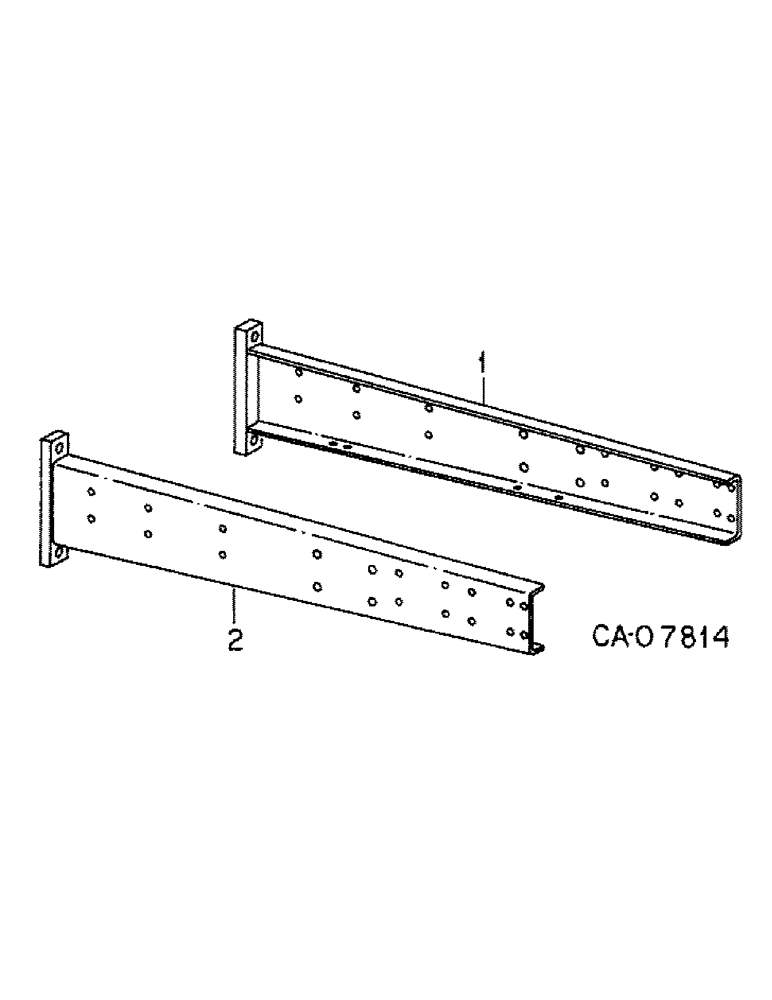

Запчасти Case IH 5488 (09-01) - FRAME, FRONT FRAME CHANNELS, TWO WHEEL DRIVE TRACTORS (12) - FRAME

1

120741C3

CHANNEL

ASSY, LH front frame

1шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

channel side to bolster Hex, M16 x 35, 10.9, Full Thd

4шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

30409R1

BOLT,Hex, M22 x 2.5 x 110mm, Cl 10.9

M22 x 110 phc class 10.9

2шт.

2

120742C3

CHANNEL

ASSY, RH front frame

1шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30170R1

NUT,M16, Cl 10

M16 x phc class 10

2шт.

30409R1

BOLT,Hex, M22 x 2.5 x 110mm, Cl 10.9

M22 x 110 phc class 10.9

2шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 pln type 5

4шт.
