Запчасти Case IH 5488 (09-01[A]) - FRAME, FRONT FRAME CHANNELS, ALL WHEEL DRIVE TRACTORS (12) - FRAME

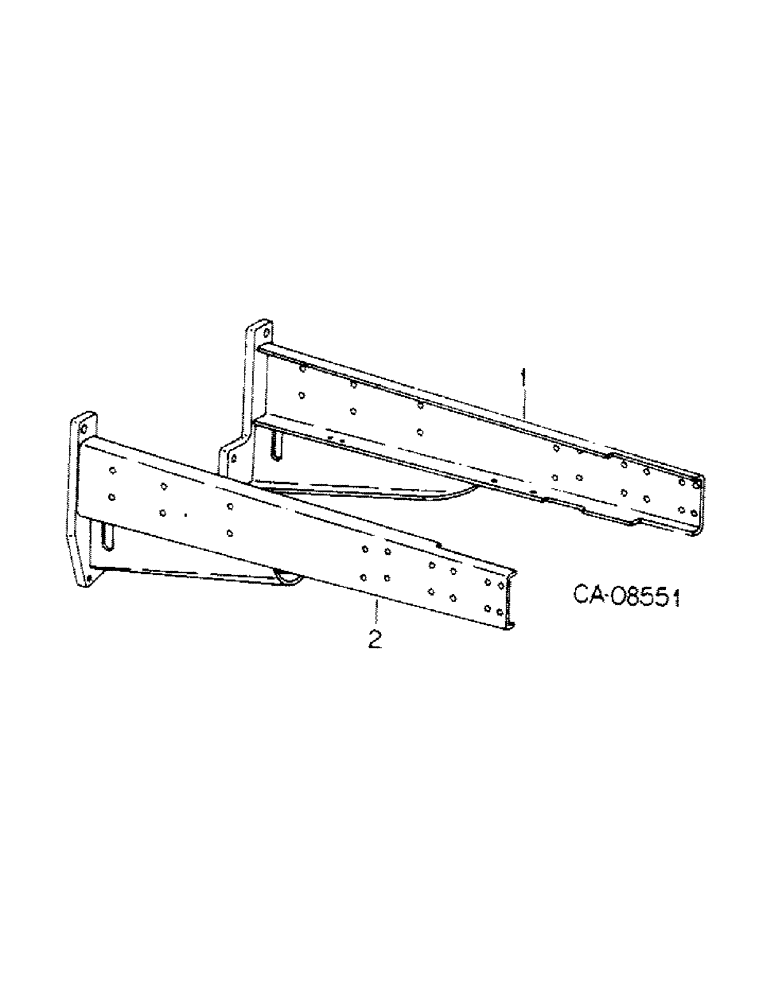

Схема запчастей Case IH 5488 - (09-01[A]) - FRAME, FRONT FRAME CHANNELS, ALL WHEEL DRIVE TRACTORS (12) - FRAME
2
1

Артикул

Название

Примечание

Количество

1

1280574C2

CHANNEL

ASSY, LH front frame, front frame channels all wheel drive tractors

1шт.

30075R1

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

M16 x 100 phc class 10.9, front frame channels all wheel drive tractors

1шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

front frame channels all wheel drive tractors Hex, M16 x 50, 10.9, Full Thd

2шт.

2

1280575C2

CHANNEL

ASSY, RH front frame, front frame channels all wheel drive tractors

1шт.

30075R1

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

M16 x 100 phc class 10.9, front frame channels all wheel drive tractors

1шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

front frame channels all wheel drive tractors Hex, M16 x 50, 10.9, Full Thd

2шт.

Выбрано товаров: 6
