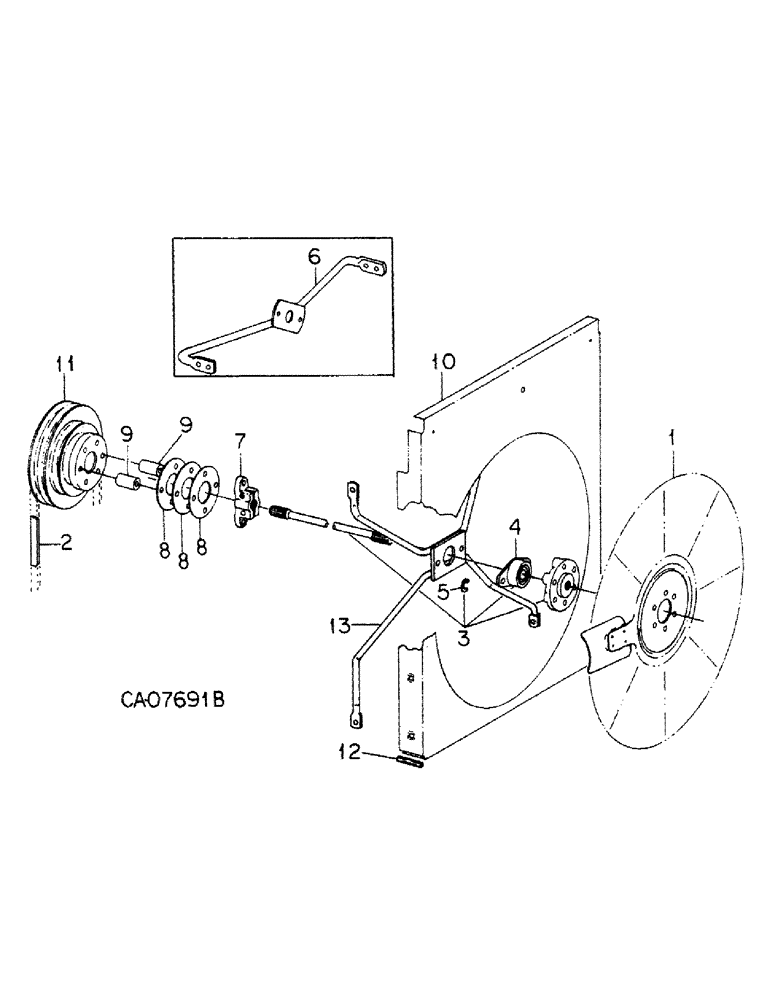

Запчасти Case IH 5488 (06-02) - COOLING, FAN AND FAN BELT Cooling

1

146414C1

BLADE

ASSY, fan, 5088 and 5288 tractors

1шт.

1

146395C1

BLADE

ASSY, fan, 5488 tractors

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

933965R1

LOCK WASHER,M10

6шт.

2

65999C1

V-BELT,0.60" W

Water pump and alternator, Tractors w/ROPS 0.60" W

1шт.

2

131201C91

BELT

fan drive v-matched dual set, Tractors w/air conditioned cab

1шт.

3

1270864C91

SHAFT ASSY.

SHAFT ASSY, radiator fan drive

1шт.

3

1253243C91

SHAFT

ASSY, radiator fan drive

1шт.

4

130210C91

FLANGED BEARING,25.4mm ID

ASSY

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

1253245C91

PILLOW BLOCK

BEARING ASSY

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

2шт.

933965R1

LOCK WASHER,M10

2шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

2шт.

5

631530R1

RING, SNAP

RING, .941 ext rect sect ret

1шт.

6

130214C2

SUPPORT

ASSY, radiator fan

1шт.

5088 w/serial No. 6380 and below, 5288 w/serial no. 4314 and below, 5488 w/ serial no. 2460 and below.

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

933965R1

LOCK WASHER,M10

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.

7

130675C1

HUB

water pump pulley

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25709R1

WASHER

.406 x .812 x .089 hdn

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

8

130092C1

DISC

flex coupling

3шт.

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 phc type 8

2шт.

9

130088C1

SPACER

flex coupling

2шт.

10

130267C1

SHROUD

radiator fan, 22 in., 5088 and 5288 tractors

1шт.

10

144092C1

SHROUD

radiator fan, 24 in., 5488 tractors

1шт.

130285C1

NUT

M8-1.25 cage

8шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

6шт.

11

1800183C1

PULLEY

fan and water pump, Tractors w/air conditioned cab. WHEN REPLACING SHEET METAL PULLEY 1800183C1 WITH CAST IRON \nPULLEY 1810539C1 ON 50 SERIES TRACTORS. YOU MUST REMOVE \n2 OF 130088C1 SPACERS (2.16" OAL) AND REPLACE WITH 2 OF \n487414R1 SPACERS (1.18" OAL).

1шт.

11

673788C1

PULLEY

fan and water pump, Tractors w/ROPS

1шт.

12

SEAL, RH and LH fan shroud caulk, Use 60 mm/2.36 in. from bulk carton marked 146793C1

2шт.

13

1253187C1

SUPPORT

ASSY, radiator fan

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

933965R1

LOCK WASHER,M10

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.
