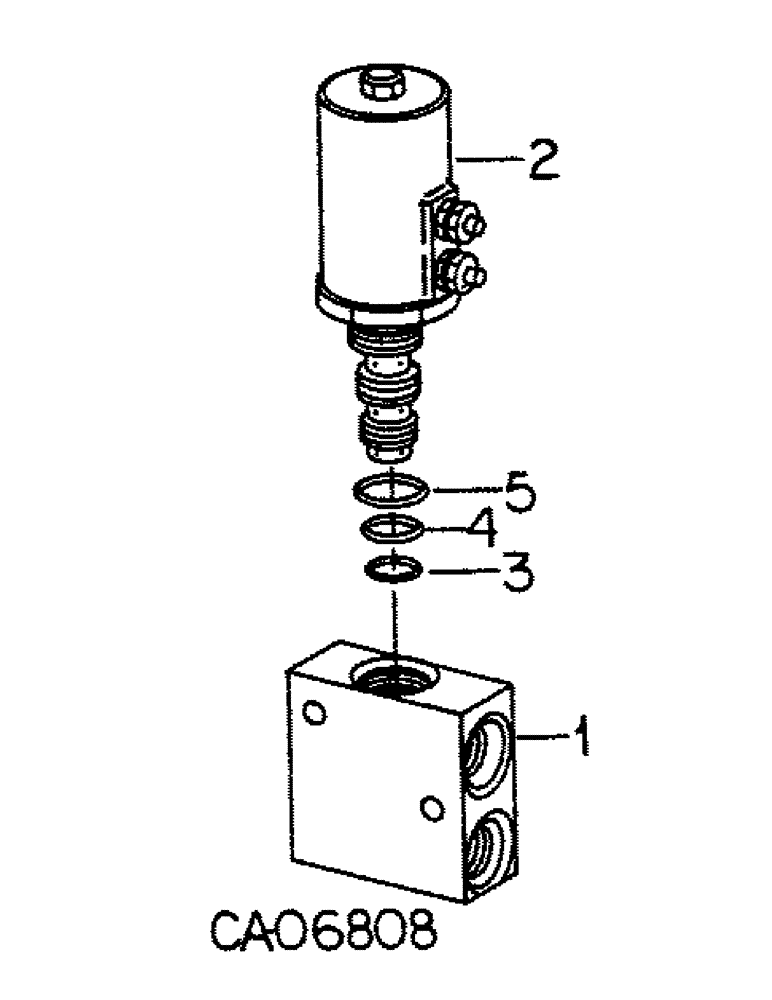

Запчасти Case IH 5488 (10-62) - HYDRAULICS, SOLENOID AND BLOCK VALVE, ALL WHEEL DRIVE TRACTORS (07) - HYDRAULICS

137767C94

VALVE

SOLENOID AND BLOCK ASSY, valve, or

1шт.

1272538C91

VALVE

SOLENOID AND BLOCK ASSY, valve

1шт.

1

BLOCK

1шт.

Order solenoid and block assy 137767C94 or 1272538C91

1шт.

2

SOLENOID

1шт.

Order solenoid and block assy 137767C94 or 1272538C91

1шт.

3

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

1шт.

For use with solenoid and block assy 137767C94 only

1шт.

4

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 class 6

1шт.

For use with solenoid and block assy 137767C94 only

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

For use with solenoid and block assy 137767C94 only

1шт.

1272698C1

PACKAGE

KIT, seal

1шт.

For use with solenoid and block assy 1272538C91 only

1шт.
