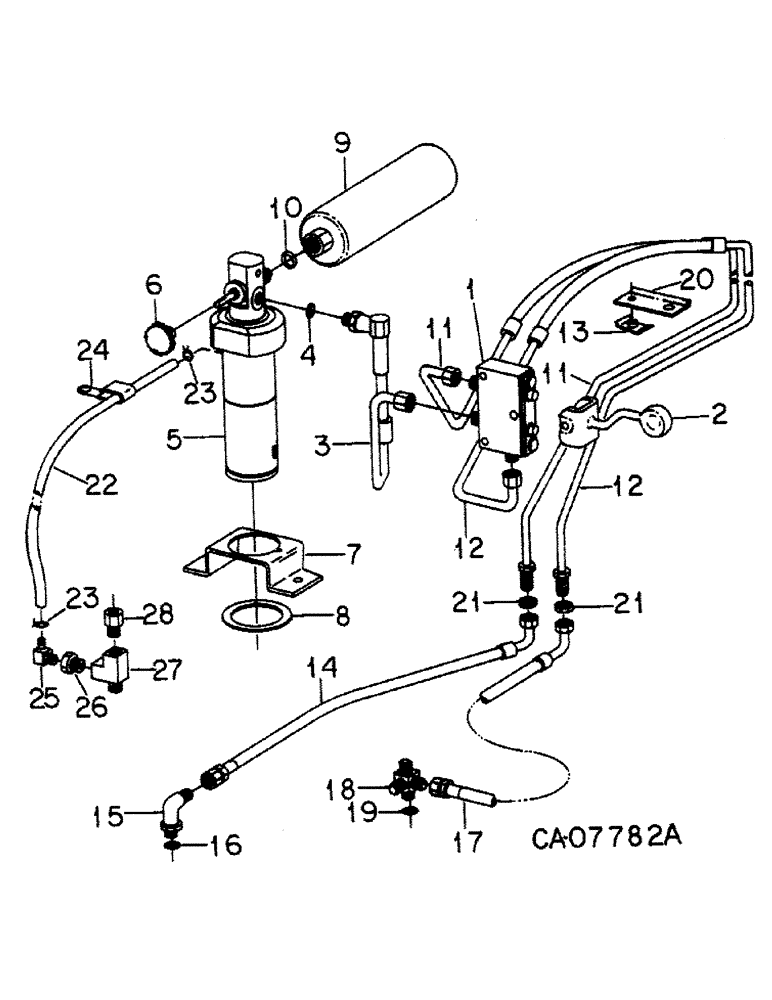

Запчасти Case IH 5488 (10-57) - HYDRAULICS, HYDRAULIC SEAT ATTACHMENT CONNECTIONS, HYDRAULIC SEAT WITHOUT AIR-OIL SUSPENSION (07) - HYDRAULICS

1

399088R92

VALVE

ASSY, hyd seat control, Refer to hyd seat valve this group for list of components

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, 5/16 x 2 pln crg type 1

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

2

539584R2

LEVER

seat control valve

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 pln clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

3

148656C2

HYD TUBE

TUBE AND HOSE ASSY, Serial Range: valve-cyl

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

5

149674C94

CYLINDER

ASSY, 1.75 x 5.0 in. hydraulic, See cyl-1 for components

1шт.

79241C2

SEAL KIT

KIT, cylinder o-ring and seal service

1шт.

6

399094R1

KNOB

seat ride control

1шт.

7

104227C2

BRACKET

seat cyl mtg

1шт.

8

633090R1

WASHER

2.28 x 2.75 x .06 flat

1шт.

644771R1

SNAP RING,#225, Ext

RING, 2.081 ext ret

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2.766 pln clevis

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

399100R2

SHOCK ABSORBER

ABSORBER, hyd accumulator

1шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

11

148657C2

HOSE

ASSY, hyd seat pressure

1шт.

12

148658C2

HOSE

ASSY, hyd seat dump

1шт.

13

384891R11

CLAMP

ASSY, hyd seat tubes

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

14

148768C1

HOSE

ASSY, lower hyd seat press

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

17

148768C1

HOSE

ASSY, lower hyd seat dump

1шт.

18

224616C1

CROSS

9/16-18 o-ring boss 37 deg flared tube

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

20

1259532C1

SUPPORT,80, 6 mm Length

tube support angle

1шт.

931703R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 pln class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

21

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

2шт.

22

1266772C1

HOSE

cylinder drain

1шт.

23

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP, no. 8 type E spring wire hose

2шт.

24

400505R1

CLAMP

cyl drain hose

1шт.

25

401967R1

ELBOW

1шт.

26

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 to 1/8 pln out/h/hd pipe

1шт.

27

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8-18 pln int/ext/int auto pipe

1шт.

28

444002

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

3/8-18 pln auto pipe

1шт.
