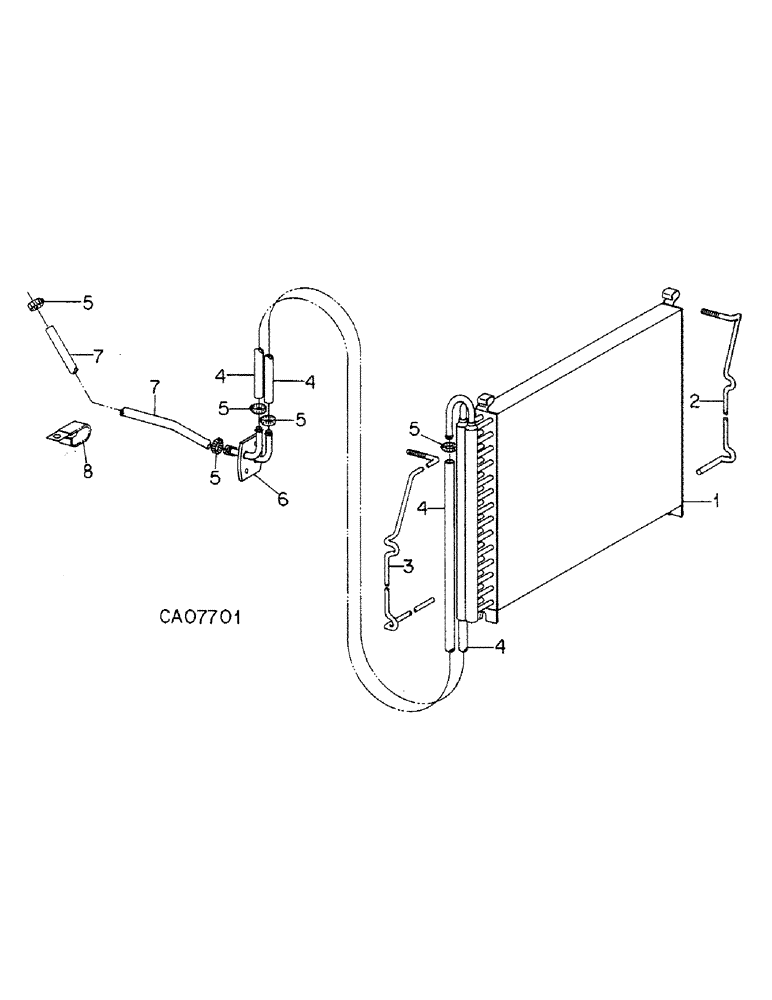

Запчасти Case IH 5488 (06-01) - COOLING, OIL COOLER AND CONNECTIONS Cooling

1

137694C2

COOLER

COOLER ASSY, oil, 5088 tractors

1шт.

1

143002C1

COOLER

COOLER ASSY, oil, 5288 and 5488 tractors

1шт.

2

148995C1

BRACKET

SPARE PART BRACKET, oil cooler mtg., LH

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

2шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

3

148994C1

BRACKET

BRACKET, oil cooler mtg., RH

1шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.

934900R1

WING NUT

NUT, M8 znp wing

2шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

4шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

2шт.

4

HOSE, oil cooler, Furnish 710 mm/27.95 in. from bulk roll marked 146785C1

2шт.

5

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, no. 8 type F hose

6шт.

6

130298C1

ELBOW

SPARE PART ELBOW ASSY, hyd tube

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 16, 8.8

2шт.

7

HOSE, oil cooler inlet, Furnish 1255 mm/49.41 in. from bulk roll marked 146785C1

1шт.

8

104773C3

CLAMP

CLIP, oil cooler hose, Lower side panel

2шт.

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

BOLT, M8 x 12 phc class 10.9

2шт.

615031R1

WASHER

WASHER, .375 x .875 x .064 pln

1шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.
