(10-42[A]) - HYDRAULICS, POWER STEERING MAKE-UP CHECK VALVE

Запчасти Case IH 5488 (10-42[A]) - HYDRAULICS, POWER STEERING MAKE-UP CHECK VALVE (07) - HYDRAULICS

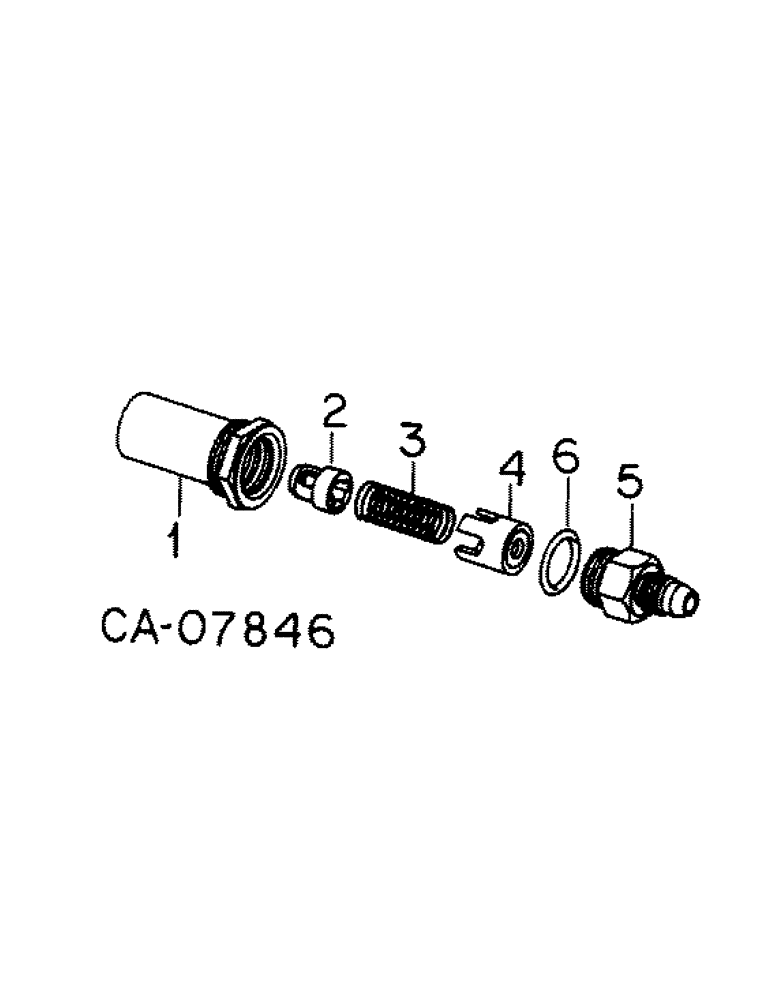

Схема запчастей Case IH 5488 - (10-42[A]) - HYDRAULICS, POWER STEERING MAKE-UP CHECK VALVE (07) - HYDRAULICS
3
5
1
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BODY, Order check valve assy (NSS)

1шт.

2

382304R1

CHECK VALVE

VALVE, power steering make-up check

1шт.

3

399869R1

SPRING

1шт.

4

399870R2

RETAINER

spring

1шт.

5

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.
