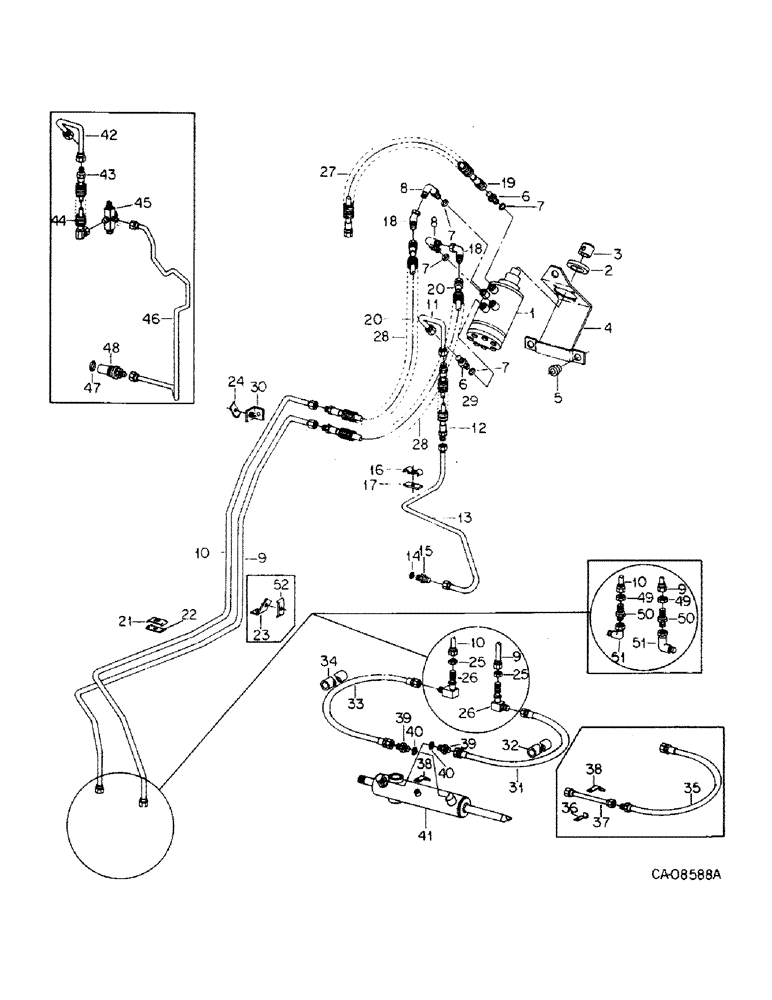

Запчасти Case IH 5488 (10-40) - HYDRAULICS, POWER STEERING CONNECTIONS, TWO WHEEL DRIVE TRACTORS (07) - HYDRAULICS

1

1263446C91

PUMP

ASSY, power steering hand, Tractors w/adjustable standard tread front axle, Refer to power steering hand pump this group for list of components

1шт.

1

1263446C91R

REMAN-STEERING VALVE

5088, 5288, 5488, All INTERNATIONAL DIESEL TRACTOR, ASSY, power steering hand, Tractors w/adjustable standard tread front axle (1/81-12/87)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

1255313C91

PUMP

ASSY, power steering hand, Tractors w/adjustable high capacity front axle

1шт.

*

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust, Tractors w/o tilt steering

1шт.

2

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft dust, Tractors w/ tilt steering

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mtg

1шт.

*

179814

SPACER

5/16 x 5/8 pln type 5

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

ISOMOUNT, hand pump bracket

3шт.

*

536642R1

WASHER

3шт.

*

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

2шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg

2шт.

9

1270508C2

HYD TUBE

TUBE ASSY, right turn steering, Replaces 148693C1

1шт.

10

1270507C2

HYD TUBE

TUBE ASSY, left turn steering, Replaces 148692C1

1шт.

11

144269C1

HYD TUBE

TUBE ASSY, upper supply

1шт.

12

148727C1

HOSE,9.52 mm ID x 376.00, SAE 100R1

ASSY, power steering supply

1шт.

13

144289C2

HYD TUBE,0.5" OD, 719.593 mm Length

TUBE ASSY, steering supply

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

1шт.

16

533694R1

CLAMP

tube

1шт.

17

1259872C1

BAR

tube support

1шт.

*

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.

*

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

18

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg swivel

2шт.

19

1270738C1

HYDRAULIC HOSE,0.38" ID x 25.00", SAE 100R1 A

Steering Pump to Brake Valve Return 0.38" ID x 25.00", SAE 100R1 A

1шт.

20

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering

2шт.

21

384855R11

CLAMP

ASSY, steering tubes, Tube to tube behind side channel

1шт.

5088 w/serial no. 6369 and above, 5288 w/serial no. 4307 and above, 5488 w/serial no. 2459 and above

1шт.

22

384855R1

CLAMP

steering tubes

1шт.

5088 w/serial no. 6369 and above, 5288 w/serial no. 4307 and above, 5488 w/serial no. 2459 and above

1шт.

*

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

537844R2

BRACKET

steering tubes front channel

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

*

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

1шт.

24

535307R1

CLAMP

support

1шт.

25

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock, 5088 w/serial no. 6066 and above, 5288 w/serial no. 4114 and above, 5488 w/serial no. 2426 and above

2шт.

26

1272240C1

ELBOW

3/8 C-Z hyd fld 90D bulkhead, 5088 w/serial no. 6066 and above, 5288 w/serial no. 4114 and above, 5488 w/serial no. 2426 and above

2шт.

27

TUBING, corrugated, Furnish 60 mm (23.62 in.) from bulk roll 1266755C1

1шт.

28

TUBING, corrugated, Furnish 495 mm (19.49 in.) from bulk roll 1266756C1

2шт.

29

TUBING, corrugated, Furnish 445 mm (17.5 in.) from bulk roll 1266755C1

1шт.

30

1270445C2

SUPPORT TUBE

SUPPORT ASSY, steering tubes, on engine

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

31

148487C1

HOSE

ASSY, power steering LH, 736 mm (29.00 in.) long, For adj std tread front axle, 5088 w/serial no. 8041 and above, 5288 w/serial no. 5851 and above, 5488 w/serial no. 3905 and above

1шт.

SHOULD BE PART #1259712C1 WHICH NO SUBS TO 1284338C1---

1шт.

31

1259712C1

HOSE

ASSY, power steering LH, For adjustable high capacity front axle

1шт.

32

1270650C1

TUBE

COVER, steering hose LH, For adjustable high capacity front axle

1шт.

33

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering RH, For adj std tread front axle

1шт.

33

1270453C1

HYDRAULIC HOSE

HOSE ASSY, power steering RH, For adjustable high capacity front axle

1шт.

34

1270651C1

HOSE

COVER, steering hose RH, For adjustable high capacity front axle

1шт.

35

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering LH, 578 mm (22.75 in.) long, For adj std tread front axle, 5088 w/serial no. 8040 and below, 5288 w/serial no. 5850 and below, 5488 w/serial no. 3904 and below

1шт.

36

533578R2

CLAMP

tube, For use w/hose assy, 70312C1, 5088 w/serial no. 8040 and below, 5288 w/serial no. 5850 and below, 5488 w/serial no. 3904 and below

1шт.

37

533579R2

TUBE

ASSY, cyl to LH strg hose, For use w/hose assy, 70312C1, 5088 w/serial no. 8040 and below, 5288 w/serial no. 5850 and below, 5488 w/serial no. 3904 and below

1шт.

38

533577R2

CLAMP

hose, For adj std tread front axle

1шт.

*

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

39

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

40

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

41

63864C93

CYLINDER,25.4mm Rod, 203.2mm Stroke

ASSY, 2.37 x 8.0 hydraulic power steering, Tractors with adjustable standard tread front axle, See cyl-1 for components

1шт.

PART #80446C1 SHOULD BE 80446C91

1шт.

*

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

cylinder (not shown)

2шт.

*

80446C91

PACKAGE

KIT, cylinder o-ring and seal service

1шт.

41

1255300C91

CYLINDER ASSY.

CYLINDER ASSY, 2.62 x 9.7 hydraulic power steering, Tractors with adjustable high capacity front axle, See cyl-1 for components

1шт.

*

80448C1

GASKET KIT

KIT, cylinder o-ring and seal service

1шт.

42

144269C1

HYD TUBE

TUBE ASSY, upper supply

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

43

149082C2

HOSE,9.52 mm ID x 464.00, SAE 100R1

ASSY, power steering return

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

44

TUBING, corrugated, Furnish 445 mm (17.5 in.) from bulk roll 1266755C1

1шт.

45

224583C91

VALVE

ASSY, brake check, For components, see list of parts under details of brake check valve this group

1шт.

46

149079C2

TUBE

ASSY, steering make-up

1шт.

Tractors w/serial nos listed in 2, refer to flow divider valve connections, this group, for these parts

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

47

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

Tractors w/serial nos listed in 2, refer to flow divider valve connections, this group, for these parts

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

48

142854C91

VALVE

ASSY, power strg make-up check, For components, see list of parts under details of power steering make-up check valve, this group

1шт.

Tractors w/serial nos listed in 2, refer to flow divider valve connections, this group, for these parts

1шт.

5088 w/serial no. 6368 and below, 5288 w/serial no. 4306 and below, 5488 w/serial no. 2458 and below

1шт.

49

124939

NUT,Jam, 9/16"-18, G5

9/16-NF jam type 5, 5088 w/serial no. 6065 and below, 5288 w/serial no. 4113 and below, 5488 w/serial no. 2425 and belowd

2шт.

50

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock, 5088 w/serial no. 6065 and below, 5288 w/serial no. 4113 and below, 5488 w/serial no. 2425 and below

2шт.

51

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90 deg swivel, 5088 w/serial no. 6065 and below, 5288 w/serial no. 4113 and below, 5488 w/serial no. 2425 and below

2шт.

52

535307R1

CLAMP

bracket, Used with bracket, 537844R2

1шт.

*

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

*

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

*

1270513C92

TUBE

PACKAGE, left and right steering tubes, Consists of

1шт.

*

1270507C2

HYD TUBE

TUBE ASSY, left turn steering

1шт.

*

1270508C2

HYD TUBE

TUBE ASSY, right turn steering

1шт.

*

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering

2шт.

*

TUBING, corrugated

2шт.

*

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg swivel

2шт.

*

1270445C2

SUPPORT TUBE

SUPPORT ASSY, steering tubes

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

535307R1

CLAMP

support

1шт.

*

179814

SPACER

5/16 x 5/8 pln type 5

1шт.

*

384855R11

CLAMP

ASSY, Serial Range: tube-tube

1шт.

*

384855R1

CLAMP

tube

1шт.

*

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

INSTRUCTIONS, installing (NSS)

1шт.
