(10-37) - HYDRAULICS, AUXILIARY VALVE END COVER

Запчасти Case IH 5488 (10-37) - HYDRAULICS, AUXILIARY VALVE END COVER (07) - HYDRAULICS

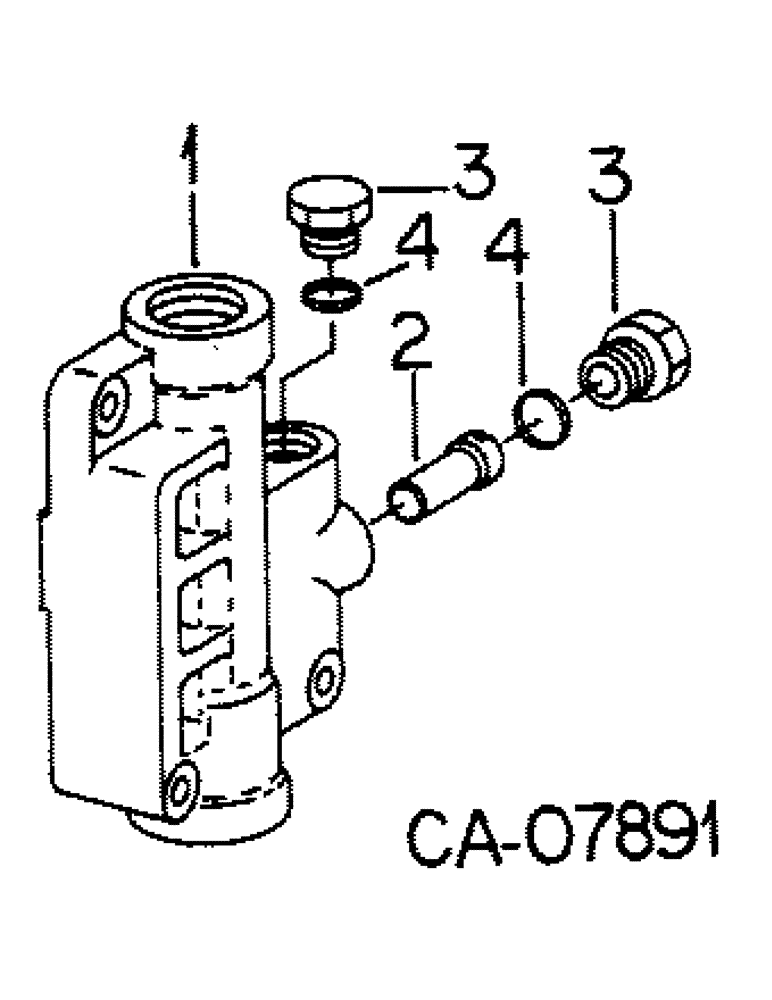

Схема запчастей Case IH 5488 - (10-37) - HYDRAULICS, AUXILIARY VALVE END COVER (07) - HYDRAULICS
2
1
4
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

224507C92

COVER

ASSY, auxiliary valve end

1шт.

1

BODY, cover, Not furnished separately order end cover assy

1шт.

2

127886C1

BLEEDER VALVE

VENT ASSY, signal

1шт.

3

27599R1

PLUG

3/8 phc str thd o-ring boss

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.
