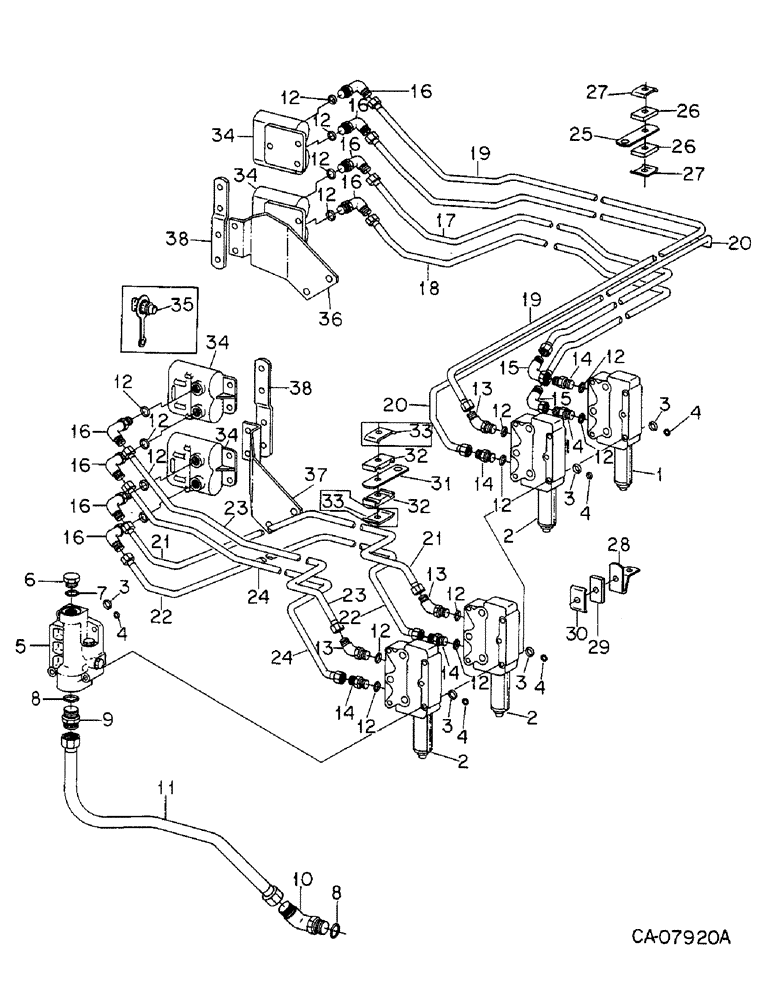

Запчасти Case IH 5488 (10-22) - HYDRAULICS, TWO, THREE AND FOUR AUXILIARY VALVES (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1285879C91
VALVE
ASSY, motor control, Replaces 142552C99, For serviceable components see motor control valve this group
1шт.
2
1285880C91
VALVE
ASSY, auxiliary control, Replaces 142551C91, 1 required w/two aux valves, 2 required w/three aux valves, 3 required w/four aux valves, For serviceable components see aux control valve this group
1шт.
3
391912R1
O-RING,0.737" ID x 0.103" Width
3/4 x 15/16 x 3/32, 4 required between each valve, 3 required w/end cover
19шт.
4
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
3/8 x 9/16 class 6, 2 required between each valve & end cover
10шт.
5
224507C92
COVER
ASSY, auxiliary valve end, For serviceable components see aux valve end cover this group
1шт.
931715R1
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
M10 x 90 pln class 8.8
2шт.
30477R1
BOLT,M10 x 1.5 x 130mm, Cl 8.8
M10 x 130 pln class 8.8
2шт.
1271011C1
STUD
M10 x 195 pln 10.9, For 2 aux valve
2шт.
1271012C1
STUD
M10 x 240 pln 10.9, For 2 or 3 aux valve
2шт.
1271013C1
STUD
M10 x 285 pln 10.9, For 3 or 4 aux valve
2шт.
1271014C1
STUD
M10 x 320 pln 10.9, For 4 aux valve
2шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 mm phc
4шт.
30168R1
NUT,M10, Cl 10
M10 phc class 10
4шт.
6
9410361
PLUG
3/4 C-Z str thd o-ring boss
1шт.
7
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3/4 OD tube class 6
1шт.
8
307915R1
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1-1/4 OD tube class 6
2шт.
9
570180
HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring
CONNECTOR, 1-1/4 C-Z hyd fld short swvl
1шт.
10
9411110
ELBOW,45 Degree, 1 5/8"-12 x 1 5/8"-12, O-Ring
1-1/4 C-Z hyd fld adj 45 deg
1шт.
11
1259646C1
HYD TUBE
TUBE ASSY, aux valve return, Tractors w/two aux valves
1шт.
11
1251874C1
HYD TUBE,1.25" OD, 664.848 mm Length
TUBE ASSY, aux valve return, Tractors w/three aux valves
1шт.
11
1259647C1
HYD TUBE
TUBE ASSY, aux valve return, Tractors w/four aux valves
1шт.
12
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
16шт.
13
9411106
ELBOW
7/8-14 37 deg hyd flared tube adj str thd 45 deg
3шт.
14
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 7/8-14 37 deg hyd flared tube
5шт.
15
9410282
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
7/8-14 37 deg hyd flared tube 90 deg swivel
2шт.
16
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
7/8-14 37 deg hyd flared tube adj str thd 90 deg
8шт.
17
144325C3
HYD TUBE,0.625" OD, 1490.82 mm Length
TUBE ASSY, 1st valve raise
1шт.
18
144326C1
HYD TUBE,0.625" OD, 1515.589 mm Length
TUBE ASSY, 1st valve drop
1шт.
19
144327C1
HYD TUBE
TUBE ASSY, 2nd valve raise
1шт.
20
144328C2
HYD TUBE,0.625" OD, 1669.129 mm Length
TUBE ASSY, 2nd valve drop
1шт.
21
144329C1
HYD TUBE,0.625" OD, 1134.611 mm Length
TUBE ASSY, 3rd valve raise
1шт.
22
144330C1
HYD TUBE,0.625" OD, 1188.092 mm Length
TUBE ASSY, 3rd valve drop
1шт.
23
1259602C1
HYD TUBE
TUBE ASSY, 4th valve raise
1шт.
24
1259603C1
HYD TUBE
TUBE ASSY, 4th valve drop
1шт.
25
1251919C1
SUPPORT TUBE
SUPPORT, 1st & 2nd aux valve tubes
1шт.
26
224968C2
STRIP
tube insulator, Replaces 104799C1
2шт.
27
486004R1
CLAMP
tube
2шт.
30011R1
BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9
M8 x 65 phc class 10.9
1шт.
30382R1
NUT,M8 x 1.25, Cl 10
M8 phc p/t class 10
1шт.
28
1251923C1
SUPPORT TUBE
SUPPORT, aux valve tube support, 1st aux valve w/alternating check valves, 3rd aux valve w/o alternating check valves
1шт.
29
224968C2
STRIP
tube insulator, Replaces 104799C1
1шт.
30
486004R1
CLAMP
tube
1шт.
30006R1
BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9
M8 x 40 phc class 10.9
1шт.
30382R1
NUT,M8 x 1.25, Cl 10
M8 phc p/t class 10
1шт.
31
1259617C1
SUPPORT TUBE
SUPPORT, 3rd and 4th aux valve tubes
1шт.
32
224905C1
STRIP
tube insulator, Replaces 1259615C1
2шт.
33
1270568C1
STRIP
CLAMP, tube, Replaces 1259616C1, By furnishing two clamps 1270568C1, 1 bolt 30014R1, 1 nut 30382R1 and 2 washer 668569R1
2шт.
30014R1
BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9
M8 x 80 phc class 10.9
1шт.
30382R1
NUT,M8 x 1.25, Cl 10
M8 phc p/t class 10
1шт.
34
544786R95
COUPLING, BREAK AWAY
COUPLER ASSY, female, IH coupler
1шт.
34
1272192C92
COUPLING
COUPLER ASSY, female, ISO coupler, 2 required for two aux valves, 3 required for three aux valves, 4 required for four aux valves, For serviceable components see female coupler this group
1шт.
35
64757C1
PLUG
IH coupler dust, 2 required per female coupler
1шт.
36
144085C1
BRACKET
LH coupler
1шт.
179880
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5
1/2 x 7/8 pln type 5
2шт.
931218R1
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
2шт.
37
144086C1
BRACKET
RH coupler
1шт.
179880
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5
1/2 x 7/8 pln type 5
2шт.
931218R1
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
2шт.
38
120012C1
SUPPORT
2nd and 4th coupler
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
1/2 x 1-1/8 pln type 5
4шт.
1282238C92
SET OF PARTS
PARTS ACCESSORY, third auxiliary hydraulic valve, For tractors w/ISO couplers, Consists of
1шт.
1285880C91
VALVE
ASSY, auxiliary control
1шт.
391912R1
O-RING,0.737" ID x 0.103" Width
3/4 x 15/16 class 6
4шт.
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
3/8 x 9/16 class 6
2шт.
1271012C1
STUD
M10 x 240 pln class 10.9
2шт.
1271013C1
STUD
M10 x 285 pln class 10.9
2шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 mm phc
4шт.
30168R1
NUT,M10, Cl 10
M10 phc class 10
4шт.
143978C1
BRACKET
AUXILIARY VALVE CONTROL
1шт.
931951R1
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
M6 x 16 pln class 8.8
2шт.
143979C92
LEVER
ASSY, auxiliary valve control
1шт.
143983C1
BOLT,Shldr, Hex, M10 x 1.5 x 28mm, Cl 8.8
shoulder
1шт.
143984C1
LINK
ASSY, auxiliary valve control
1шт.
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, #X31, .243" Dia, E-Type
2шт.
1251563C2
BAR
auxiliary valve control handle
1шт.
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, #37, .300" Dia, E-Type
1шт.
1280278C1
BOLT,Shldr, Hex, 5/16" - 18 x 1.04", Type 5
BOLT, 5/16-18 x 1.04 shoulder
1шт.
390304C1
WASHER
.344 x .688 x .065 hdn
1шт.
1251559C91
LEVER
ASSY, third auxiliary valve
1шт.
143998C1
SPACER
auxiliary valve handle hub
1шт.
16066R1
WASHER
.781 x 1.500 x .054 pln, Inner and outer handle spacer
3шт.
21018R1
WASHER
.781 x 1.500 x .027 pln
1шт.
135877R1
SEAL, control lever
1шт.
139214C1
SECTOR
flow control operating, blue
1шт.
139023C1
SPACER
flow control sector
1шт.
143989C1
CABLE
ASSY, flow control operating
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
22844R1
SELF-TAP SCREW,Hex Hd, #10 x 1/2"
SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"
1шт.
120391
WASHER,#10
.219 x .500 x .036
1шт.
544678R1
NUT
u-type speed
1шт.
139150C1
BRACKET
ASSY, third auxiliary cable mounting lower
1шт.
930242R1
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
M6 x 12 pln class 8.8
1шт.
139029C2
CLIP
flow control cable
1шт.
159920
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
1шт.
139030C1
LEVER
ASSY, flow control cable
1шт.
18607R1
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
1251545C2
SHAFT
ASSY, third auxiliary valve, inner
1шт.
603570R1
SNAP RING,#75, .574" Dia, E-Type
Ring, Retaining, #75, .574" Dia, E-Type
1шт.
1280098C1
KNOB
third auxiliary valve handle blue
1шт.
1280080C2
HANDLE
ASSY, third auxiliary valve
1шт.
384098R1
SNAP RING,#62, Ext
Ring, Snap, #62, Ext
1шт.
1251550C1
WASHER
auxiliary valve control handle
2шт.
1251551C1
WASHER
auxiliary valve control handle
2шт.
1259534C1
ROD
third and fourth auxiliary valve control
1шт.
30168R1
NUT,M10, Cl 10
M10 phc class 10
1шт.
1251968C2
PIN
auxiliary valve upper control
1шт.
1251970C2
PIN
auxiliary valve lower control
1шт.
896045R1
SNAP RING,#37, Ext
2шт.
1259816R1
LEVER, float lockout
1шт.
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 5/8 C-Z hyd fld short swivel
1шт.
9411106
ELBOW
5/8 C-Z hyd fld adj 45 deg
1шт.
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
5/8 C-Z hyd fld adj 90 deg
2шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube class 6
4шт.
486004R1
CLAMP
auxiliary valve tubes
1шт.
144329C1
HYD TUBE,0.625" OD, 1134.611 mm Length
TUBE ASSY, 3rd valve raise
1шт.
144330C1
HYD TUBE,0.625" OD, 1188.092 mm Length
TUBE ASSY, 3rd valve drop
1шт.
1251923C1
SUPPORT TUBE
SUPPORT, auxiliary valve tubes
1шт.
224968C2
STRIP
isomount auxiliary valve tubes
1шт.
30011R1
BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9
M8 x 65 phc class 10.9
1шт.
30006R1
BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9
M8 x 40 phc class 10.9
1шт.
30382R1
NUT,M8 x 1.25, Cl 10
M8 phc p/t class 10
2шт.
1251874C1
HYD TUBE,1.25" OD, 664.848 mm Length
TUBE ASSY, auxiliary valve return, 3 valves
1шт.
144086C1
BRACKET
coupler RH
1шт.
179880
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5
1/2 x 7/8 pln type 5
2шт.
931218R1
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
2шт.
179882
PIN
1/2 x 1-1/8 pln type 5
2шт.
1272192C92
COUPLING
COUPLER ASSY, female, ISO
1шт.
1272196C1
CAP
coupler dust
2шт.
1272197C1
RING, SNAP
RING, retaining
2шт.
PRODUCT GRAPHIC, 3rd coupler, blue (NSS)
1шт.
1282227C1
FITTING
drain hose
1шт.
FOR444613
PLUG
1/8-27 pln h/hd auto pipe
1шт.
1272488C1
HYDRAULIC HOSE,6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7
Coupler drain 6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7
1шт.
210511R1
HOSE CLAMP,#8, 1/2", Spring
CLAMP, no. 8 type E spring wire hose
1шт.
291207C1
CLAMP
STRAP, hose
1шт.
INSTRUCTIONS, installing (NSS)
1шт.
1282239C92
KIT
PARTS ACCESSORY, fourth auxiliary hydraulic valve, For tractors w/ISO couplers, Consists of
1шт.
When these parts accessories are used on tractors without ISO couplers, also order two plugs, 444612 (to plug vent holes in new coupling housing) and dust cap, 1272196C1, which should be notched by cutting a 1/8 in. "V" shape groove from bottom hole in dust cap to its rear surface.
1шт.
1285880C91
VALVE
ASSY, auxiliary control
1шт.
391912R1
O-RING,0.737" ID x 0.103" Width
3/4 x 15/16 class 6
4шт.
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
3/8 x 9/16 class 6
2шт.
1271014C1
STUD
M10 x 320 pln class 10.9
2шт.
1271013C1
STUD
M10 x 285 pln class 10.9
2шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 mm phc
4шт.
30168R1
NUT,M10, Cl 10
M10 phc class 10
4шт.
143978C1
BRACKET
auxiliary valve control
1шт.
931951R1
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
M6 x 16 pln class 8.8
2шт.
143979C92
LEVER
ASSY, auxiliary valve control
1шт.
143983C1
BOLT,Shldr, Hex, M10 x 1.5 x 28mm, Cl 8.8
shoulder
1шт.
143984C1
LINK
ASSY, auxiliary valve control
1шт.
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, #X31, .243" Dia, E-Type
2шт.
1251563C2
BAR
auxiliary valve control handle
1шт.
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, #37, .300" Dia, E-Type
1шт.
1280278C1
BOLT,Shldr, Hex, 5/16" - 18 x 1.04", Type 5
BOLT, 5/16-18 x 1.04 shoulder
1шт.
390304C1
WASHER
.344 x .688 x .065 hdn
1шт.
1251561C91
LEVER
ASSY, fourth auxiliary valve
1шт.
16066R1
WASHER
.781 x 1.500 x .054 pln, inner and outer handle spacer
3шт.
21018R1
WASHER
.781 x 1.500 x .027 pln
1шт.
135877R1
SEAL, control lever
1шт.
139215C1
SECTOR
flow control operating, tan
1шт.
143989C1
CABLE
ASSY, flow control operating
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
22844R1
SELF-TAP SCREW,Hex Hd, #10 x 1/2"
SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"
1шт.
120391
WASHER,#10
.219 x .500 x .036
1шт.
544678R1
NUT
U-type speed
1шт.
139149C1
BRACKET
ASSY, control cable mounting lower, 2 valve
2шт.
930242R1
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
M6 x 12 pln class 8.8
1шт.
139029C2
CLIP
flow control cable
2шт.
159920
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
1шт.
139030C1
LEVER
ASSY, flow control valve
1шт.
18607R1
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
1259810C91
SUPPORT
ASSY, auxiliary valve lever
1шт.
1251542C92
SHAFT
ASSY, 4th auxiliary valve, outer
1шт.
1280099C1
KNOB
fourth auxiliary valve handle tan
1шт.
1280082C2
HANDLE
ASSY, fourth auxiliary valve
1шт.
384098R1
SNAP RING,#62, Ext
Ring, Snap, #62, Ext
1шт.
1251550C1
WASHER
auxiliary valve control handle
2шт.
1251551C1
WASHER
auxiliary valve control handle
2шт.
1259534C1
ROD
third and fourth auxiliary valve control
1шт.
30168R1
NUT,M10, Cl 10
M10 phc class 10
1шт.
1251968C2
PIN
auxiliary valve upper control
1шт.
1251970C2
PIN
auxiliary valve lower control
1шт.
896045R1
SNAP RING,#37, Ext
4шт.
1259816C1
LEVER
float lockout
1шт.
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 5/8 C-Z hyd fld short swivel
1шт.
9411106
ELBOW
5/8 C-Z hyd fld adj 45 deg
1шт.
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
5/8 C-Z hyd fld adj 90 deg
2шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube class 6
4шт.
1259602C1
HYD TUBE
TUBE ASSY, 4th valve raise
1шт.
1259603C1
HYD TUBE
TUBE ASSY, 4th valve drop
1шт.
486004R1
CLAMP
auxiliary valve tubes
2шт.
1251919C1
SUPPORT TUBE
SUPPORT, auxiliary valve tubes
1шт.
224968C2
STRIP
Isomount auxiliary valve tubes
2шт.
30011R1
BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9
M8 x 65 phc class 10.9
2шт.
30382R1
NUT,M8 x 1.25, Cl 10
M8 phc p/t class 10
2шт.
1259617C1
SUPPORT TUBE
SUPPORT, auxiliary valve tube, 3rd and 4th
1шт.
1270568C1
STRIP
CLAMP, tube support
2шт.
224905C1
STRIP
clamp retainer
2шт.
30014R1
BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9
M8 x 80 phc class 10.9
1шт.
1259647C1
HYD TUBE
TUBE ASSY, auxiliary valve return, 4 valves
1шт.
570180
HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring
CONNECTOR, 1-1/4 C-Z hyd fld short swvl
1шт.
9411110
ELBOW,45 Degree, 1 5/8"-12 x 1 5/8"-12, O-Ring
1-1/4 C-Z hyd fld adj 45 D
1шт.
307915R1
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1-1/4 OD tube class 6
2шт.
144086C1
BRACKET
coupler RH
1шт.
179880
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5
1/2 x 7/8 pln type 5
2шт.
931218R1
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
2шт.
120012C1
SUPPORT
2nd and 4th coupler
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
1/2 x 1-1/8 pln type 5
4шт.
1272192C92
COUPLING
COUPLER ASSY, female, ISO
1шт.
1272196C1
CAP
coupler dust
2шт.
1272197C1
RING, SNAP
RING, retaining
2шт.
PRODUCT GRAPHIC, 4th coupler, tan (NSS)
1шт.
1272765C1
FITTING,1/8" - 27 NPT
coupler drain
1шт.
1272764C1
SEAL
SEAL, coupler drain
1шт.
444612
PLUG
1/8-27 pln h/hd auto pipe
1шт.
INSTRUCTIONS, installing (NSS)
1шт.
Выбрано товаров: 222
