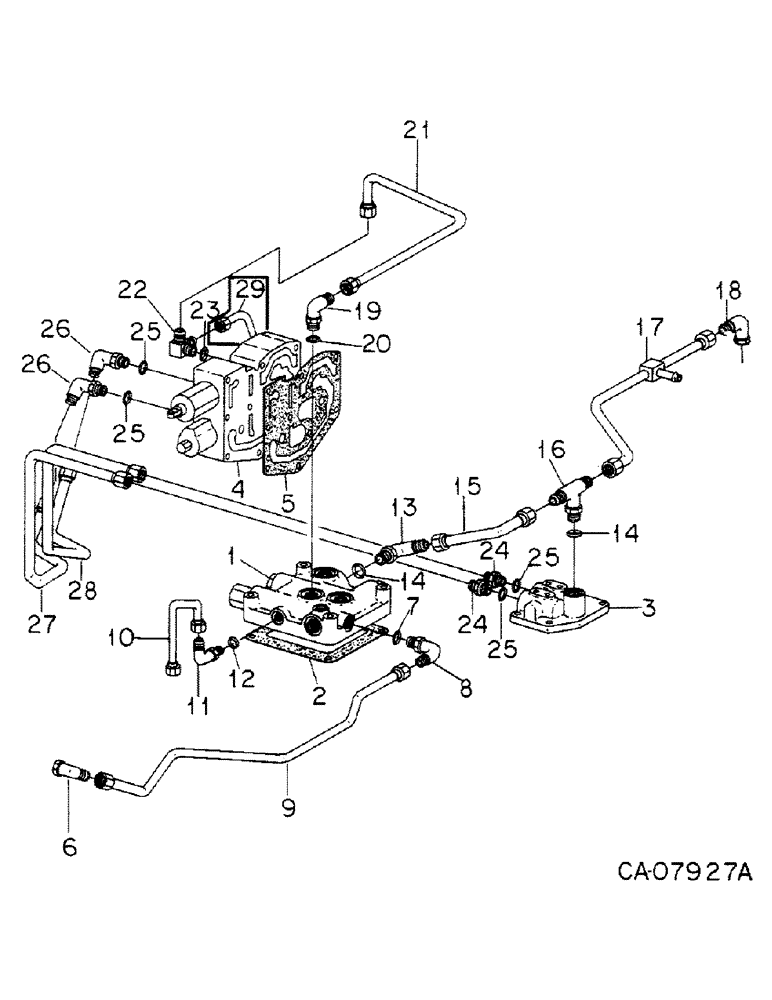

Запчасти Case IH 5488 (10-13) - HYDRAULICS, TRANSMISSION CONTROL AND LUBE VALVE AND TUBING (07) - HYDRAULICS

1

145394C96

VALVE

ASSY, transmission lube, For serviceable components see transmission lube valve this group

1шт.

931352R1

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

M10 x 65 pln class 8.8

4шт.

2

145400C1

MANIFOLD GASKET

lub flow reg valve

1шт.

3

MANIFOLD, shift clutch pressure & lube, See group 7 clutch housing for manifold & related parts

1шт.

4

224370C99

VALVE

ASSY, transmission control, For serviceable components see transmission control valve this group

1шт.

931713R1

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

M10 x 75 pln class 8.8

2шт.

931714R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

M10 x 80 pln class 8.8

4шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

1шт.

5

224562C3

GASKET

transmission control valve

1шт.

6

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

9

149048C1

HYD TUBE

TUBE ASSY, transmission lube valve to diff lock supply

1шт.

10

149019C2

HYD TUBE,0.375" OD, 170.8 mm Length

TUBE ASSY, range housing spray

1шт.

11

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

Where Ref # 14 sits, the Transmission Differential Lock Assembly Solenoid goes into. The part # of this diff lock solenoid valve is 149827C91.

1шт.

15

149049C1

HYD TUBE

TUBE ASSY, transmission lube, Serial Range: valve-manifold

1шт.

16

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

3/8 C-Z hyd fld tube adj

1шт.

17

1264645C1

HYD TUBE

TUBE ASSY, manifold to clutch lube

1шт.

18

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld tube 90D swivel

1шт.

19

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld tube adj 90D

1шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

21

149043C1

TUBE

ASSY, transmission control valve to trans lube valve, clutch supply

1шт.

22

1259714C1

TEE

5/8 x 3/8 C-Z hyd fld adj

1шт.

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

23

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

24

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

2шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

2шт.

27

149040C2

HYD TUBE,0.625" OD, 206, 286, mm Length

TUBE ASSY, manifold to transmission control valve, rear

1шт.

28

149041C1

HYD TUBE

TUBE ASSY, manifold to transmission control valve, front

1шт.

29

1259719C1

O-RING

TUBE ASSY, shift interlock pressure, Order cap, 9403371, o-ring, 570828R1 and plug, 1301653C1

1шт.
