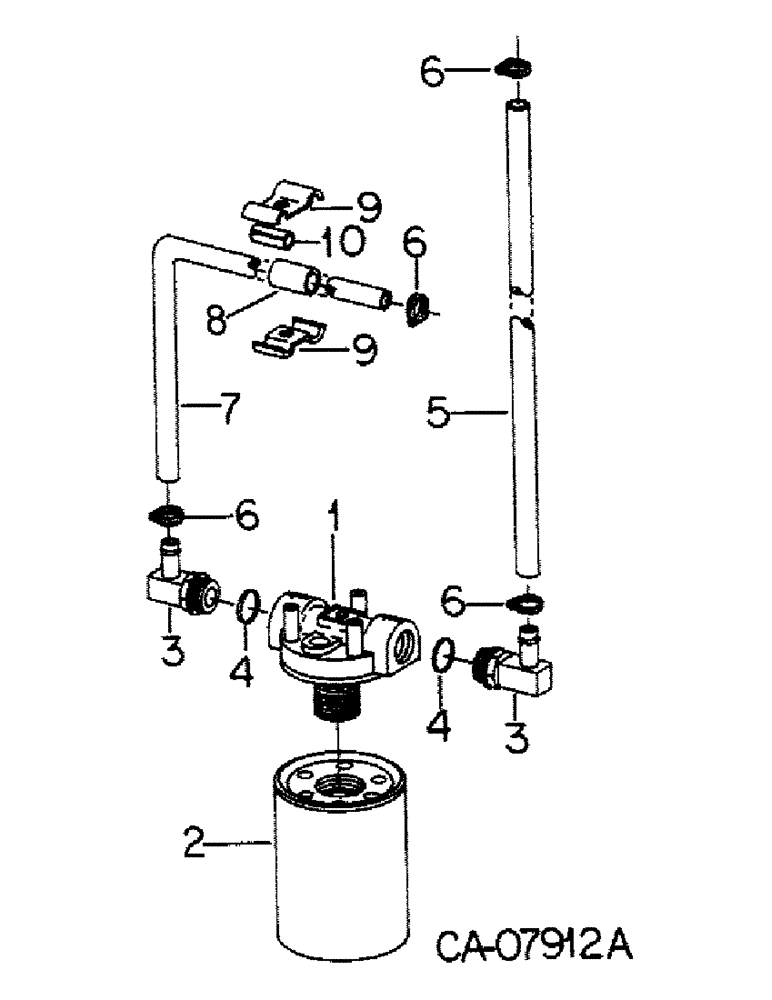

Запчасти Case IH 5488 (10-10) - HYDRAULICS, HYDRAULIC OIL FILTER-HI PRESSURE SPIN-ON, MOUNTED ON RIGHT HAND BATTERY BOX (07) - HYDRAULICS

1

137938C91

HYDRAULIC OIL FILTER

FILTER & BASE ASSY, Includes Ref.. 2

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

2

1272942C1

FILTER, ELEMENT

FILTER, Replaces 137939C1

1шт.

3

133824C1

ELBOW

90 deg special

2шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

5

HOSE, oil cooler return to filter, Furnish 1650 mm/64.96 in. from a bulk roll marked 146785C1

1шт.

TUBE, corrugated, hose cover, Furnish 430 mm/16.93 in. from a bulk roll marked 1266756C1

1шт.

6

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, no. 8 type F hose

4шт.

7

HOSE, filter to clutch lube tube, Furnish 765 mm/30.11 in. from a bulk roll marked 146785C1

1шт.

8

536410R1

BUSHING

GROMMET, hose

1шт.

9

684899C1

CLAMP

cooler hose

2шт.

30193R1

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

M6 x 20 phc class 10.9

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

1шт.

10

163491C1

RUBBER INSULATOR

HOSE, steering supply tube sleeve

1шт.
