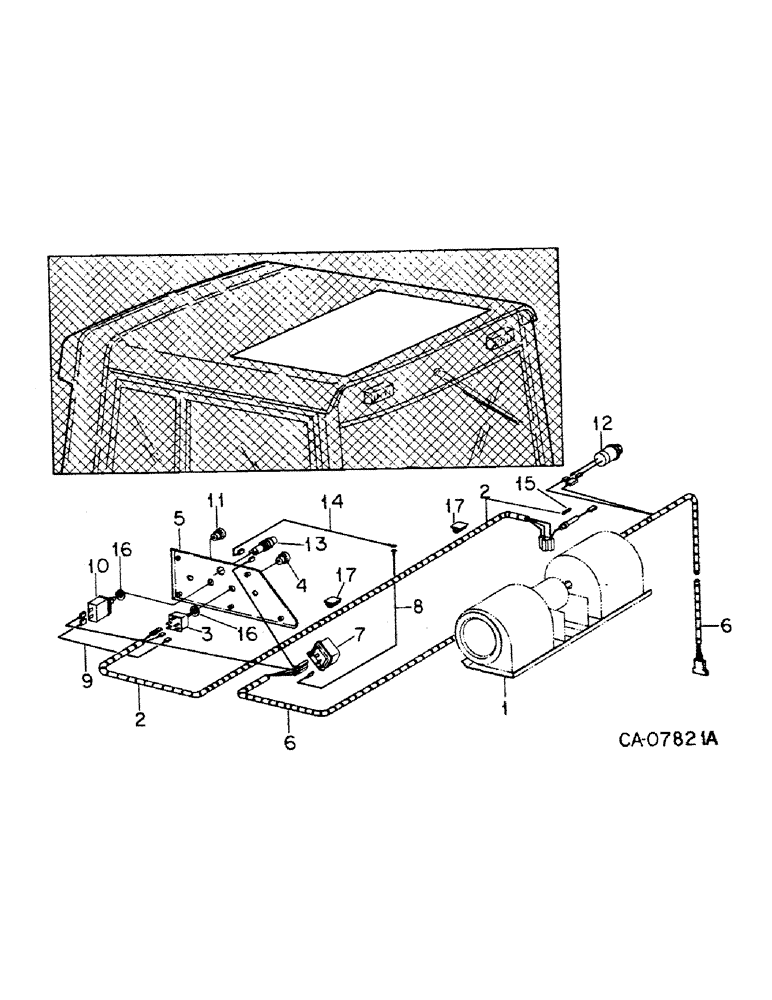

Запчасти Case IH 5488 (08-25) - ELECTRICAL, CONTROL CENTER TEMPERATURE CONTROLS AND CONNECTIONS, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

1

BLOWER ASSY, pressurizer, Refer to evaporator-heater core, blower and related parts, Grp 13

1шт.

2

83829C1

HARNESS

ASSY, blower motor, Replaces 1255875C1, Includes: Ref. 15

1шт.

3

168822C2

SWITCH

pressurizer blower

1шт.

109311H

JAM NUT

7/16-28 hex face

1шт.

4

111282C1

KNOB

blower control

1шт.

5

111400C1

PANEL

control trim, A/C

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdc tap

5шт.

6

1262093C1

HARNESS

ASSY, air conditioner

1шт.

169850C1

CLIP

harness

2шт.

7

437882C1

RELAY

A/C lockout

1шт.

8

111263C3

CABLE

ASSY, ground lockout relay

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 crb c/r s/d tap

1шт.

9

111229C1

CABLE

ASSY, blower-thermostat switch

1шт.

10

109268C2

SWITCH

blower-thermostat

1шт.

11

111282C1

KNOB

cooling control

1шт.

12

111267C3

SWITCH

low pressure

1шт.

13

109369C91

LIGHT ASSY.

LIGHT ASSY, A/C indicator, Only serviceable Ref. are

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-ZV trade #1815

1шт.

14

111263C3

CABLE

ASSY, ground indicator light

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 crb c/r s/d tap

1шт.

15

25471R1

FUSE,20 Amp, Type 8AG

8AG 20 amperes

1шт.

16

109311H

JAM NUT

7/16-28 hex. face, blower and thermostat switches

2шт.

17

169850C1

CLIP

cable harness, self adhesive type

2шт.
