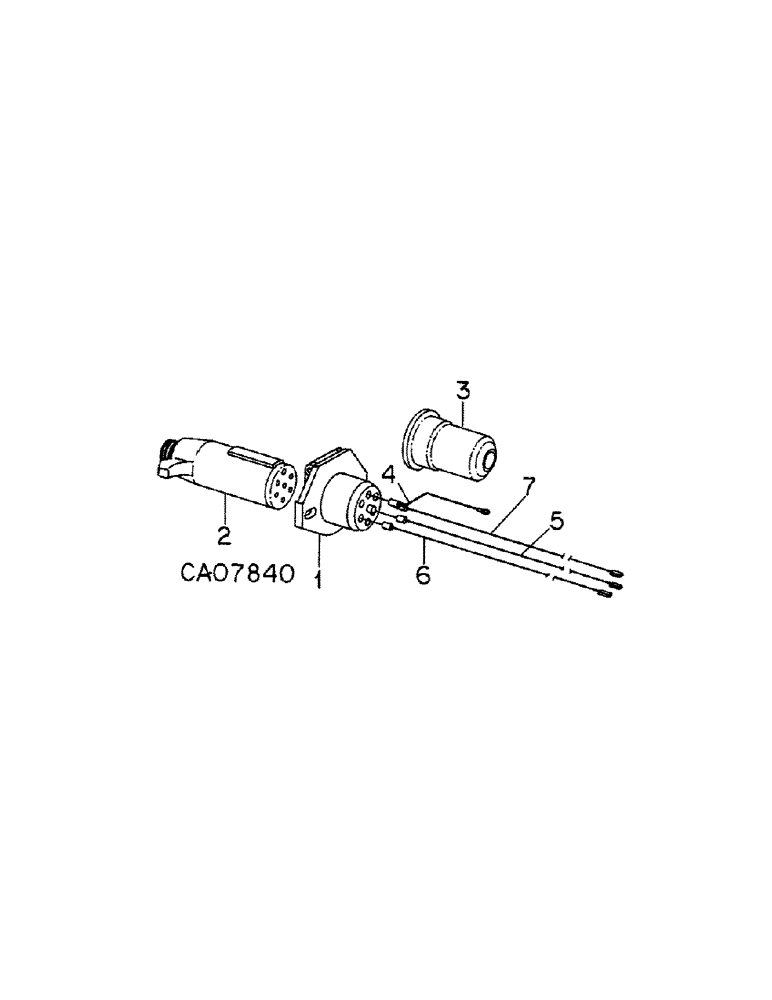

Запчасти Case IH 5488 (08-24[A]) - ELECTRICAL, SEVEN PIN CONNECTOR AND CONNECTIONS (06) - ELECTRICAL

1

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, seven pole flap lock connector

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

M8 class 8

2шт.

2

121646C1

TERMINAL CONNECTOR,Female

PLUG, connector seven contact

1шт.

3

481849C1

PROTECTIVE COVER

COVER, seven pole socket rubber

1шт.

4

104388C2

CABLE

ASSY, seven pin connector to ground, white

1шт.

5

64525C1

CABLE

ASSY, RH warning light to seven pin connector, lt green

1шт.

6

64526C1

CABLE

ASSY, LH warning light to seven pin connector, yellow

1шт.

7

1252544C1

CABLE

ASSY, tail light to seven pin connector, brown

1шт.
