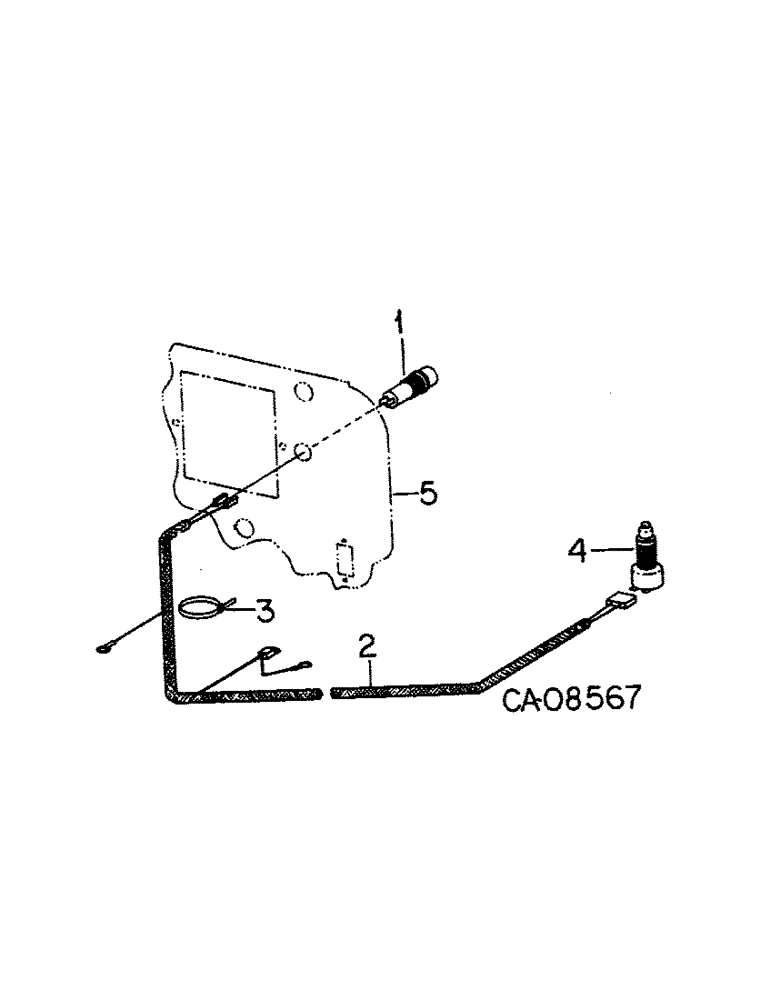

Запчасти Case IH 5488 (08-23) - ELECTRICAL, DYNAMIC BRAKE INDICATOR LIGHT WIRING, TRACTORS WITH DYNAMIC BRAKE ATTACHMENT (06) - ELECTRICAL

1

109369C91

LIGHT ASSY.

LIGHT ASSY, dynamic brake indicator, Only serviceable Ref. is

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-ZV

1шт.

2

245497C2

HARNESS

ASSY, indicator, Serial Range: light-switch

1шт.

3

289862C1

CABLE TIE,3/16" x 7"

STRAP, harness lock

3шт.

4

404352R1

SWITCH

ASSY, warning light act.

1шт.

5

PANEL, instrument, Refer to group 11

1шт.

on Figure1 of group 4 master brakes 1264584C91 package reports for one will brake switch the newer version

1шт.

also see SB 007 87

1шт.
