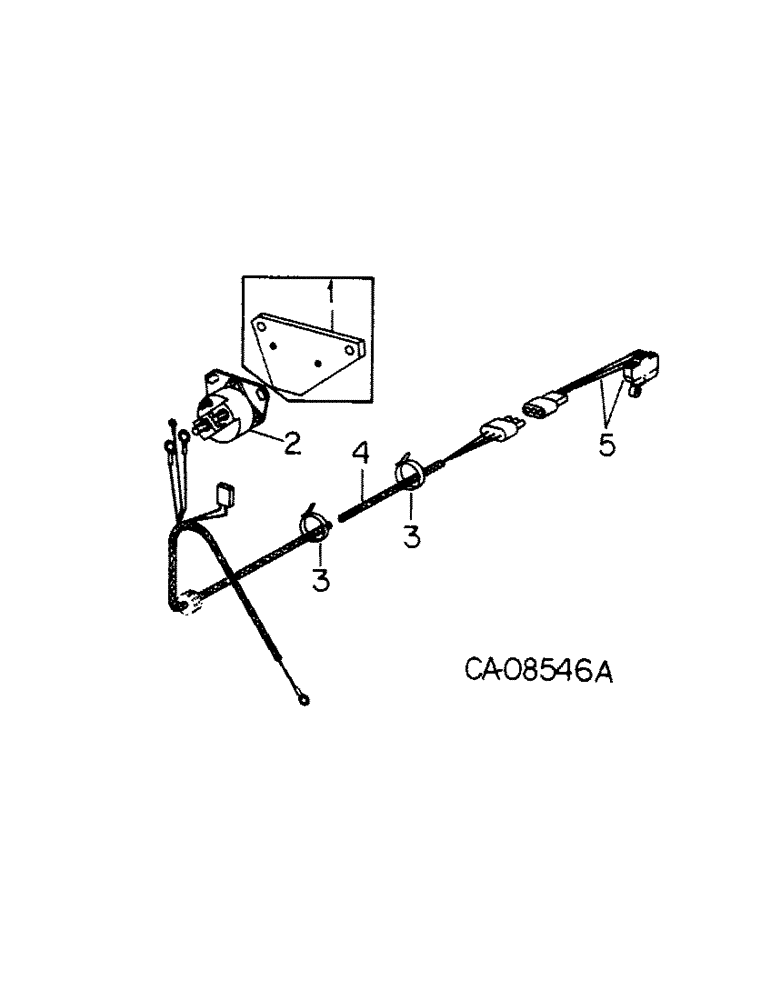

Запчасти Case IH 5488 (08-23[A]) - ELECTRICAL, NEUTRAL START ADAPTER (06) - ELECTRICAL

1

1281566C2

PLATE

solenoid support, For firewall panels, 139350C1 - 139350C6

1шт.

160508

SCREW,Cross Pan Hd, 1/4" - 20 x 3/8"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

2

121613C1

IGNITION SWITCH

SWITCH ASSY, solenoid

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 x 12.5 x 1.6 mm pln

2шт.

3

289862C1

CABLE TIE,3/16" x 7"

STRAP, adapter harness tie

1шт.

4

245412C1

HARNESS

ASSY, neutral start adapter, 5088 w/serial nos 6016 to 6244, 5288 w/serial nos, Serial Range: 4087-4211

1шт.

5

245982C91

SWITCH

KIT, neutral start switch, Replaces 245413C2, Consists of switch assy.

1шт.

SWITCH ASSY, neutral start

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

1шт.

INSTRUCTIONS, installing (NSS)

1шт.

31198R1

SCREW,Hex Wash Hd, M3 x 30

M3 x 30 class 4.8 hex hd znd

2шт.

30272R1

NUT,M3, Cl 5

M3 class 5

2шт.

30273R1

LOCK WASHER,M3

WASHER, 3 mm lock

1шт.

30239R1

WASHER,M3

3.2 x 7 x 0.5 mm

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

1264584C91

PACKAGE

1шт.

on Figure1 of group 4 master brakes 1264584C91 package reports for one will brake switch the newer version

1шт.
